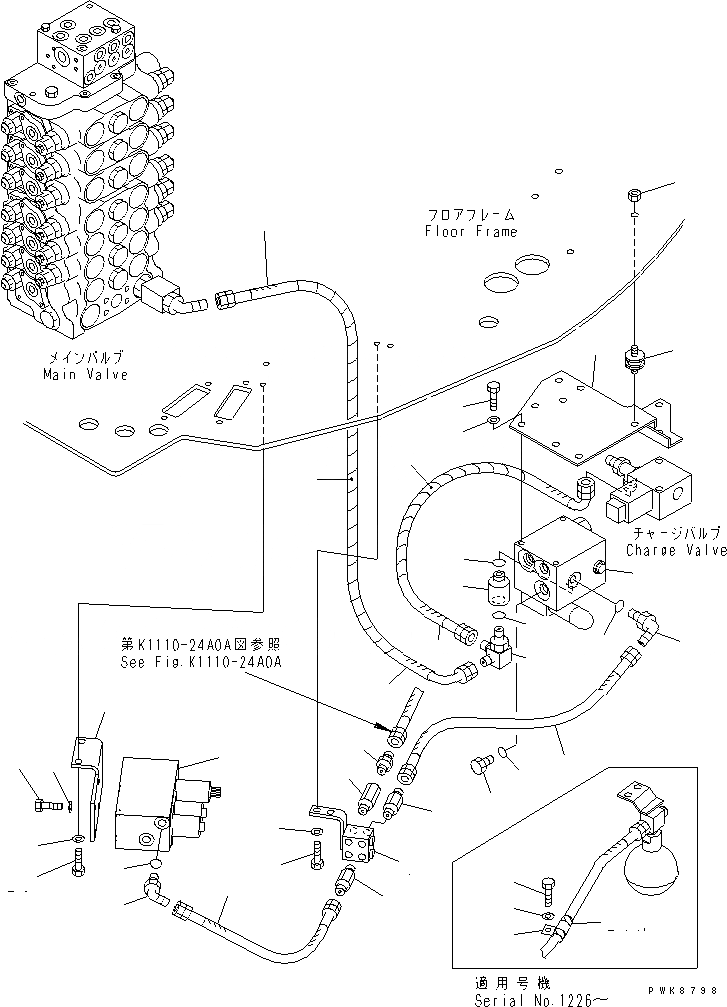

Запчасти Komatsu PW128UU-1 ОСНОВН. КОНСТРУКЦИЯ (P.P.C. БАК ЛИНИЯ)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

21J-62-13110

BLOCK

2

01010-81020

BOLT

3

01643-31032

WASHER

4

418-878-1480

NIPPLE

5

203-62-52390

HOSE

6

07235-10210

ELBOW

7

07002-11423

O-RING

8

418-878-1480

NIPPLE

9

07102-00204

HOSE

10

07235-10210

ELBOW

11

07002-11423

O-RING

12

170-21-11190

NIPPLE

13

203-62-51710

NIPPLE

14

14X-43-14760

ELBOW

15

07002-12034

O-RING

16

21J-62-18340

JOINT

17

07002-12034

O-RING

18

07626-00418

HOSE

|18

21J-62-16620

HOSE

18A

08210-01812

SPIRAL TUBE

|18A

08210-01815

SPIRAL TUBE

19

21J-62-17950

HOSE

20

08210-01803

SPIRAL TUBE

21

21J-60-13111

SOLENOID VALVE ASS'Y

21A

08017-31003

CONDUIT

21B

04434-51410

CLIP

21C

01010-81020

BOLT

21D

01643-31032

WASHER

22

01010-81020

BOLT

23

01643-31032

WASHER

24

21J-62-13120

BRACKET

25

01010-81020

BOLT

26

01643-31032

WASHER

27

21J-60-13123

VALVE ASS'Y,CHARGE

28

07040-12012

PLUG

29

07002-12034

O-RING

30

22T-56-12340

CUSHION

31

01580-11008

NUT

32

01010-81020

BOLT

33

01643-31032

WASHER

34

21J-62-13671

BRACKET
