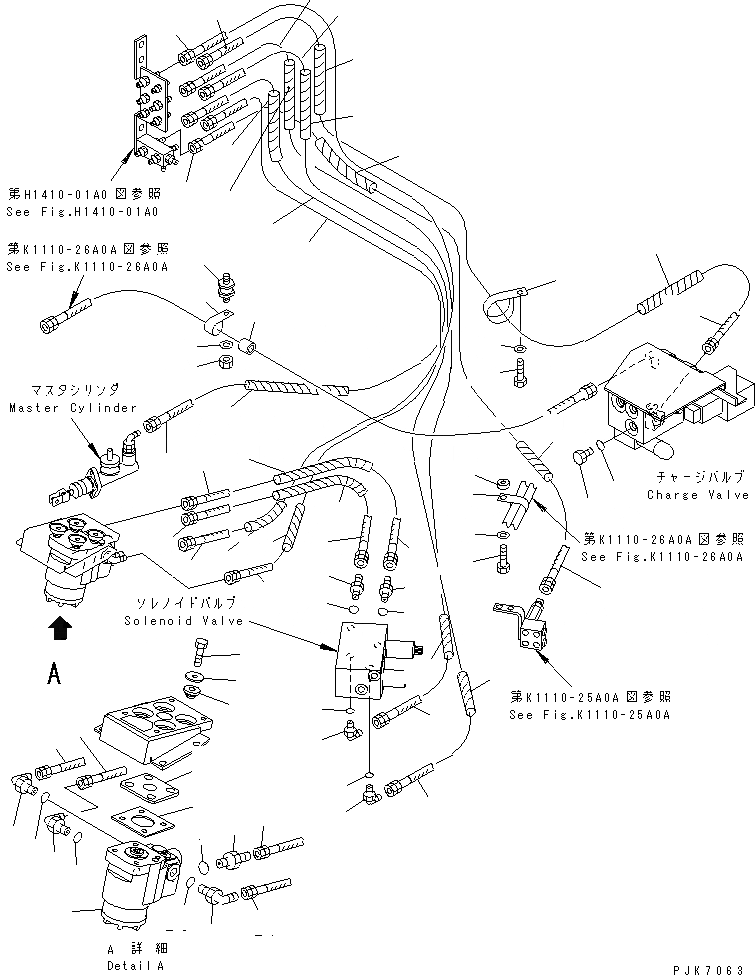

Запчасти Komatsu PW128UU-1 ОСНОВН. КОНСТРУКЦИЯ (РУЛЕВ. УПРАВЛЕНИЕ ЛИНИЯ)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

07086-00521

HOSE

2

08210-02918

SPIRAL TUBE

3

15R-62-18150

NIPPLE

4

07000-12018

O-RING

5

363-62-31210

ELBOW

6

07000-12014

O-RING

7

07086-00307

HOSE

8

08210-01803

SPIRAL TUBE

9

07086-00306

HOSE

10

08210-01803

SPIRAL TUBE

11

07230-20315

UNION

12

07002-12034

O-RING

13

07086-00319

HOSE,GREEN-WHITE

14

07086-00320

HOSE,GREEN-BLUE

15

21J-62-17530

HOSE,RED

16

07102-20319

HOSE,BROWN-WHITE

17

21J-62-18370

HOSE,RED-WHITE

18

08210-01803

SPIRAL TUBE

19

08210-01202

SPIRAL TUBE

20

08210-01802

SPIRAL TUBE

21

08210-01810

SPIRAL TUBE

22

08210-01210

SPIRAL TUBE

23

07235-10315

ELBOW

24

07002-12034

O-RING

25

363-62-31210

ELBOW

26

07000-12014

O-RING

27

07086-00320

HOSE

28

08210-01819

SPIRAL TUBE

29

07040-12012

PLUG

30

07002-12034

O-RING

31

21J-62-17190

CLIP

32

581-95-19870

BOSS

33

01010-81025

BOLT

34

01643-31032

WASHER

35

21J-62-17180

CLIP

36

01010-81020

BOLT

37

01643-31032

WASHER

38

04434-53211

CLIP

39

07095-20523

CUSHION

40

22T-56-12340

CUSHION

41

01580-11008

NUT

42

01643-31032

WASHER

43

21J-60-13131

VALVE ASS'Y,STEERING

44

01010-81035

BOLT

45

417-43-16210

WASHER

46

421-62-23350

CUSHION

47

22T-40-11270

CUSHION

48

21J-40-13190

PLATE
