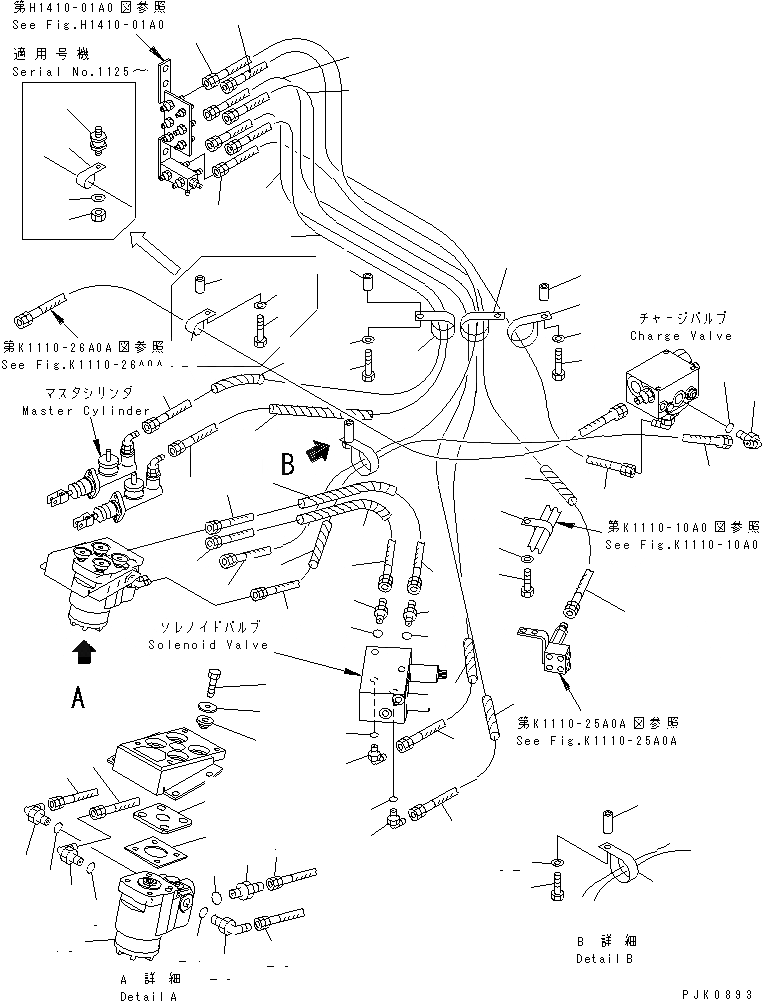

Запчасти Komatsu PW128UU-1 ОСНОВН. КОНСТРУКЦИЯ (РУЛЕВ. УПРАВЛЕНИЕ ЛИНИЯ)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

07086-00521

HOSE

2

15R-62-18150

NIPPLE

3

07000-12018

O-RING

4

363-62-31210

ELBOW

5

07000-12014

O-RING

6

07086-00307

HOSE

7

08210-01803

SPIRAL TUBE

8

07086-00306

HOSE

9

08210-01803

SPIRAL TUBE

10

07230-20315

UNION

11

07002-12034

O-RING

12

07086-00319

HOSE,GREEN-WHITE

13

07086-00320

HOSE,GREEN-BLUE

14

21J-62-17530

HOSE,RED

15

07102-20218

HOSE,BLUE

16

07102-20319

HOSE,WHITE

17

07123-00216

HOSE,RED-WHITE

18

08210-01803

SPIRAL TUBE

19

08210-01202

SPIRAL TUBE

20

08210-01802

SPIRAL TUBE

21

07235-10315

ELBOW

22

07002-12034

O-RING

23

363-62-31210

ELBOW

24

07000-12014

O-RING

25

07102-20310

HOSE

26

08210-01805

SPIRAL TUBE

27

07235-10315

ELBOW

28

07002-12034

O-RING

29

208-62-38370

CLIP

30

195-01-33980

SPACER

31

01010-81070

BOLT

|31

01010-81020

BOLT

32

01643-31032

WASHER

33

113-899-7950

CLIP

34

01010-81020

BOLT

35

01643-31032

WASHER

36

208-62-38370

CLIP

37

6166-11-5390

SPACER

38

01010-81050

BOLT

39

01643-31032

WASHER

40

21T-06-11950

CLIP

41

6166-11-5390

SPACER

42

01010-81050

BOLT

43

01643-31032

WASHER

44

04434-52711

CLIP

|44

04434-52511

CLIP

45

22T-56-12340

CUSHION

|45

6166-11-5390

SPACER

46

01580-11008

NUT

|46

01010-81050

BOLT

47

01643-31032

WASHER

48

21J-60-13131

VALVE ASS'Y,STEERING (SEE FIG.Y1689-01A0)

49

01010-81035

BOLT

50

417-43-16210

WASHER

51

421-62-23350

CUSHION

52

22T-40-11270

CUSHION

53

21J-40-13190

PLATE
