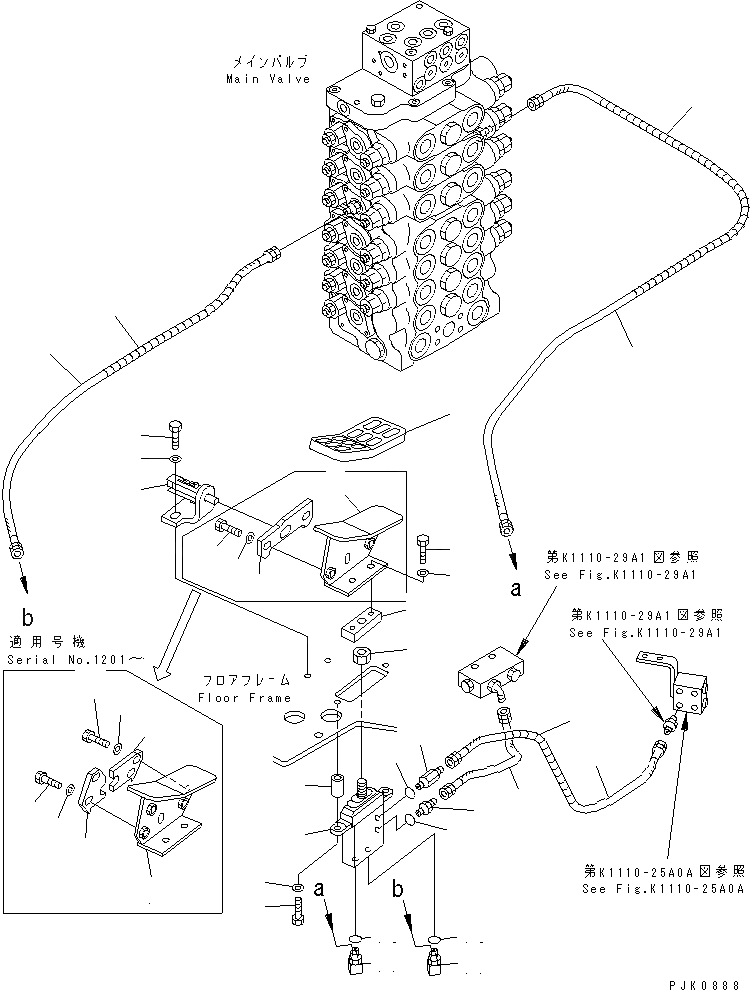

Запчасти Komatsu PW128UU-1 ОСНОВН. КОНСТРУКЦИЯ (-ПЕДАЛЬ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

6166-11-5390

SPACER

2

702-16-01270

PILOT VALVE

|2

702-16-01230

PILOT VALVE

3

01010-81055

BOLT

4

20F-12-11120

WASHER

|4

01643-31032

WASHER

5

01583-11408

NUT

6

203-43-61520

SEAT

7

21J-43-13630

PEDAL

|7

203-43-61510

PEDAL

8

01010-80820

BOLT

9

01643-30823

WASHER

10

14X-43-12110

PEDAL CAP,PEDAL

11

21J-43-13610

PLATE

|11

20Y-62-25380

PLATE

11A

21J-43-13620

PLATE

12

01010-81030

BOLT

|12

01010-81030

BOLT

13

01643-31032

WASHER

|13

01643-31032

WASHER

14

20Y-62-25360

BRACKET

15

01010-81030

BOLT

16

01643-31032

WASHER

17

21P-62-11590

ELBOW

18

07000-02011

O-RING

19

20U-62-22280

NIPPLE

20

07000-02011

O-RING

21

20N-62-31250

NIPPLE

22

07000-02011

O-RING

23

07102-20203

HOSE

24

07102-20205

HOSE

25

08210-01202

SPIRAL TUBE

26

07102-20227

HOSE,YELLOW-WHITE

27

07102-20232

HOSE,YELLOW-BLUE

28

08210-01216

SPIRAL TUBE

29

08210-01221

SPIRAL TUBE
