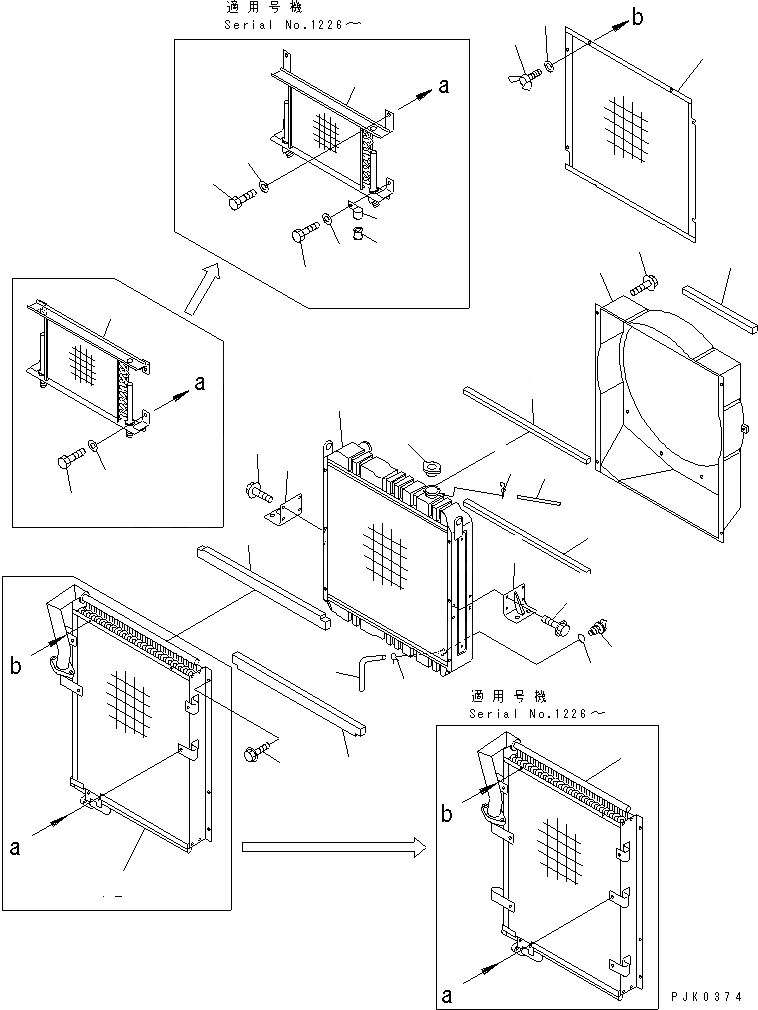

Запчасти Komatsu PW128UU-1 ОХЛАЖД-Е (РАДИАТОР И МАСЛООХЛАДИТЕЛЬ) СИСТЕМА ОХЛАЖДЕНИЯ

1

21J-03-11122

CORE ASS'Y

|1

21J-03-11121

CORE ASS'Y

2

203-03-41280

CAP

3

205-03-62660

PLUG

4

07000-01007

O-RING

5

203-03-41530

SHEET

6

203-03-56250

SHEET

7

20Y-03-11330

CLIP

8

205-03-71230

HOSE

|8

203-03-41410

HOSE

9

21J-03-11151

BRACKET,L.H.

10

21J-03-11340

BRACKET,R.H.

11

01435-20814

BOLT

12

21J-03-11135

OIL COOLER,HYDRAULIC OIL

|12

21J-03-11134

OIL COOLER,HYDRAULIC OIL

|12

21J-03-11132

OIL COOLER,HYDRAULIC OIL

13

01435-20814

BOLT

14

21J-03-11333

SHROUD

|14

21J-03-11331

SHROUD

15

01435-20814

BOLT

|15

01435-20814

BOLT

16

21J-03-11740

COOLER,TRANSMISSION OIL

|16

113-49-41110

COOLER,TRANSMISSION OIL

17

01010-81020

BOLT

18

01643-31032

WASHER

19

20S-03-21130

HOSE

20

206-03-43340

CLIP

21

21J-03-11352

NET

|21

21J-03-11351

NET

22

01434-00616

BOLT¤ WING,WING

23

01643-30623

WASHER

24

21J-03-11470

SEAL

25

04434-52511

CLIP

26

07095-20318

CUSHION

27

01010-81020

BOLT

28

01643-31032

WASHER
