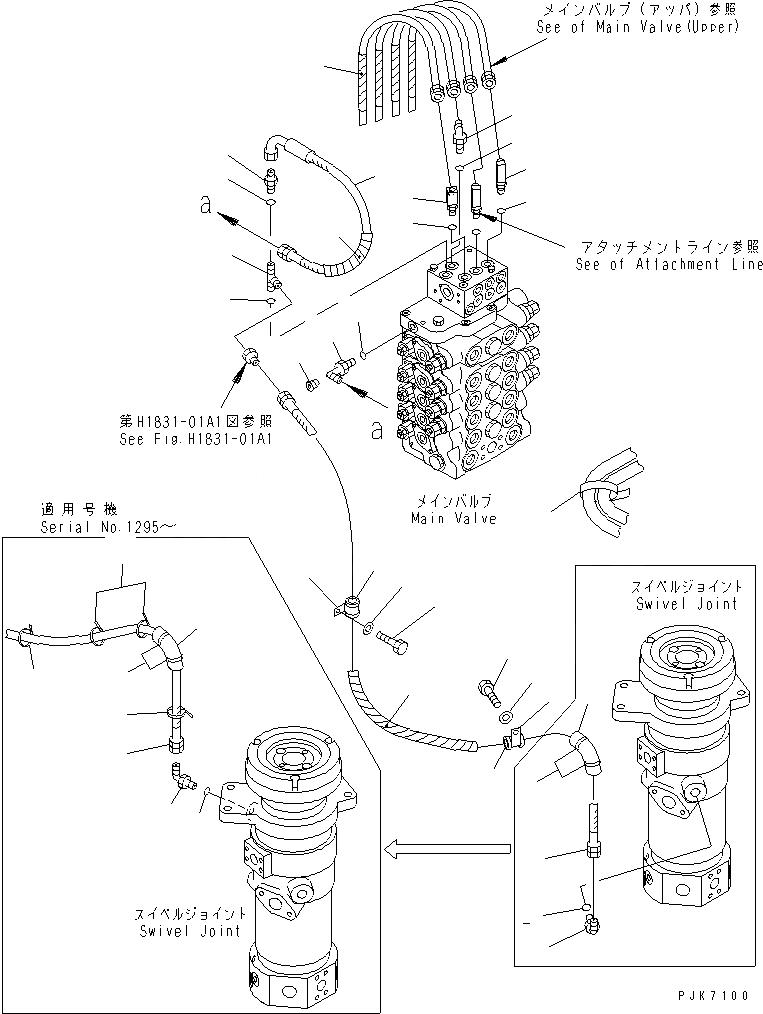

Запчасти Komatsu PW128UU-1 L.S. ЛИНИЯ (ВЕРХН.) (ДЛЯ ¤ КЛАПАН) ГИДРАВЛИКА

1

07235-10210

ELBOW

2

07002-21423

O-RING

|2

07002-11423

O-RING

3

21J-62-18360

HOSE

|3

07071-00221

HOSE

3A

08034-00536

BAND

3B

08210-01823

SPIRAL TUBE

|3B

08210-01820

SPIRAL TUBE

|3B

08210-01203

SPIRAL TUBE

4

07095-20420

CUSHION

|4

07095-20213

CUSHION

5

04434-52712

CLIP

|5

04434-51912

CLIP

|5

04434-51512

CLIP

6

01010-81220

BOLT

7

01643-31232

WASHER

8

203-62-41160

COVER

9

08034-00519

BAND

10

08034-00536

BAND

11

20Y-62-25821

ELBOW

|11

203-62-58270

ELBOW

12

07043-70108

PLUG

13

21J-62-15420

ELBOW

|13

21J-62-15820

ELBOW

14

07235-10210

ELBOW

15

07002-21423

O-RING

16

21J-62-12890

HOSE¤ 370MM

17

08210-01803

SPIRAL TUBE

|17

08210-01201

SPIRAL TUBE

18

21J-62-17110

ELBOW

|18

208-62-18190

ELBOW

19

07002-21423

O-RING

20

208-62-17550

TEE

|20

21J-62-15420

ELBOW

21

07002-21423

O-RING

22

08210-01802

SPIRAL TUBE

23

07002-11423

O-RING

24

203-62-62810

NIPPLE
