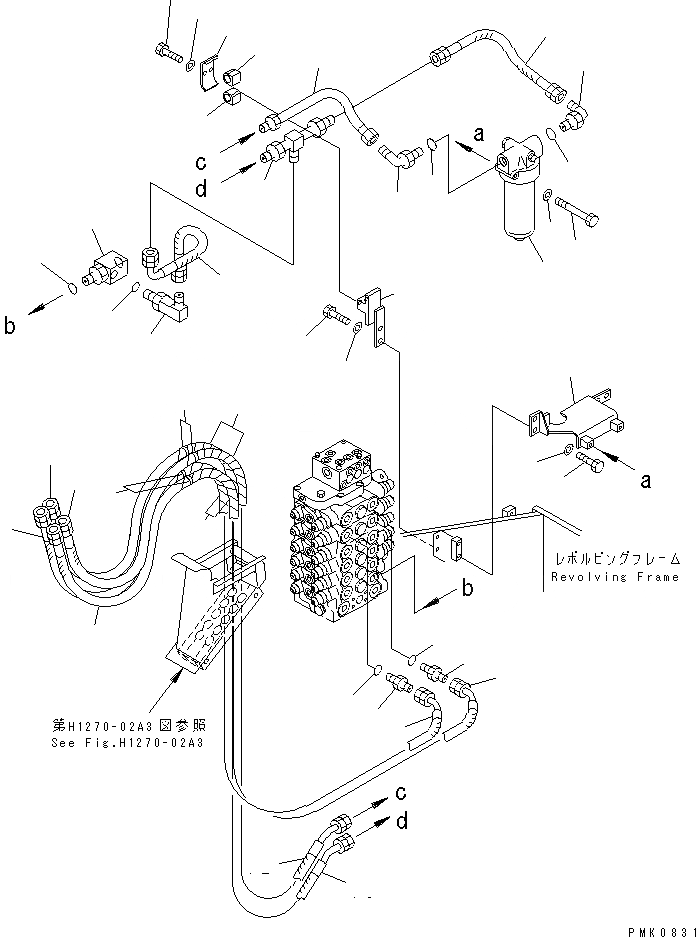

Запчасти Komatsu PW128UU-1 НАВЕСНОЕ ОБОРУД-Е (ТРУБЫ И ФИЛЬТР.) (-ACTUATER НАВЕСН. ОБОРУД) (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ)(№-) ГИДРАВЛИКА

1

07230-20628

UNION

2

07002-12434

O-RING

3

21J-973-1440

HOSE Z030001A1

4

21J-973-1450

HOSE Z030001A1

5

08034-20823

BAND

6

08210-02905

SPIRAL TUBE

7

203-973-5810

FILTER ASS'Y

|7

203-973-5820

ELEMENT ASS'Y

8

01010-81095

BOLT

9

01643-31032

WASHER

10

21J-973-1460

HOSE

11

08210-02905

SPIRAL TUBE

12

21J-973-1470

HOSE

13

08034-20823

BAND

14

21J-973-1390

TUBE

15

07102-20604

HOSE

16

21J-973-1360

TUBE

17

21J-973-1350

BRACKET

18

01010-81230

BOLT

19

01643-31232

WASHER

20

203-70-53381

PLATE

21

21K-62-35270

CUSHION

22

01010-81030

BOLT

23

01643-31032

WASHER

24

21X-62-21750

HOSE

25

207-62-32650

ELBOW

26

07002-12434

O-RING

27

21J-973-1411

UNION

28

07002-13334

O-RING

29

113-62-21240

ELBOW

30

07002-13334

O-RING

31

113-62-21240

ELBOW

32

07002-03334

O-RING

33

21J-973-1420

BRACKET

34

01010-81230

BOLT

35

01643-31232

WASHER
