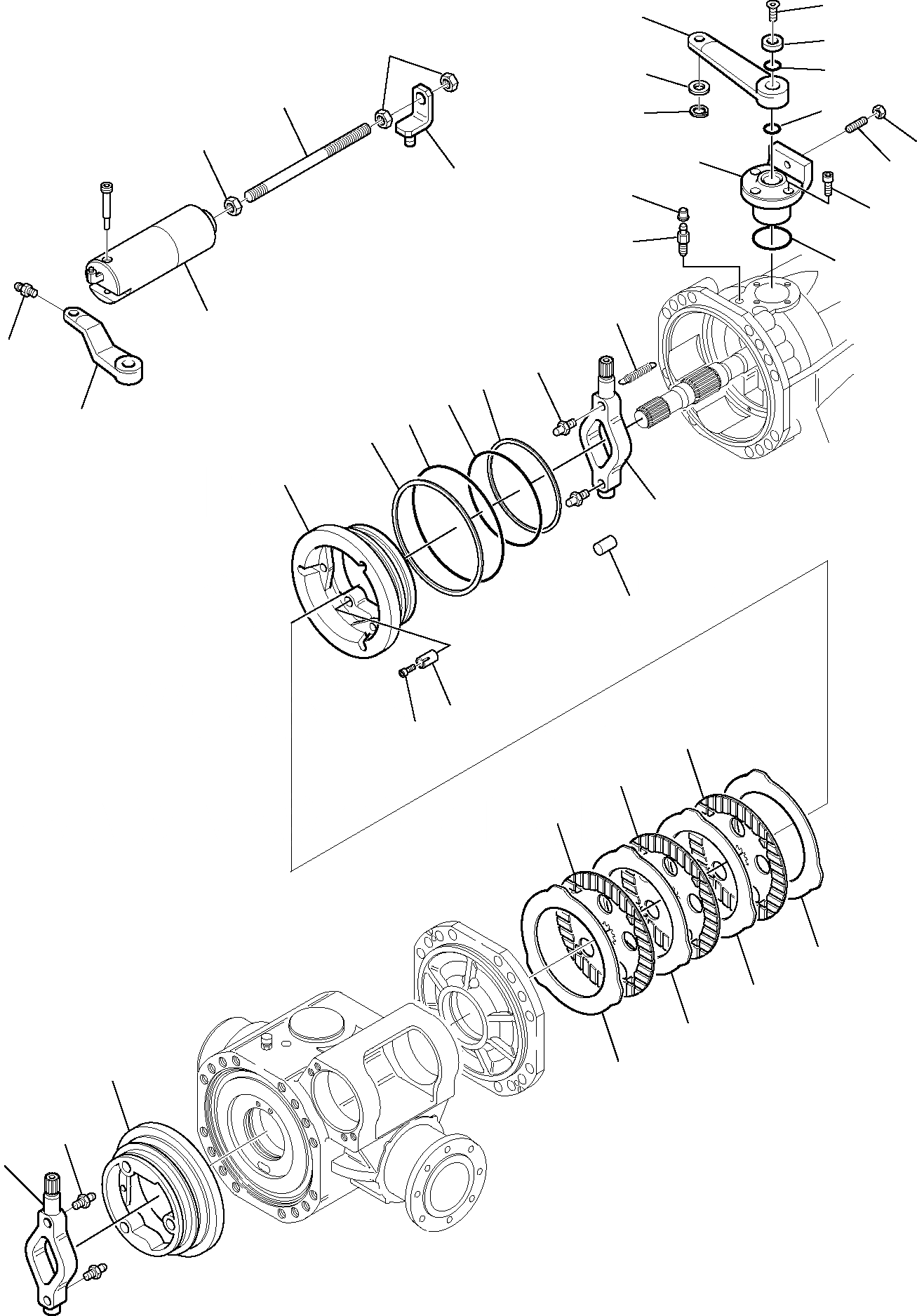

Запчасти Komatsu PW110R-1 ЗАДН. МОСТ (7/8) ХОДОВАЯ

\0

226-22-11001

REAR AXLE, ASSY.

1

226-22-12170

BRAKE CYLINDER, ASSY.

\1

21D-22-11310

GASKET KIT

2

226-22-12180

NUT

3

226-22-12190

PUSH-ROD

4

22E-22-12320

SUPPORT

5

22E-22-12350

SPACER

6

22E-22-12340

RING

7

226-22-12160

LINK

8

22E-22-12360

FITTING

9

226-22-12010

LINK

10

22E-22-11960

O-RING

11

22E-22-11980

WASHER

11

21D-22-11220

SPACER

12

22E-22-11990

SCREW

13

226-22-11981

SLEEVE

14

226-22-11970

SCREW

15

226-22-11990

DOWEL

16

21D-22-11260

NUT

17

22E-22-12410

O-RING

18

21D-23-12490

SCREW

19

22E-23-11990

PLUG

20

226-22-12090

LINK

21

226-22-11960

LINK

22

21D-22-11290

PUSHROD

23

226-22-12110

SPRING

24

226-22-12080

PIN

25

226-22-12120

RING, WEAR

26

226-22-12130

O-RING

27

226-22-12070

O-RING

28

226-22-12060

RING, WEAR

29

226-22-12050

PISTON

30

226-22-12150

PISTON

31

226-22-12040

SPRING

32

226-22-12030

CHECK BOLT

33

226-22-12020

BRAKE DISK, INTERMEDIATE

34

226-22-12140

BRAKE DISK

35

226-22-12250

O-RING
