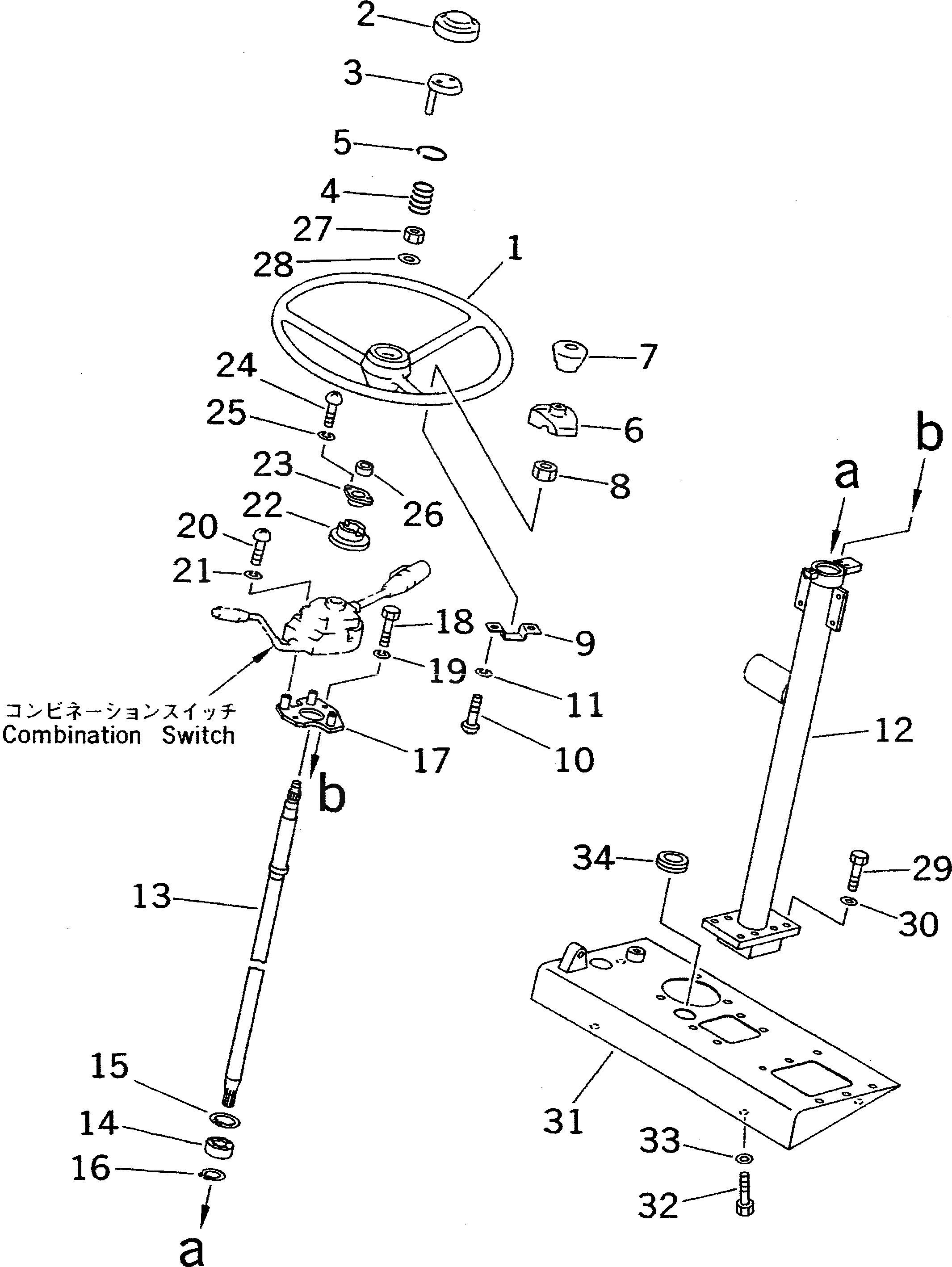

Запчасти Komatsu PW100S-3B РУЛЕВОЕ КОЛЕСО (ЖЕСТК.) (ROAD CONSTRUCTION СПЕЦ-Я.)(№8-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

|1

22W-40-11200

HANDLE ASS'Y

1

22W-40-11210

HANDLE

2

22W-40-11220

BUTTON,HORN

3

22W-40-11230

CONTACT

4

22W-40-11240

SPRING

5

22W-40-11250

LOCK,SPRING

|6

22W-40-11300

KNOB ASS'Y

6

22W-40-11311

STAY

7

22W-40-11321

KNOB

8

01580-11008

NUT

9

22W-40-11340

PLATE

10

01220-40625

SCREW

11

01602-20619

WASHER,SPRING

12

20D-40-48110

COLUMN

13

20D-40-48120

SHAFT

14

06006-06005

BEARING

15

04065-04718

RING,SNAP

16

04064-02512

RING,SNAP

17

22W-40-11270

BRACKET

18

01010-50616

BOLT

19

01602-20619

WASHER,SPRING

20

01220-40516

SCREW

21

01601-20513

WASHER,SPRING

22

22W-40-11280

RING

23

22W-40-11290

BUSHING

24

01220-40408

SCREW

25

01601-20410

WASHER,SPRING

26

23S-40-21370

COLLAR

27

01582-11210

NUT

28

01643-31232

WASHER

29

01010-51030

BOLT

30

01643-31032

WASHER

31

20D-40-48210

PLATE

32

01010-51030

BOLT

33

01643-31032

WASHER

34

08037-03620

GROMMET
