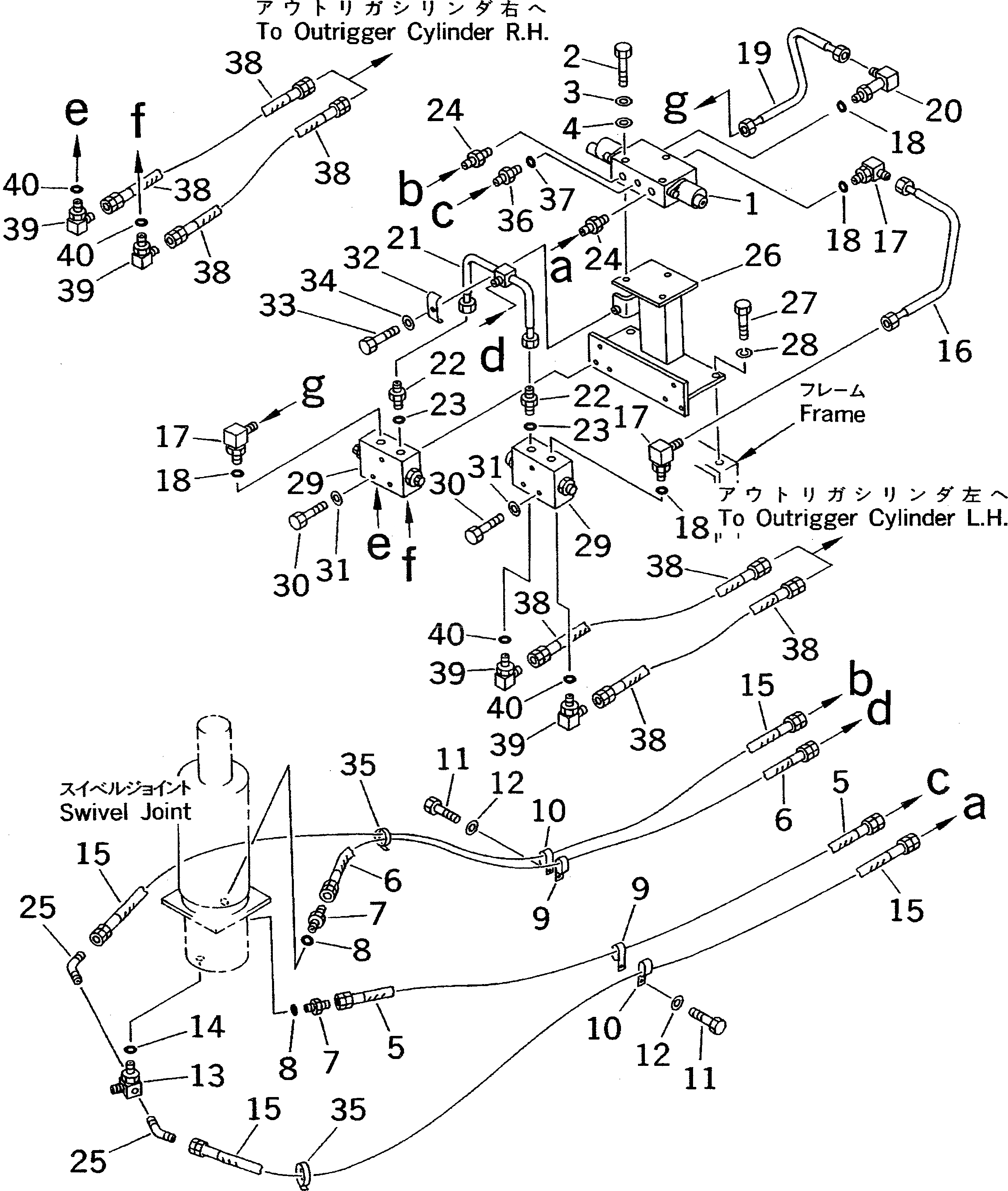

Запчасти Komatsu PW100S-3B ОПОРА ГИДРОЛИНИЯ (НИЖН.) (ЛЕВ.¤ ПРАВ. INDEPENDENT MOVEMENT)(№-) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

1

20D-60-41401

VALVE ASS'Y

2

01011-51065

BOLT

3

01641-21016

WASHER

4

01643-31032

WASHER

5

07096-00313

HOSE

6

07096-00314

HOSE

|6

07096-00313

HOSE

7

07230-20315

UNION

|7

07230-10315

UNION

8

07002-12034

O-RING

9

08036-02514

CLIP

10

08036-03014

CLIP

11

01010-51025

BOLT

12

01643-31032

WASHER

13

20D-62-43260

ELBOW

|13

20D-62-46310

ELBOW

14

07002-12034

O-RING

15

07102-20215

HOSE

16

20D-62-46330

TUBE

17

07235-10315

ELBOW

18

07002-12034

O-RING

19

20D-62-46340

TUBE

20

20R-62-11311

ELBOW

21

20D-62-48120

TUBE

22

07230-20315

UNION

23

07002-12034

O-RING

24

07238-00210

CONNECTOR

25

175-79-82560

ELBOW

26

20D-62-46320

BRACKET

27

01010-51025

BOLT

28

01602-21030

WASHER,SPRING

29

21J-60-13430

CHECK VALVE ASS'Y

|29

20S-60-12120

CHECK VALVE ASS'Y

30

01010-50860

BOLT

31

01643-30823

WASHER

32

130-62-71350

CLAMP

33

01010-51020

BOLT

34

01643-31032

WASHER

35

08034-00414

BAND

36

07230-20315

UNION

37

07002-12034

O-RING

38

07121-00304

HOSE

39

07235-10315

ELBOW

40

07002-12034

O-RING
