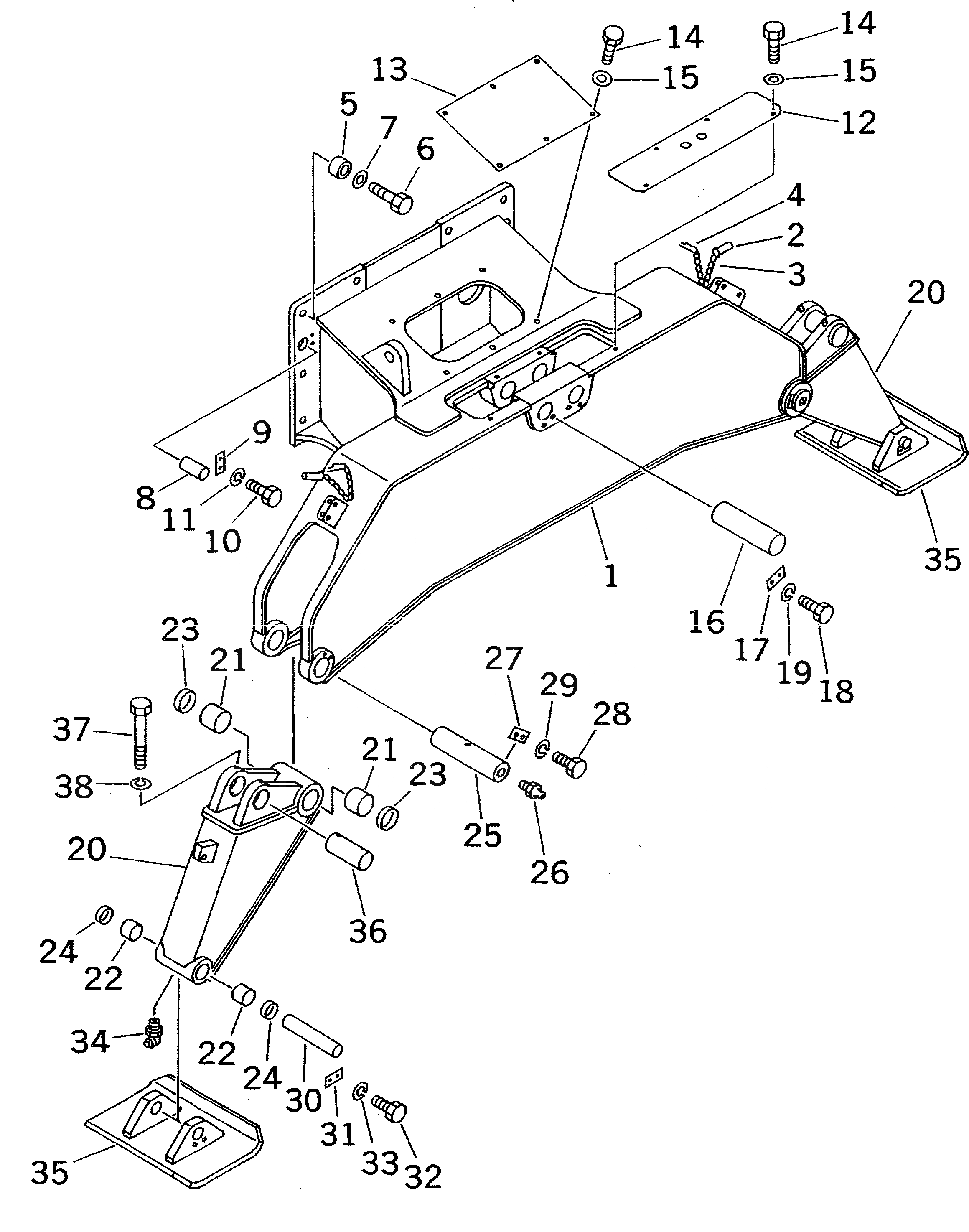

Запчасти Komatsu PW100S-3B ОПОРА(№-) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

1

20D-47-43120

FRAME

2

430-43-26520

PIN

3

130-75-17160

CHAIN

4

04052-01664

PIN,SNAP

5

287-46-11670

SPACER

6

01010-52490

BOLT

7

01643-32460

WASHER

8

20D-47-43130

PIN

9

04082-00212

LOCK

10

01010-51225

BOLT

11

01602-51236

WASHER,SPRING

12

20E-47-13130

COVER

13

20D-47-43140

COVER

14

01010-51020

BOLT

15

01643-31032

WASHER

16

20G-47-13140

PIN

17

04082-00514

LOCK

18

01010-51435

BOLT

19

01602-21442

WASHER,SPRING

20

20E-47-13120

FRAME

21

21K-70-11210

BUSHING

22

20G-62-13180

BUSHING

23

07145-00070

SEAL,DUST

24

07145-00045

SEAL,DUST

25

20G-47-13161

PIN

26

07020-00000

FITTING,GREASE

27

04082-00514

LOCK

28

01010-51435

BOLT

29

01602-21442

WASHER,SPRING

30

20G-47-13170

PIN

31

04082-00212

LOCK

32

01010-51225

BOLT

33

01602-21236

WASHER,SPRING

34

07020-00900

FITTING,GREASE

35

20G-47-13130

BRACKET

36

20G-47-13150

PIN

37

01011-51220

BOLT

38

01602-21236

WASHER,SPRING
