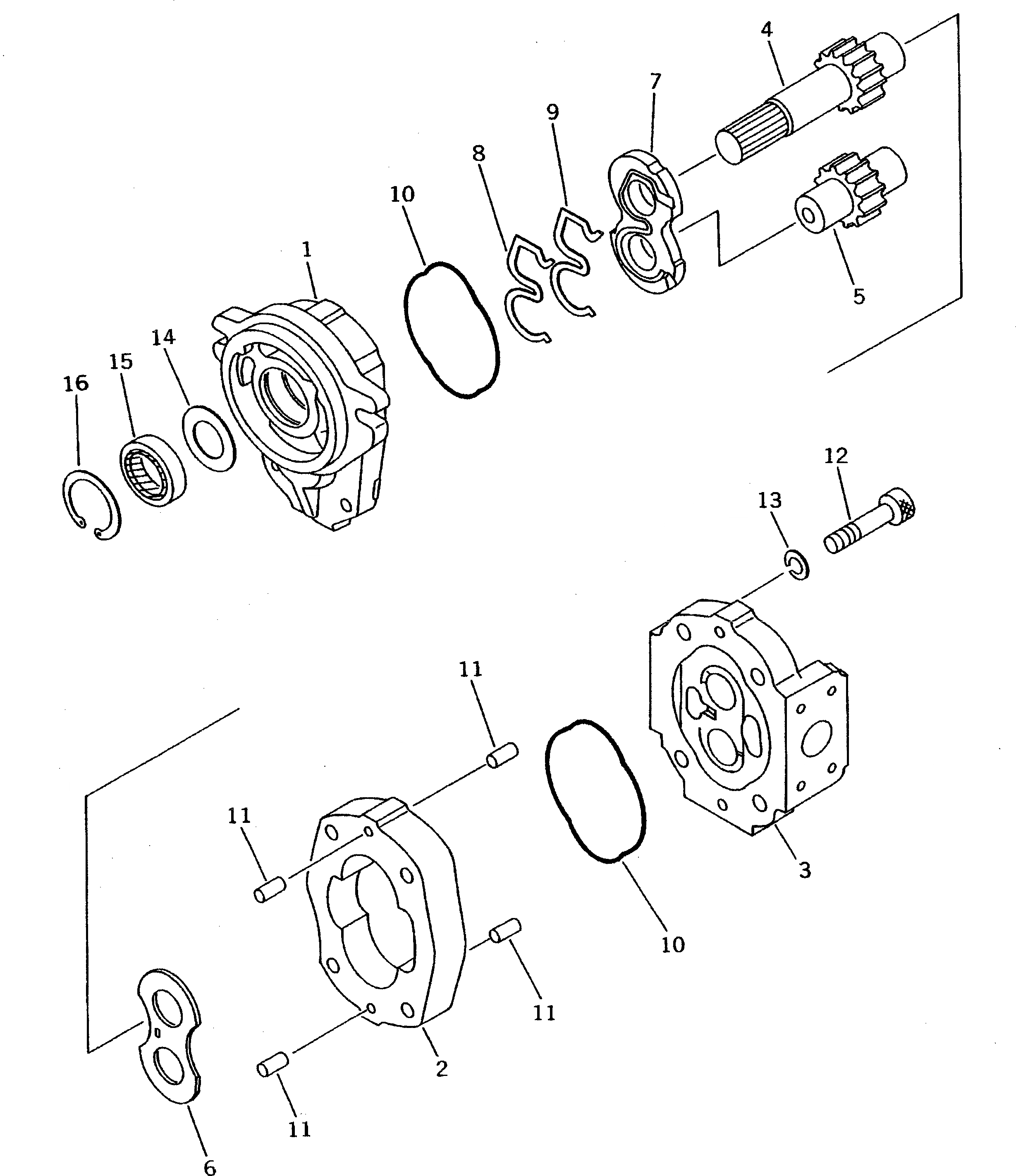

Запчасти Komatsu PW100S-3B НАСОС РУЛЕВ. УПРАВЛ-Я ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|1

705-61-23010

PUMP ASS'Y,(LAL-14)

1

BRACKET ASS'Y

|1

705-67-01350

BUSHING,PLANE

2

CASE,GEAR

3

COVER ASS'Y

|3

705-67-01350

BUSHING,PLANE

4

GEAR,DRIVE

5

GEAR,DRIVEN

6

705-67-01620

PLATE,SIDE

7

705-67-01610

PLATE,SIDE

8

705-67-01440

RING,BACK-UP

9

705-17-01470

SEAL,RING

10

705-17-01381

O-RING

11

04020-00820

PIN,DOWEL

12

01252-31060

BOLT

13

01602-21030

WASHER,SPRING

14

705-17-01870

PLATE

15

704-17-01810

SEAL,OIL

16

04065-03515

RING,SNAP
