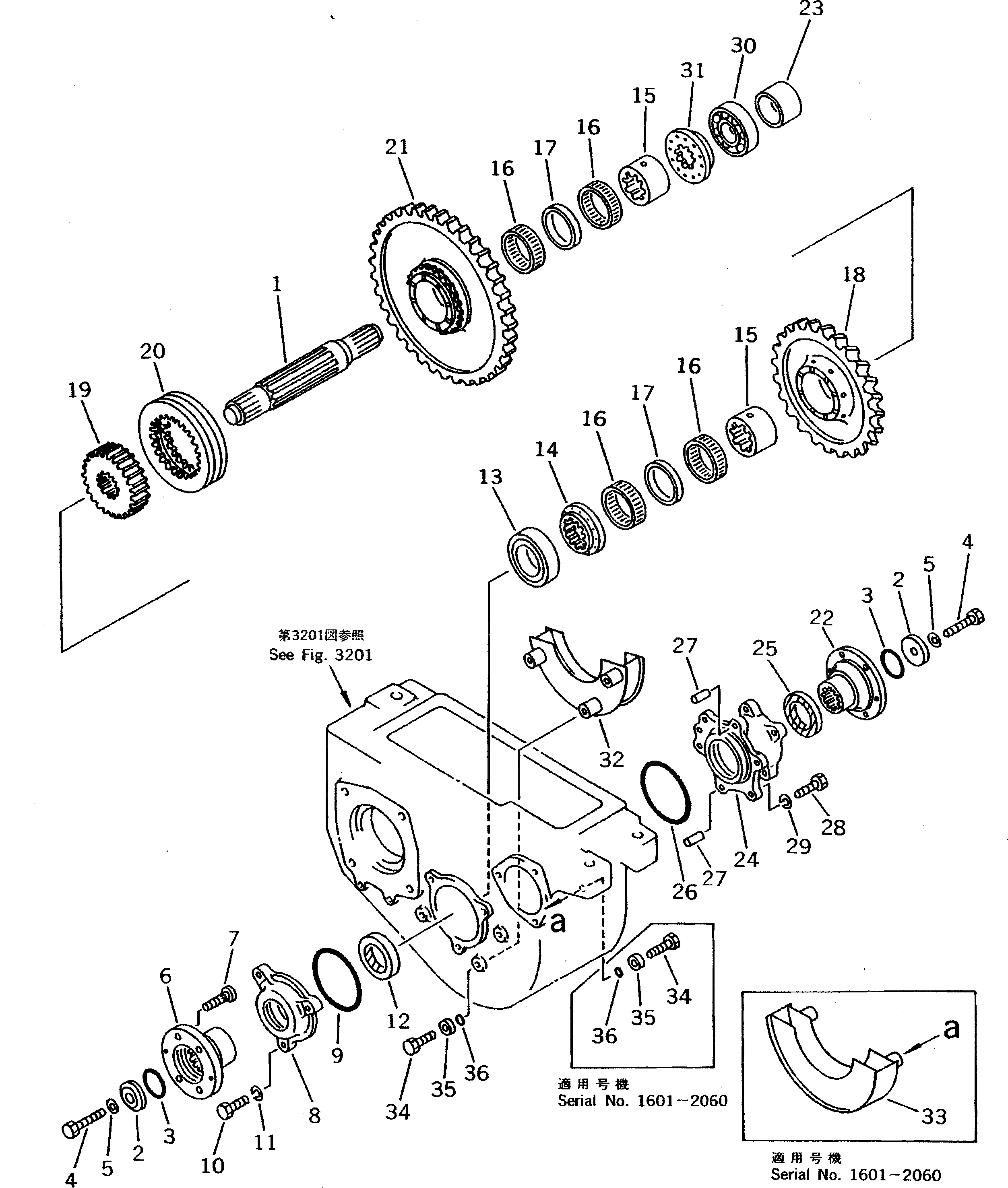

Запчасти Komatsu PW100S-3B ТРАНСМИССИЯ (/) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|1

20D-14-00023

TRANSMISSION ASS'Y

|1

20D-14-00022

TRANSMISSION ASS'Y

|1

20D-14-00021

TRANSMISSION ASS'Y

|1

20D-14-00020

TRANSMISSION ASS'Y

1

20D-14-41510

SHAFT

2

362-15-13270

PLATE

3

20B-09-17110

O-RING

4

01050-51295

BOLT

5

01643-31232

WASHER

6

20D-14-41610

COUPLING

|6

20B-14-22340

COUPLING

7

20G-14-14110

BOLT

8

20G-14-12260

CAGE

|8

20D-14-41250

CAGE

9

07000-02110

O-RING

|9

07000-02115

O-RING

10

01010-51030

BOLT

11

01602-21030

WASHER,SPRING

12

07012-10058

SEAL,OIL

13

06044-00309

BEARING,ROLLER

14

20G-14-12490

SLIDER

15

20G-14-12230

COLLAR

16

20B-09-11120

BEARING

17

20G-14-12270

COLLAR

18

20D-14-41380

GEAR

|18

20D-14-41320

GEAR

19

20G-14-12480

GEAR

20

20G-14-12220

GEAR

21

20D-14-41340

GEAR

22

20D-14-41620

COUPLING

|22

20B-14-11450

COUPLING

23

20B-14-22310

COLLAR

24

20G-14-12280

CAGE

|24

20D-14-41230

CAGE

25

07012-10058

SEAL,OIL

26

07000-02110

O-RING

|26

07000-02115

O-RING

27

04020-01024

PIN,DOWEL

28

01010-51035

BOLT

29

01602-21030

WASHER,SPRING

30

06040-06211

BEARING,BALL

31

20G-14-12240

SLIDER

32

20D-14-41471

COVER

|32

20D-14-41470

COVER

33

20D-14-41480

COVER

34

01090-51035

BOLT

|34

01090-51035

BOLT

35

113-15-21260

WASHER

|35

113-15-21260

WASHER

36

07002-01023

O-RING

|36

07002-01023

O-RING
