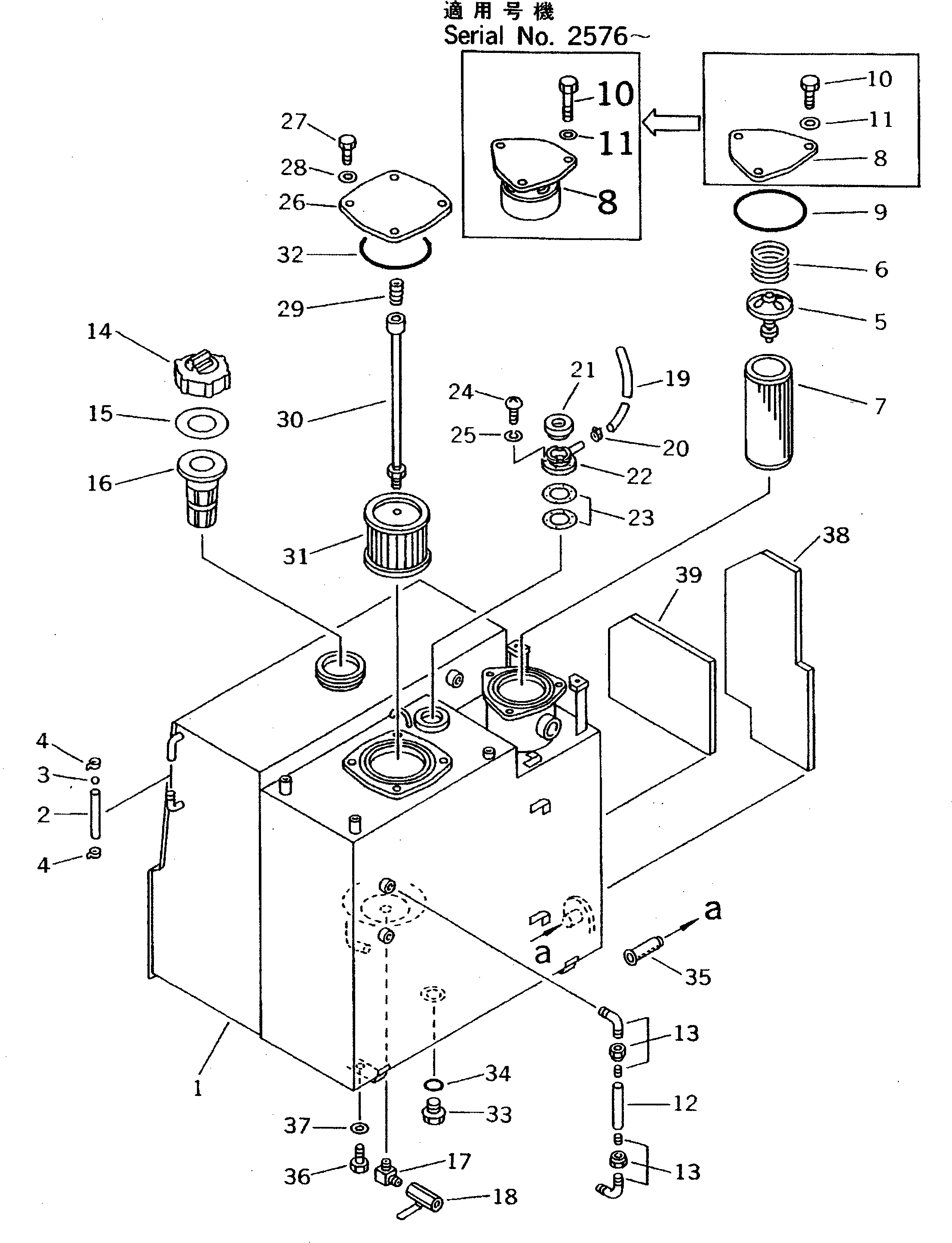

Запчасти Komatsu PW100S-3B ГИДРАВЛ МАСЛ. И ТОПЛИВН. БАК. (ШУМОПОДАВЛ. СПЕЦ-Я)(№-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|1

20D-60-00014

TANK ASS'Y

|1

20D-60-00013

TANK ASS'Y

1

20D-60-41114

TANK

2

203-60-42180

TUBE

3

201-04-21160

BALL,FLOAT

4

07285-00155

CLIP

|4

07281-00197

CLAMP

5

175-60-27300

VALVE ASS'Y

6

203-60-43120

SPRING

|6

175-60-27340

SPRING

7

07063-01100

ELEMENT

8

203-60-43110

COVER

|8

203-60-31172

COVER

9

07000-05155

O-RING

10

01010-51025

BOLT

11

01643-31032

WASHER

12

203-60-31160

TUBE

13

203-60-31100

ELBOW ASS'Y

14

07050-21200

CAP

|14

07091-11200

CAP,(FOR VANDALISM PROTECTION)

15

07050-21202

GASKET

16

07056-18416

STRAINER

17

20D-68-11670

ELBOW

18

07700-40240

VALVE

19

203-60-12170

TUBE

20

07280-01110

CLAMP

21

201-60-12190

CAP ASS'Y

22

201-60-12171

FILLER

23

205-60-51460

GASKET

24

01220-40516

SCREW

25

01601-20513

WASHER,SPRING

26

21K-60-11180

COVER

27

01010-51025

BOLT

28

01643-31032

WASHER

29

12R-60-11230

SPRING

30

203-60-42160

ROD

31

21K-60-11190

STRAINER

32

07000-05180

O-RING

33

07044-13620

PLUG

34

07002-03634

O-RING

35

20G-60-11210

FILTER

36

01010-51435

BOLT

37

01643-31445

WASHER

38

20D-60-41270

SHEET

39

20D-60-41280

SHEET
