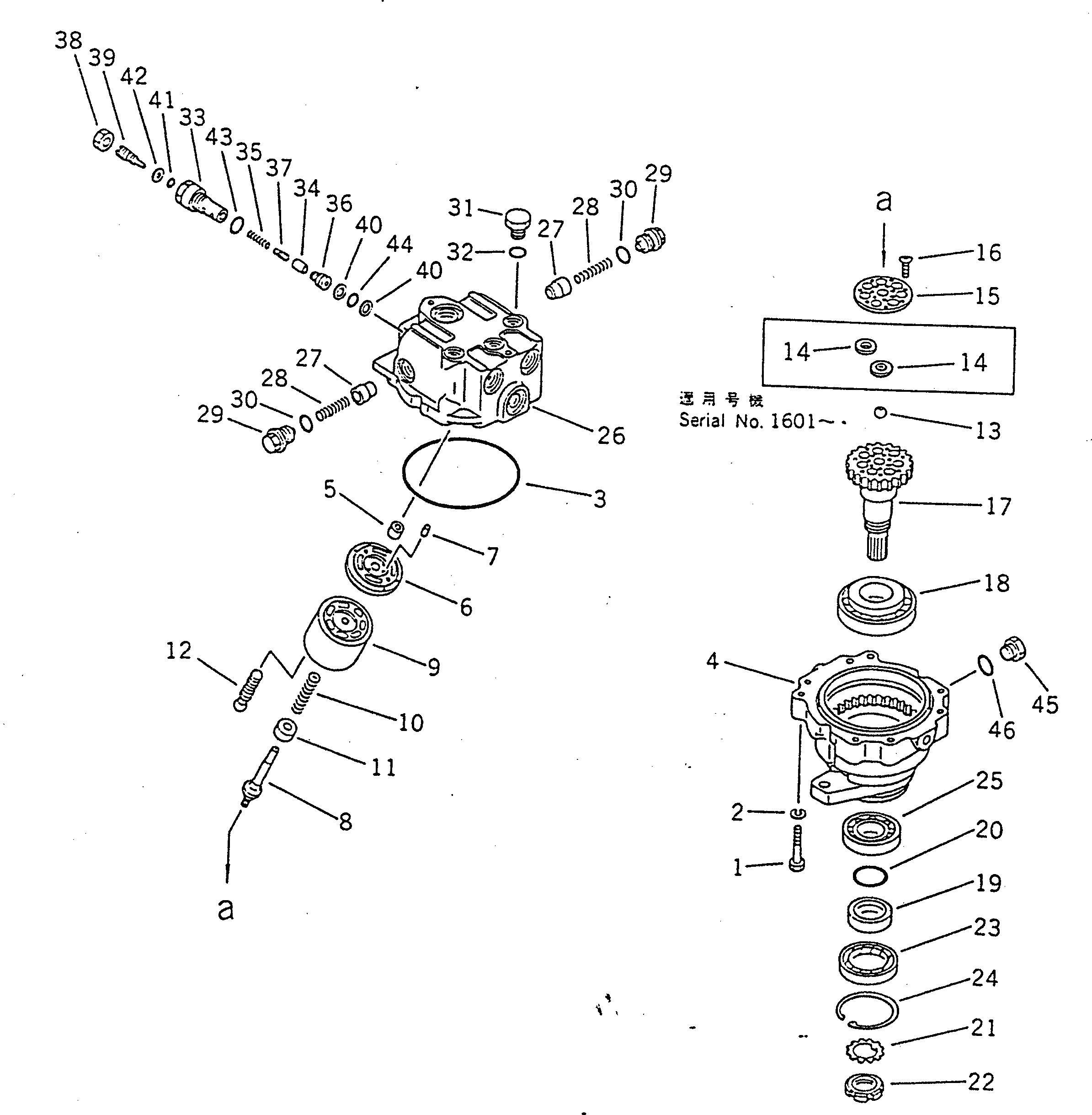

Запчасти Komatsu PW100S-3B МОТОР ПОВОРОТА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-73-10500

SWING MOTOR ASS'Y

1

01010-51055

BOLT

2

01602-21030

WASHER

3

706-73-42370

O-RING

4

706-73-42030

CASE

5

706-73-40010

BEARING

6

706-73-42840

PLATE

7

04020-00616

PIN

8

706-73-42080

SHAFT

9

706-73-41091

BLOCK,CYLINDER

10

706-73-41110

SPRING

11

706-73-41130

RING

12

706-73-41164

PISTON ASS'Y

|12

706-73-41163

PISTON ASS'Y

13

706-73-41220

BALL

14

706-73-41251

HOLDER

15

706-73-42260

RETAINER

|15

706-73-41263

RETAINER

16

706-73-42270

SCREW

|16

706-73-41271

SCREW

17

706-73-42762

SHAFT,DRIVE

|17

706-73-42761

SHAFT,DRIVE

|17

706-73-42760

SHAFT,DRIVE

18

706-74-41880

BEARING

19

706-75-40910

RING

20

07000-03040

O-RING

21

01658-03618

WASHER

22

01530-03610

NUT

23

706-75-90180

SEAL

24

04065-08225

RING

25

706-75-40890

BEARING

26

706-73-72140

HOUSING

27

706-73-72420

VALVE

28

706-73-72440

SPRING

29

706-73-72430

PLUG

30

07002-12434

O-RING

31

07040-12012

PLUG

32

07002-12034

O-RING

|33

706-73-85301

VALVE ASS'Y

33

SLEEVE

34

VALVE

35

SPRING

36

SEAT

37

PISTON

38

NUT

39

SCREW

40

07001-02016

RING

41

O-RING

42

RING

43

07002-12434

O-RING

44

07000-22016

O-RING

45

07040-11409

PLUG

46

07002-01423

O-RING
