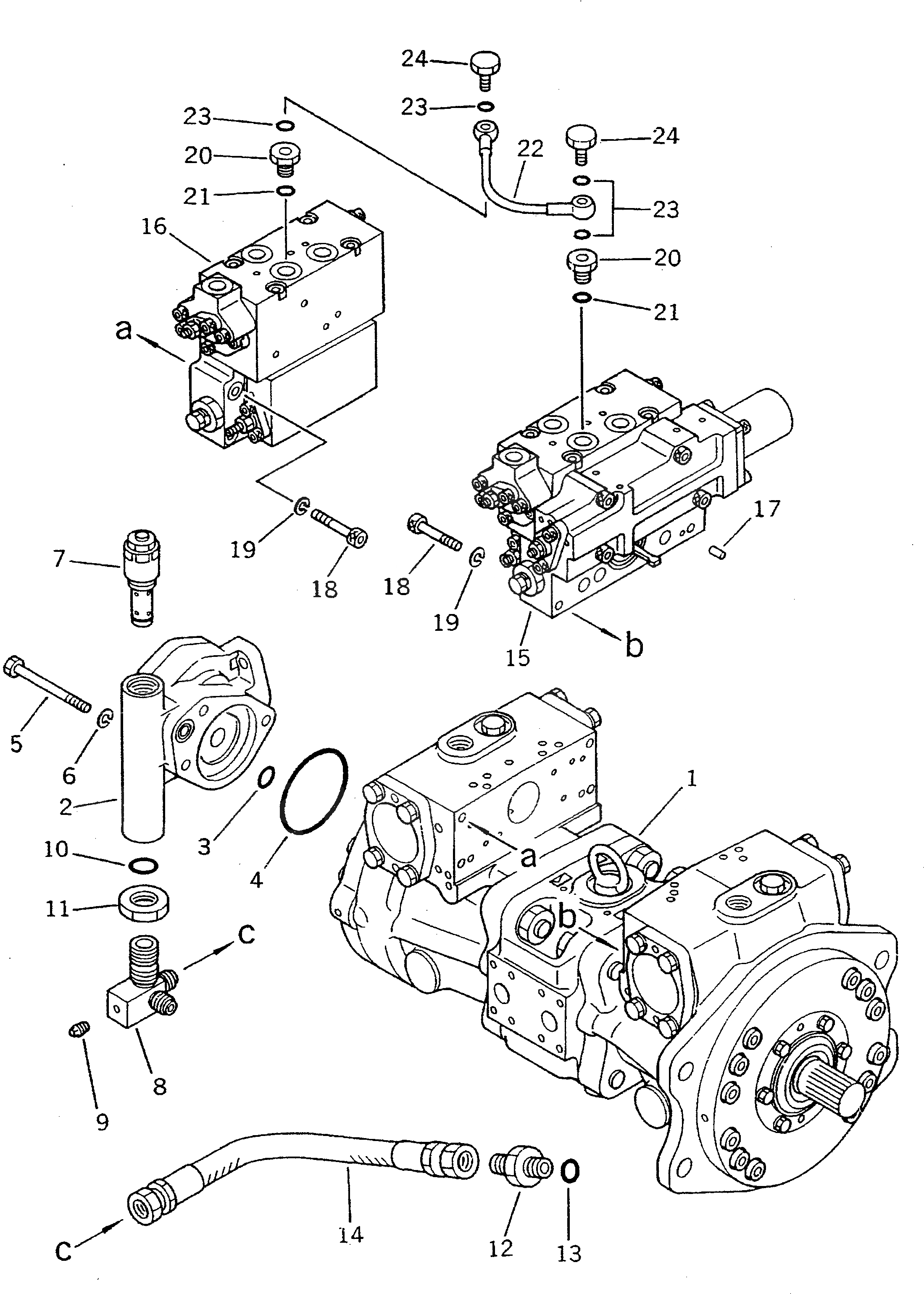

Запчасти Komatsu PW100S-3B ГИДР. НАСОС. БЛОК (С OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-23-01070

PUMP ASS'Y (HPV55+55)

|1

708-23-01032

PUMP ASS'Y (HPV55+55)

|1

708-23-01030

PUMP ASS'Y (HPV55+55)

|1

708-23-10300

PUMP ASS'Y (HPV55+55)

1

708-23-11101

PUMP SUB ASS'Y

|1

708-23-11301

PUMP SUB ASS'Y

|1

708-23-11300

PUMP SUB ASS'Y

2

704-24-26401

PUMP ASS'Y

|2

704-24-26400

PUMP ASS'Y

3

07000-02018

O-RING

4

07000-02075

O-RING

5

01010-51085

BOLT

6

01602-01030

WASHER,SPRING

7

708-23-14801

VALVE ASS'Y,RELIEF

|7

708-23-14800

VALVE ASS'Y,RELIEF

8

708-23-19110

ELBOW

9

07042-30108

PLUG

10

07002-02434

O-RING

11

07239-12410

NUT

12

07230-10315

UNION

13

07002-02034

O-RING

14

07102-20303

HOSE

15

708-23-07121

SERVO VALVE ASS'Y,FRONT

|15

708-23-07120

SERVO VALVE ASS'Y,FRONT

|15

708-23-15300

SERVO VALVE ASS'Y,FRONT

16

708-23-07221

SERVO VALVE ASS'Y,REAR

|16

708-23-16300

SERVO VALVE ASS'Y,REAR

17

04020-00616

PIN,DOWEL

18

708-25-19130

BOLT

19

01602-00825

WASHER,SPRING

20

706-46-53260

PLUG

21

07002-01423

O-RING

22

708-23-19120

TUBE

23

07000-02012

O-RING

24

706-46-53180

BOLT,JOINT
