Запчасти Komatsu PW100S-3 МАРКИРОВКА (STD)(№-) КАТАЛОГИ ЗЧ

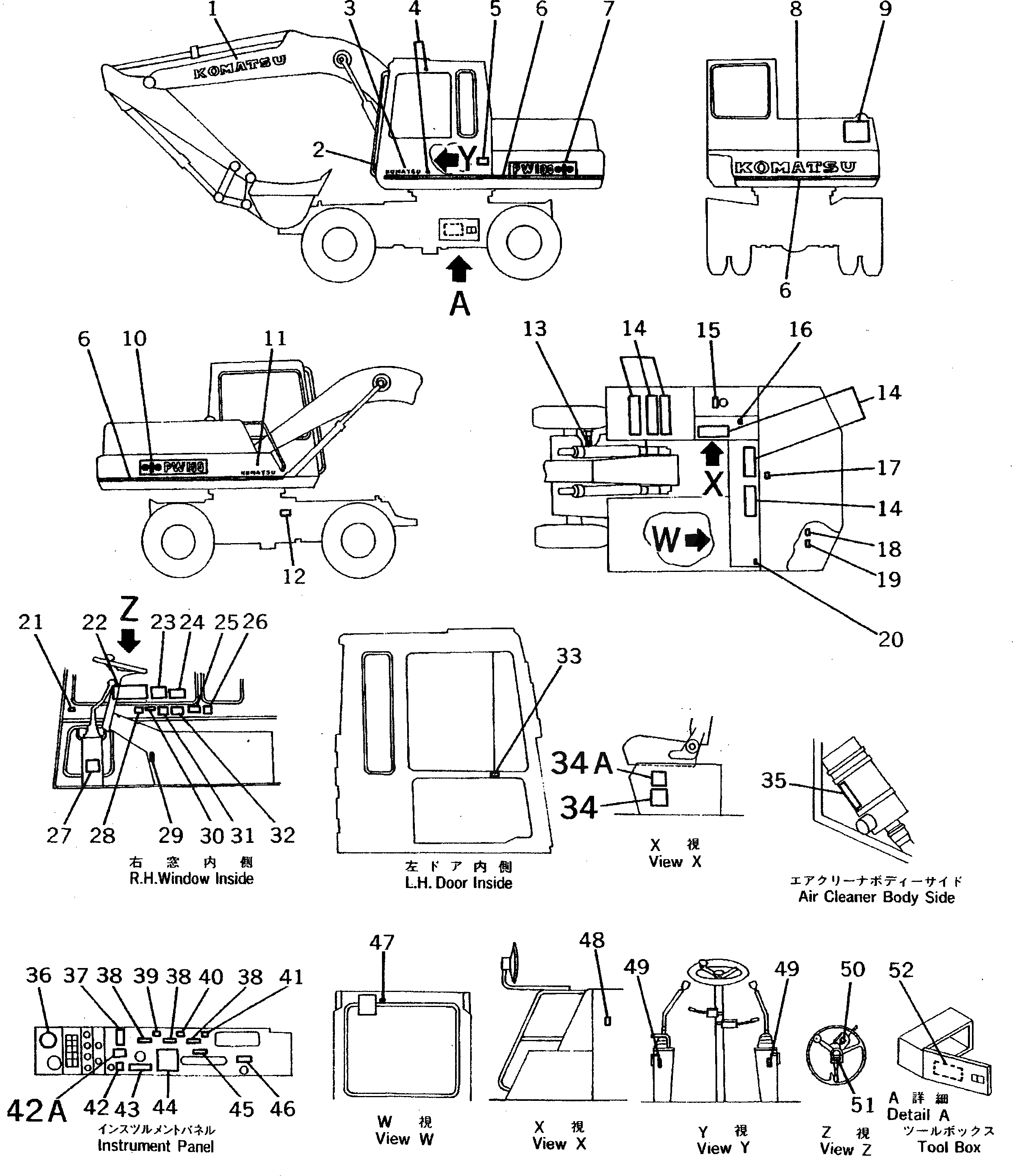

Схема запчастей Komatsu PW100S-3 - МАРКИРОВКА (STD)(№-) КАТАЛОГИ ЗЧ

Артикул

Название

Примечание

Количество

1

09690-41250

PLATE¤ MARK,KOMATSU

2

205-54-76480

PLATE,FRONT CAB UNDER

3

09690-50500

PLATE¤ MARK,KOMATSU

4

205-00-63770

PLATE,GUARD

5

09602-01643

PLATE¤ NAME

|5

205-00-71540

SCREW

6

142-54-16170

STRIPE

7

20D-00-41110

PLATE¤ MARK,PW100¤ L.H.

8

203-00-41131

PLATE¤ MARK,KOMATSU

9

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

10

20D-00-41120

PLATE¤ MARK,PW100¤ R.H.

11

09690-50500

PLATE¤ MARK,KOMATSU

12

PLATE¤ NAME,SYMBOL

13

20B-54-22990

PLATE¤ SAFETY,STEERING HOSE CHANGE

14

154-54-23260

SEAT,NONSKID

15

09652-01121

PLATE¤ CAUTION,FUEL

16

09653-00110

PLATE¤ SAFETY,HYDRAULIC TANK CAP

17

09667-00100

PLATE¤ SAFETY,ENGINE COVER

18

09650-01104

PLATE¤ INSTRUCTION,RADIATOR

19

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

20

09152-00100

PLATE¤ SAFETY,AIR TANK

21

205-00-52192

PLATE¤ CAUTION

22

20D-00-41181

PLATE¤ OPERATING

|22

20D-00-41180

PLATE¤ OPERATING

23

20D-00-41162

PLATE¤ OPERATING

|23

20D-00-41161

PLATE¤ OPERATING

24

203-00-41520

PLATE¤ CAUTION

25

205-00-63540

PLATE¤ CAUTION

26

20G-00-11470

PLATE¤ CAUTION,BRAKE LOCK

27

203-00-31320

PLATE¤ CAUTION

28

205-00-63250

PLATE¤ CAUTION

29

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

30

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

31

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

32

20D-00-41150

PLATE¤ CAUTION

33

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

34

20D-00-41132

PLATE¤ DATA

|34

20D-00-41131

PLATE¤ DATA

34A

20D-00-41250

PLATE¤ CAUTION,STEERING AUTO SELECTOR

35

09641-00161

PLATE¤ INSTRUCTION,AIR CLEANER

36

20B-00-31150

PLATE,WORKING RANGE

37

09683-01060

PLATE¤ OPERATING

38

09685-00002

PLATE¤ OPERATING,LOCK LEVER

39

20G-00-11850

PLATE¤ OPERATING,SUSPENSION LOCK

40

20G-00-11870

PLATE¤ OPERATING,BRAKE LOCK

41

20G-00-11860

PLATE¤ OPERATING,PARKING BRAKE

42

20G-00-11980

PLATE¤ OPERATING,STEERING AUTO SELECTOR SIGNAL

42A

20D-00-41810

PLATE¤ CAUTION,H-L LEVER

43

20G-00-11830

PLATE¤ OPERATING,H-L LEVER

44

20D-00-41171

PLATE¤ CAUTION

45

203-00-31330

PLATE¤ OPERATING

46

205-00-71470

PLATE¤ OPERATING,PARKING BRAKE SWITCH

47

205-00-63230

PLATE¤ CAUTION,AUTO LOCK

48

203-00-31120

PLATE¤ INSTRUCTION,LEVEL GAUGE HYDRAULIC TANK

49

09685-00001

PLATE¤ OPERATING,SAFETY LOCK LEVER

50

20G-06-12380

PLATE¤ OPERATING,F-R LEVER

51

20D-00-41190

PLATE¤ OPERATING,TURN SIGNAL

52

20D-00-41240

PLATE¤ CAUTION,TOOL BOX

Выбрано товаров: 58
