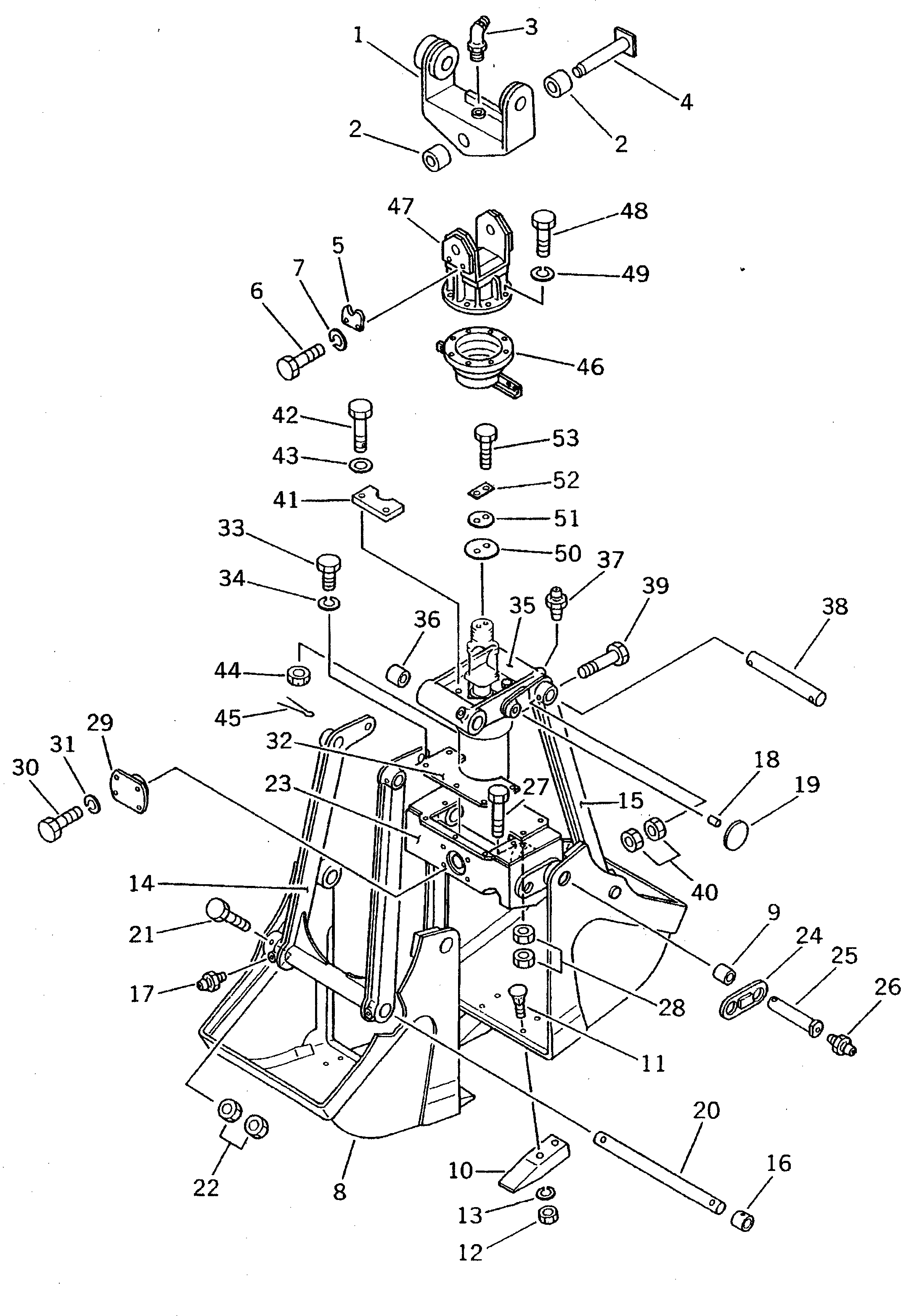

Запчасти Komatsu PW100S-3 ГРЕЙФЕРН. КОВШ¤ .M РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

202-931-0020

CLAMSHELL A. 0.35M3,0.35M3

|1

202-931-0030

HANGER ASS'Y

1

HANGER

2

07143-10505

BUSHING

3

07020-00675

FITTING,GREASE

4

202-931-4110

PIN

5

202-931-4120

PLATE,LOCK

6

01010-51230

BOLT

7

01602-01236

WASHER,SPRING

|8

202-931-0040

BUCKET ASS'Y

|8

202-931-0050

BODY ASS'Y

8

SHELL,0.35M3

9

07143-10505

BUSHING

10

202-931-1180

TOOTH

11

02090-01275

BOLT

12

02290-01219

NUT

13

01602-21957

WASHER,SPRING

|14

202-931-0080

ARM ASS'Y,L.H.

|14

202-931-0090

ARM ASS'Y,R.H.

14

ARM,L.H.

15

ARM,R.H.

16

07144-10505

BUSHING

17

07020-00000

FITTING,GREASE

18

202-931-1170

PIN

19

202-931-1370

PLATE (WELDED)

20

202-931-1220

PIN

21

01011-51610

BOLT

22

01580-11613

NUT

23

202-931-1230

FRAME

24

202-931-1240

PLATE,LOCK

25

202-931-1250

PIN

26

07020-00000

FITTING,GREASE

27

01011-51620

BOLT

28

01580-11613

NUT

29

202-931-1260

HOUSING

30

01010-51435

BOLT

31

01602-21442

WASHER,SPRING

32

202-931-1270

COVER

33

01010-51020

BOLT

34

01602-21030

WASHER,SPRING

|35

202-931-0060

FRAME ASS'Y

35

FRAME

36

07144-10505

BUSHING

37

07020-00000

FITTING,GREASE

38

202-931-1290

PIN

39

01011-51620

BOLT

40

01580-11613

NUT

41

202-931-1310

PLATE

42

01012-82495

BOLT

43

01643-32460

WASHER

44

01590-32427

NUT

45

04050-05040

PIN,COTTER

46

202-931-1320

JOINT

47

202-931-1330

BRACKET

48

01010-51645

BOLT

49

01602-21648

WASHER,SPRING

50

202-931-1360

PLATE

51

202-931-1350

PLATE

52

202-931-1340

PLATE

53

01010-51230

BOLT
