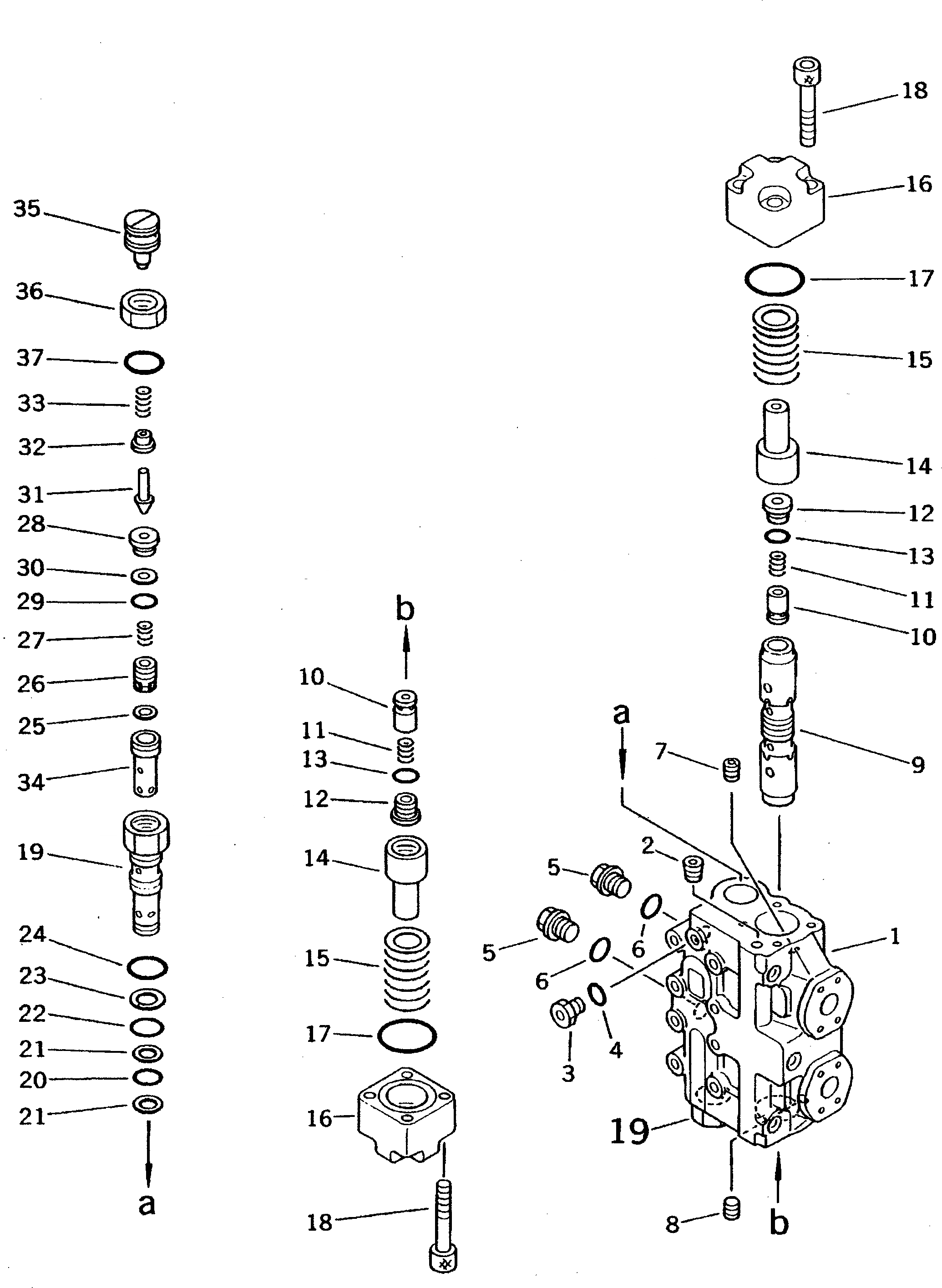

Запчасти Komatsu PW100S-3 МОТОР ХОДА (/) (ТОРМОЗНОЙ КЛАПАН) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-86-01010

TRAVEL MOTOR ASS'Y

|1

706-86-00304

TRAVEL MOTOR ASS'Y

|1

706-86-00302

TRAVEL MOTOR ASS'Y

|1

702-66-01300

BRAKE VALVE ASS'Y

|1

706-76-71401

BRAKE VALVE ASS'Y

1

BODY,VALVE

2

07043-70211

PLUG

3

07040-11007

PLUG

4

07002-01023

O-RING

5

706-77-72170

PLUG

6

07002-12434

O-RING

7

SCREW

8

SCREW

9

SPOOL

10

706-76-71560

VALVE

11

700-42-31210

SPRING

12

706-76-71430

PLUG

13

07002-12434

O-RING

14

706-76-71411

RETAINER

15

706-76-71420

SPRING

16

706-76-71381

COVER

17

706-76-71390

O-RING

18

720-68-11510

BOLT

|19

702-76-01200

VALVE ASS'Y,C.O.R.

|19

706-76-75301

VALVE ASS'Y,C.O.R.

19

SLEEVE

20

07000-23022

O-RING

21

07001-03022

RING,BACK-UP

22

700-93-11320

O-RING

23

700-93-11330

RING,BACK-UP

24

07002-03634

O-RING

25

RING,SNAP

26

VALVE

27

SPRING

28

SEAT

29

O-RING

30

RING,BACK-UP

31

POPPET

32

RETAINER

33

SPRING

34

SLEEVE

35

PLUG

|35

PLUG

36

NUT

37

O-RING
