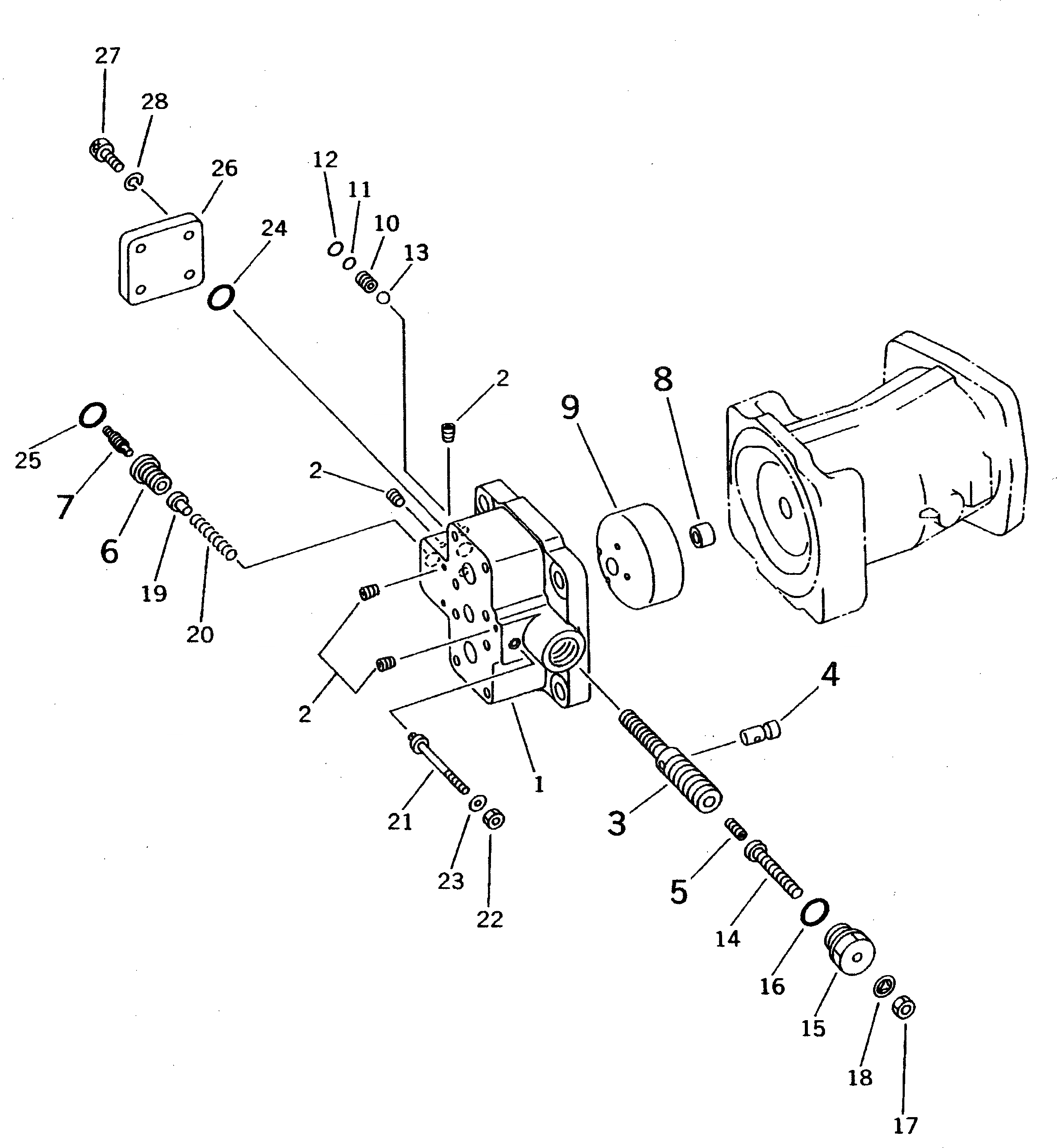

Запчасти Komatsu PW100S-3 МОТОР ХОДА (/) (МОТОР (/))(№87-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-86-01010

TRAVEL MOTOR ASS'Y

|1

706-86-00304

TRAVEL MOTOR ASS'Y

|1

706-86-03104

MOTOR ASS'Y

|1

706-86-03103

MOTOR ASS'Y

|1

706-86-00030

END COVER ASS'Y

|1

706-86-00010

END COVER ASS'Y

|1

706-86-00130

COVER ASS'Y,END

1

COVER,END

2

PLUG

3

PISTON

4

PIN

5

SCREW

6

SLEEVE

|6

SLEEVE

7

SPOOL

8

706-86-40071

BUSHING

9

706-86-40843

VALVE,PLATE

10

706-86-51160

PLUG

11

07000-11008

O-RING

12

07001-01008

RING,BACK-UP

13

04260-00793

BALL

14

706-86-50220

SCREW

15

706-86-50080

PLUG

16

07002-13334

O-RING

17

01580-11210

NUT

18

706-86-50050

WASHER

19

706-86-50121

SEAT,SPRING

20

706-86-50130

SPRING

21

706-86-50140

SCREW

22

01580-10605

NUT

23

706-86-50150

WASHER

24

07000-13025

O-RING

25

07000-13022

O-RING

26

706-86-50062

COVER

27

706-86-50210

BOLT

28

01602-21236

WASHER,SPRING
