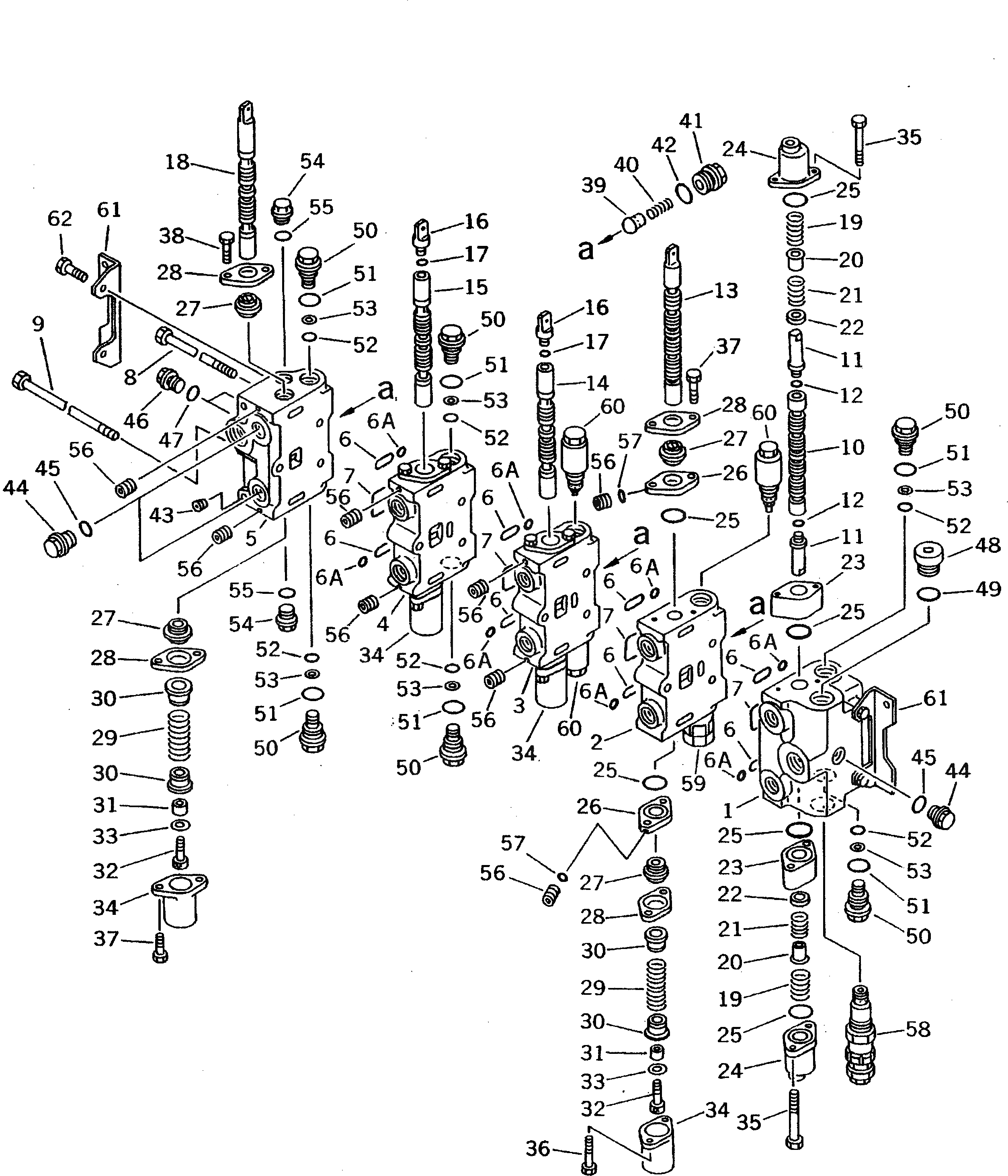

Запчасти Komatsu PW100S-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ CONFLUENT НАВЕСН. ОБОРУД КОНТУР) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
700-85-32003
CONTROL VALVE ASS'Y
|1
700-85-32001
CONTROL VALVE ASS'Y
|1
700-85-32000
CONTROL VALVE ASS'Y
1
BODY,VALVE
|1
BODY,VALVE
2
BLOCK,VALVE
|2
BLOCK,VALVE
3
BLOCK,VALVE
|3
BLOCK,VALVE
4
BLOCK,VALVE
|4
BLOCK,VALVE
5
COVER,VALVE
|5
COVER,VALVE
6
07000-03038
O-RING
|6
07000-03030
O-RING
6A
07000-01007
O-RING
7
07000-13050
O-RING
8
700-85-11111
BOLT
9
700-84-13210
BOLT
10
SPOOL,TRAVEL
|10
SPOOL,TRAVEL
11
700-84-14950
JOINT
12
07002-11223
O-RING
13
SPOOL,BUCKET
14
SPOOL,BOOM LOW
15
SPOOL,ARM HIGH
16
700-84-11870
JOINT
17
07002-11223
O-RING
18
SPOOL,SERVICE
19
700-84-14920
SPRING
20
700-84-14940
RETAINER
21
700-84-14910
SPRING
22
700-84-13781
RETAINER
23
700-84-14931
PLATE
24
700-84-12510
CASE
25
700-84-11240
O-RING
26
700-84-13923
PLATE
|26
700-84-13921
PLATE
27
700-84-13910
SEAL
28
700-84-13891
PLATE
29
700-84-11650
SPRING
30
700-84-13711
RETAINER
31
700-84-11641
COLLAR
32
01252-30830
BOLT
33
01643-30823
WASHER
34
700-84-11390
COVER
35
01252-30650
BOLT
36
01252-30630
BOLT
37
01252-30625
BOLT
38
01252-30612
BOLT
39
700-42-31460
VALVE
40
700-42-31470
SPRING
41
700-84-11320
PLUG
42
07002-13034
O-RING
43
07043-70108
PLUG
44
700-22-11370
PLUG
45
07002-12434
O-RING
46
709-30-62150
PLUG
47
07002-02034
O-RING
48
07040-13316
PLUG
49
07002-13334
O-RING
50
700-84-13960
PLUG
51
07002-03034
O-RING
52
700-22-11410
O-RING
53
700-80-64220
RING,BACK-UP
54
709-30-62150
PLUG
55
07002-02034
O-RING
56
706-86-51170
PLUG
57
07000-01007
O-RING
58
700-87-58002
VALVE ASS'Y,RELIEF
|58
700-87-58000
VALVE ASS'Y,RELIEF
59
700-81-71001
SAFETY VALVE ASS'Y
60
700-81-61002
VALVE ASS'Y,SUCTION AND SAFETY
|60
700-81-61001
VALVE ASS'Y,SUCTION AND SAFETY
61
700-84-11330
BRACKET
62
01010-51020
BOLT
Выбрано товаров: 76
