Запчасти Komatsu PW100S-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

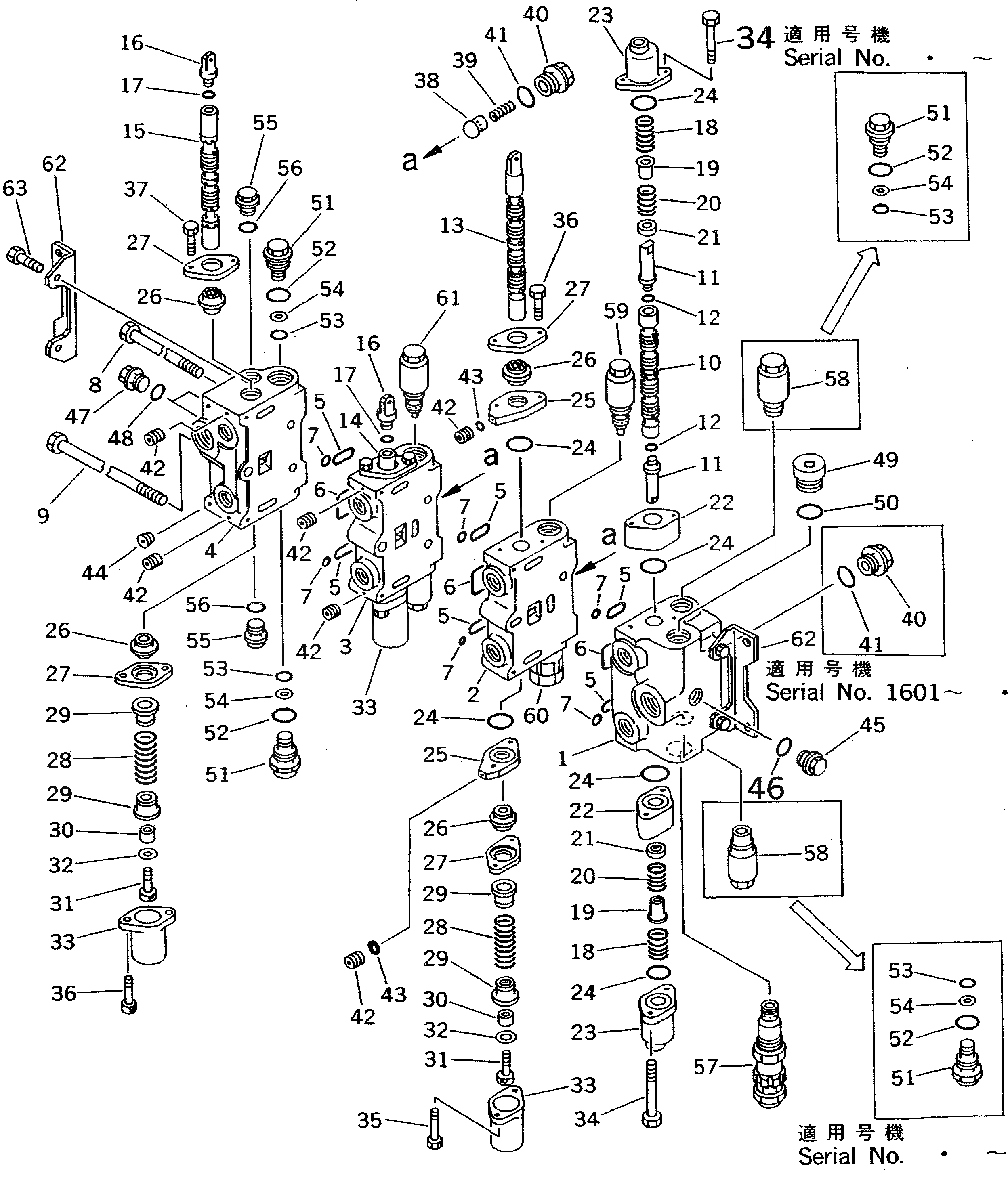

Схема запчастей Komatsu PW100S-3 - УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

709-84-21403

CONTROL VALVE ASS'Y,R.H.

|1

709-84-21402

CONTROL VALVE ASS'Y,R.H.

|1

709-84-21400

CONTROL VALVE ASS'Y,R.H.

1

BODY,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

COVER,VALVE

5

07000-03030

O-RING

6

07000-13050

O-RING

7

07000-01007

O-RING

8

700-84-11172

BOLT

9

700-84-13240

BOLT

10

SPOOL,R.H. TRAVEL

|10

SPOOL,R.H. TRAVEL

11

700-84-14950

JOINT

12

07002-11223

O-RING

13

SPOOL,BUCKET

14

SPOOL,BOOM LOW

15

SPOOL,ARM HIGH

16

700-84-11870

JOINT

17

07002-11223

O-RING

18

700-84-14920

SPRING

19

700-84-14940

RETAINER

20

700-84-14910

SPRING

21

700-84-13781

RETAINER

22

700-84-14931

PLATE

|22

700-84-14930

PLATE

23

700-84-12510

CASE

24

700-84-11240

O-RING

25

700-84-13921

PLATE

26

700-84-13910

SEAL

27

700-84-13891

PLATE

28

700-84-11650

SPRING

29

700-84-13711

RETAINER

30

700-84-11641

COLLAR

31

01252-30830

BOLT

32

01643-30823

WASHER

33

700-84-11390

COVER

34

01252-30650

BOLT

35

01252-30630

BOLT

36

01252-30625

BOLT

37

01252-30612

BOLT

38

700-42-31460

VALVE

39

700-42-31470

SPRING

40

700-84-11320

PLUG

|40

700-84-11320

PLUG

41

07002-13034

O-RING

|41

07002-13034

O-RING

42

706-86-51170

PLUG

43

07000-01007

O-RING

44

07043-70108

PLUG

45

700-22-11370

PLUG

46

07002-12434

O-RING

47

709-30-62150

PLUG

48

07002-02034

O-RING

49

07040-13316

PLUG

50

07002-13334

O-RING

51

700-84-13960

PLUG

|51

700-84-13960

PLUG

52

07002-03034

O-RING

|52

07002-03034

O-RING

53

700-22-11410

O-RING

|53

700-22-11410

O-RING

54

700-80-64220

RING,BACK-UP

|54

700-80-64220

RING,BACK-UP

55

709-30-62150

PLUG

56

07002-02034

O-RING

57

700-87-58000

VALVE ASS'Y,RELIEF

58

700-81-81000

VALVE ASS'Y,SUCTION

59

700-81-61002

VALVE ASS'Y,SAFETY

|59

700-81-61001

VALVE ASS'Y,SAFETY

|59

700-81-63001

VALVE ASS'Y,SAFETY

60

700-81-71001

SAFETY VALVE ASS'Y

|60

700-81-74001

VALVE ASS'Y,SAFETY

61

700-81-61002

VALVE ASS'Y,SAFETY

|61

700-81-61001

VALVE ASS'Y,SAFETY

62

700-84-11330

BRACKET

63

01010-51020

BOLT

Выбрано товаров: 78
