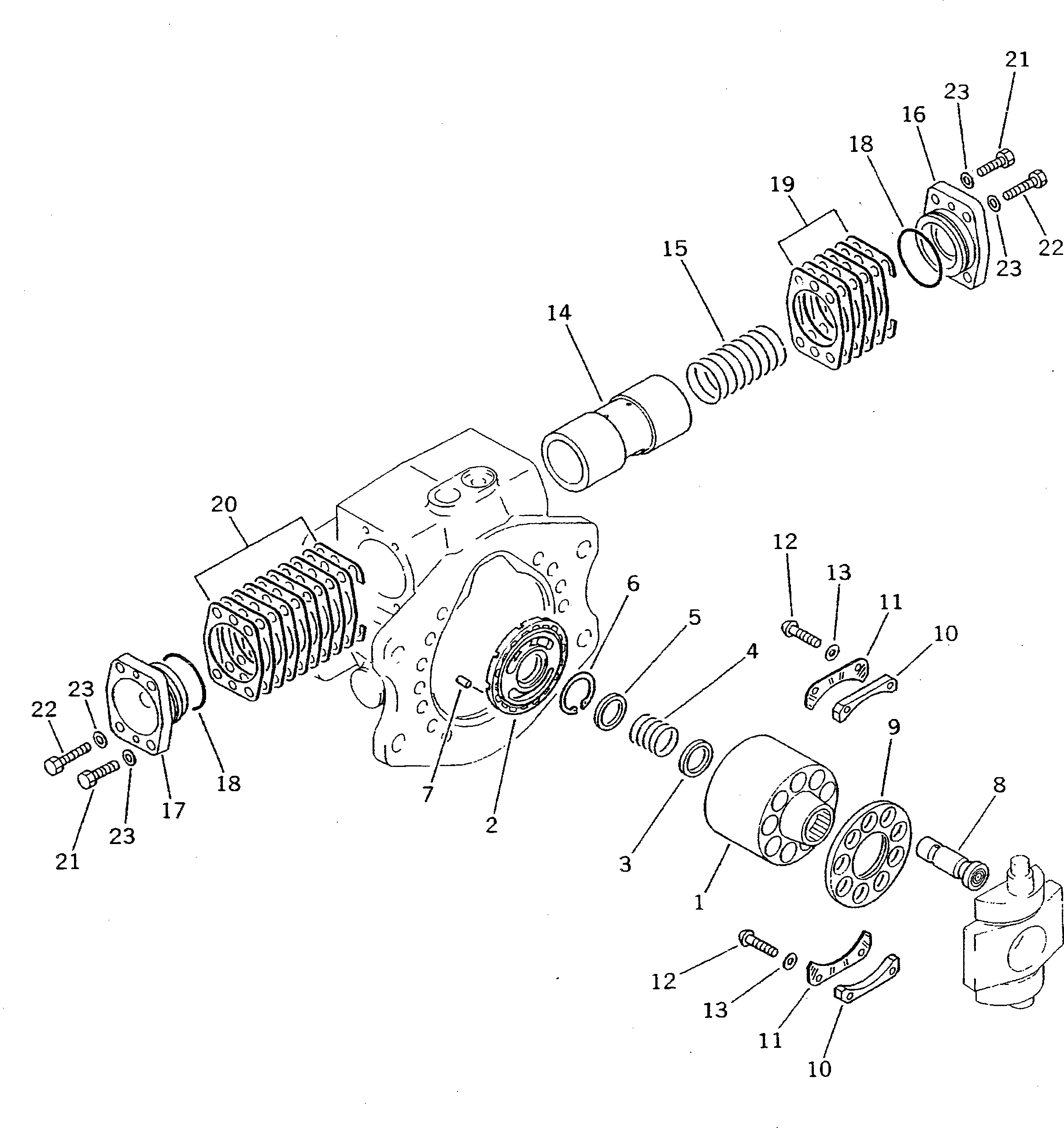

Запчасти Komatsu PW100S-3 ГИДР. НАСОС.¤ ПЕРЕДН. (/) (С OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-23-01070

PUMP ASS'Y (HPV55+55)

|1

708-23-01032

PUMP ASS'Y (HPV55+55)

|1

708-23-01030

PUMP ASS'Y (HPV55+55)

|1

708-23-10300

PUMP ASS'Y (HPV55+55)

|1

708-23-11101

PUMP SUB ASS'Y

|1

708-23-11301

PUMP SUB ASS'Y

|1

708-23-11300

PUMP SUB ASS'Y

|1

708-23-00010

BLOCK ASS'Y

|1

708-23-00130

BLOCK ASS'Y

1

CYLINDER BLOCK

2

PLATE,VALVE

3

708-23-13130

WASHER

4

708-23-13140

SPRING

5

708-23-13120

WASHER

6

04065-03815

RING,SNAP

7

720-68-19610

PIN

8

708-23-13311

PISTON ASS'Y

|8

708-23-13310

PISTON ASS'Y

9

708-23-13342

RETAINER,SHOE

|9

708-23-13341

RETAINER,SHOE

10

708-23-05041

SPACER KIT

|10

SPACER

|10

SPACER

|10

SPACER

|10

708-23-05040

SPACER KIT

|10

SPACER

|10

SPACER

|10

SPACER

11

708-23-13431

RETAINER,BEARING

12

708-23-13460

SCREW

13

01643-30623

WASHER

14

708-23-14110

PISTON

15

708-23-14130

SPRING

16

708-23-14140

CAP

17

708-23-14150

CAP

18

07000-02055

O-RING

19

708-23-05080

SHIM KIT

|19

708-23-05050

SHIM KIT

|19

SHIM

|19

SHIM

|19

SHIM

|19

SHIM

|19

SHIM

20

708-23-05090

SHIM KIT

|20

SHIM

|20

SHIM

|20

SHIM

|20

SHIM

21

01010-30830

BOLT

22

01016-50840

BOLT

23

01643-30823

WASHER
