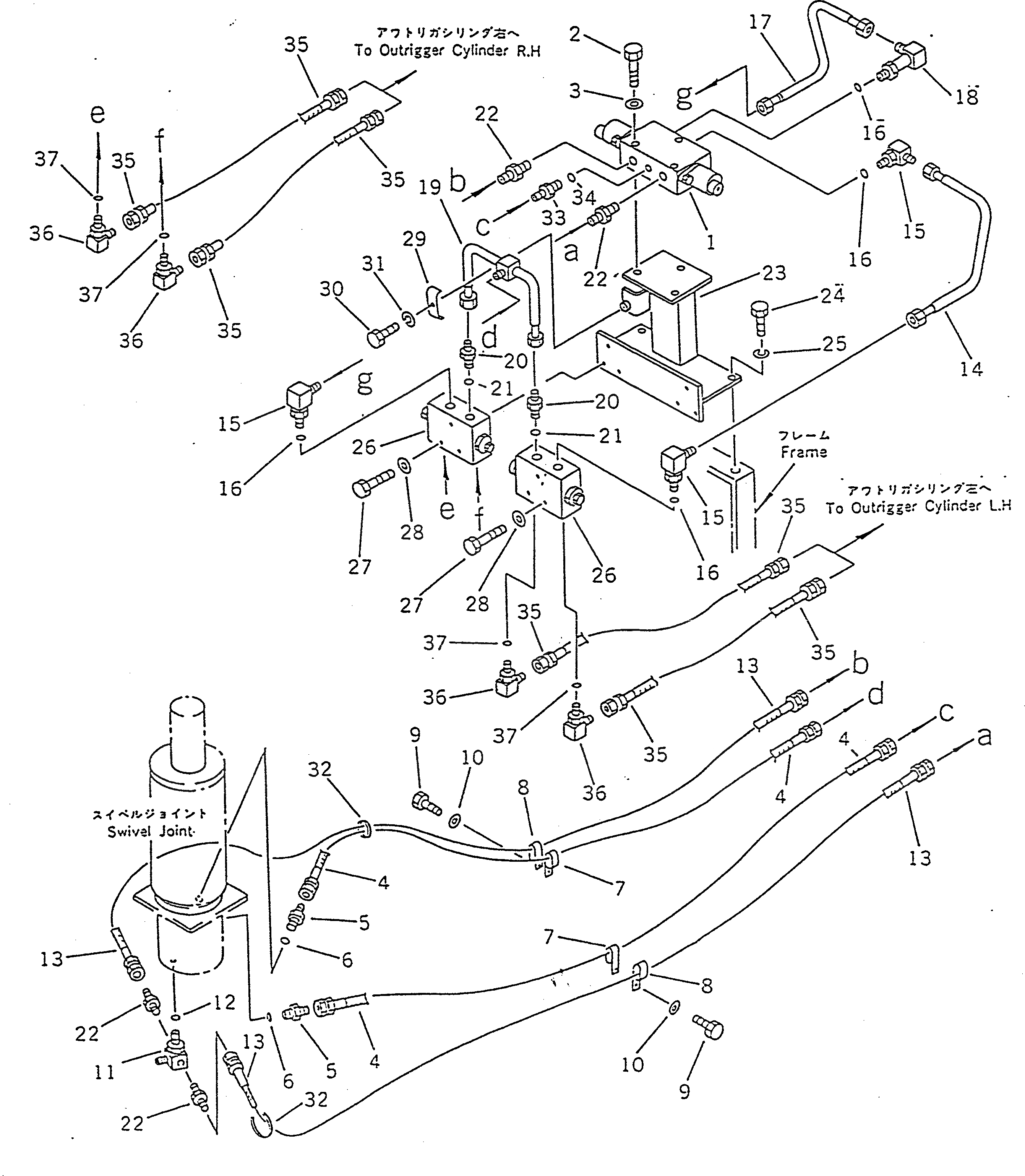

Запчасти Komatsu PW100S-3 ОПОРА ГИДРОЛИНИЯ (НИЖН.) (ЛЕВ.¤ ПРАВ. INDEPENDENT MOVEMENT)(№-) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

1

20D-60-41400

VALVE ASS'Y

2

01011-51065

BOLT

3

01643-31032

WASHER

4

07096-00313

HOSE

5

07230-10315

UNION

6

07002-12034

O-RING

7

08036-02514

CLIP

8

08036-03014

CLIP

9

01010-51025

BOLT

10

01643-31032

WASHER

11

20D-62-46310

ELBOW

12

07002-12034

O-RING

13

07102-20215

HOSE

14

20D-62-46330

TUBE

15

07235-10315

ELBOW

16

07002-12034

O-RING

17

20D-62-46340

TUBE

18

20R-62-11311

ELBOW

19

20D-62-48120

TUBE

20

07230-20315

UNION

21

07002-12034

O-RING

22

07238-00210

CONNECTOR

23

20D-62-46320

BRACKET

24

01010-51025

BOLT

25

01602-21030

WASHER,SPRING

26

20S-60-12120

CHECK VALVE ASS'Y

27

01010-50860

BOLT

28

01643-30823

WASHER

29

130-62-71350

CLAMP

30

01010-51020

BOLT

31

01643-31232

WASHER

32

08034-00414

BAND

33

07230-20315

UNION

34

07002-12034

O-RING

35

07121-00304

HOSE

36

07235-10315

ELBOW

37

07002-12034

O-RING
