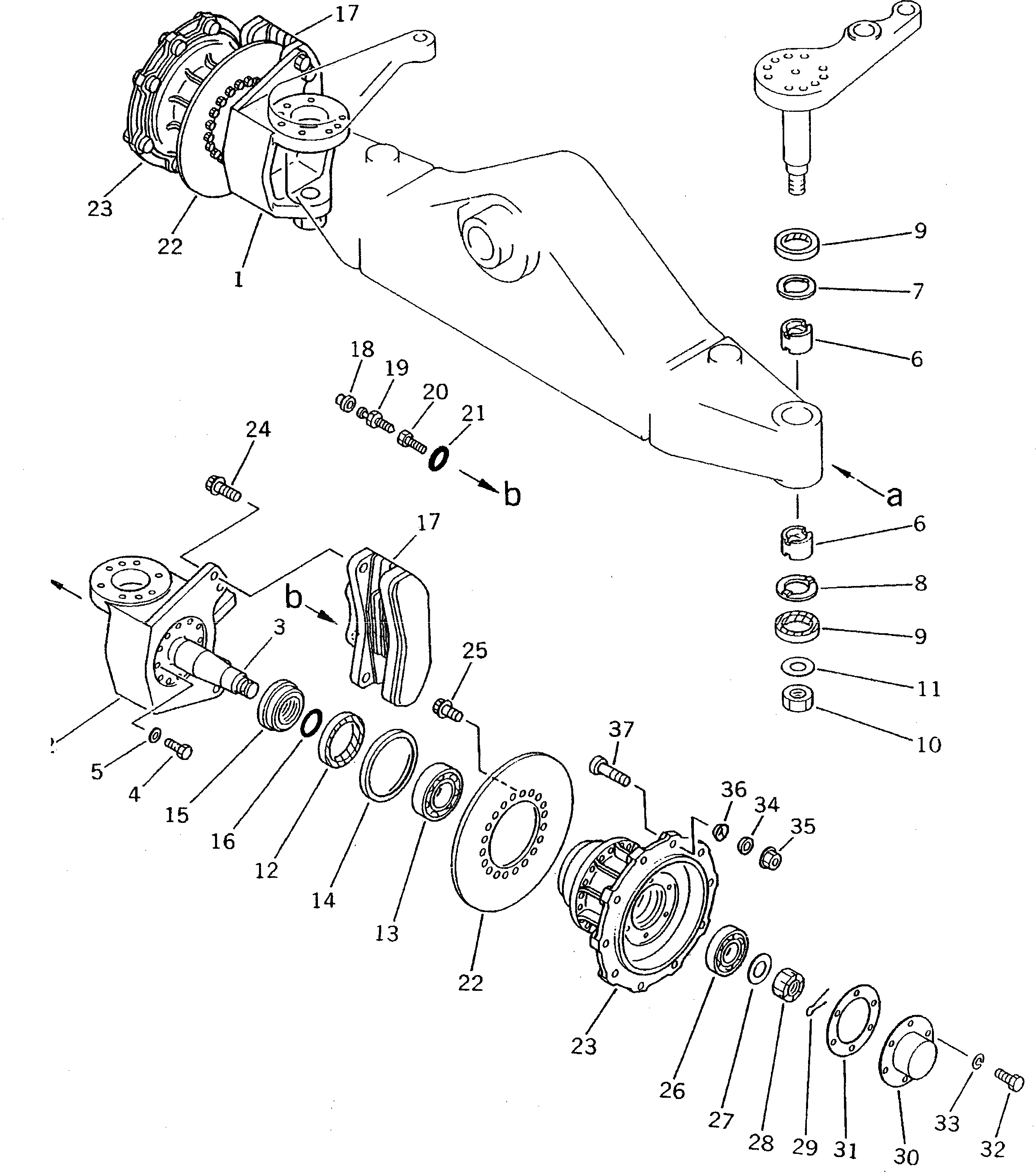

Запчасти Komatsu PW100NS-3 ПЕРЕДНИЙ МОСТ (/) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|1

20D-24-40001

FRONT AXLE ASS'Y

1

20D-24-41151

KNUCKLE,R.H.

2

20D-24-41141

KNUCKLE,L.H.

3

20D-24-41390

SPINDLE

4

01010-51640

BOLT

5

01643-51645

WASHER

6

22X-22-13450

BUSHING

7

22X-23-23470

WASHER

8

22X-23-23480

WASHER

9

22X-23-23790

SEAL

10

07165-13638

NUT

11

01643-33690

WASHER

12

07012-00100

SEAL,OIL

13

06002-32214

BEARING

14

20D-24-41231

COVER

15

20D-24-41241

SPACER

16

07000-02070

O-RING

17

20G-32-21473

BRAKE ASS'Y,L.H.

|17

20G-32-21107

BRAKE ASS'Y,R.H.

|17

20G-32-21106

BRAKE ASS'Y

|17

20G-32-21105

BRAKE ASS'Y

|17

20G-32-21103

BRAKE ASS'Y

18

20G-32-21140

CAP

19

20G-32-21560

BLEEDER,BLEED

20

20G-32-21550

PLUG

21

20G-32-21160

O-RING

22

20G-32-21910

DISC

23

20D-24-41160

HUB

24

20G-32-21930

BOLT

25

20G-32-21950

BOLT

26

06003-30310

BEARING

27

01643-33990

WASHER

28

01593-13923

NUT

29

04050-26060

PIN,COTTER

30

20D-24-41250

COVER

31

20D-24-41260

GASKET

32

01010-51025

BOLT

33

01602-21030

WASHER,SPRING

34

20G-22-12880

COLLAR

35

20G-22-12870

NUT

36

20G-22-12860

WASHER,SPRING

37

20D-24-41270

BOLT
