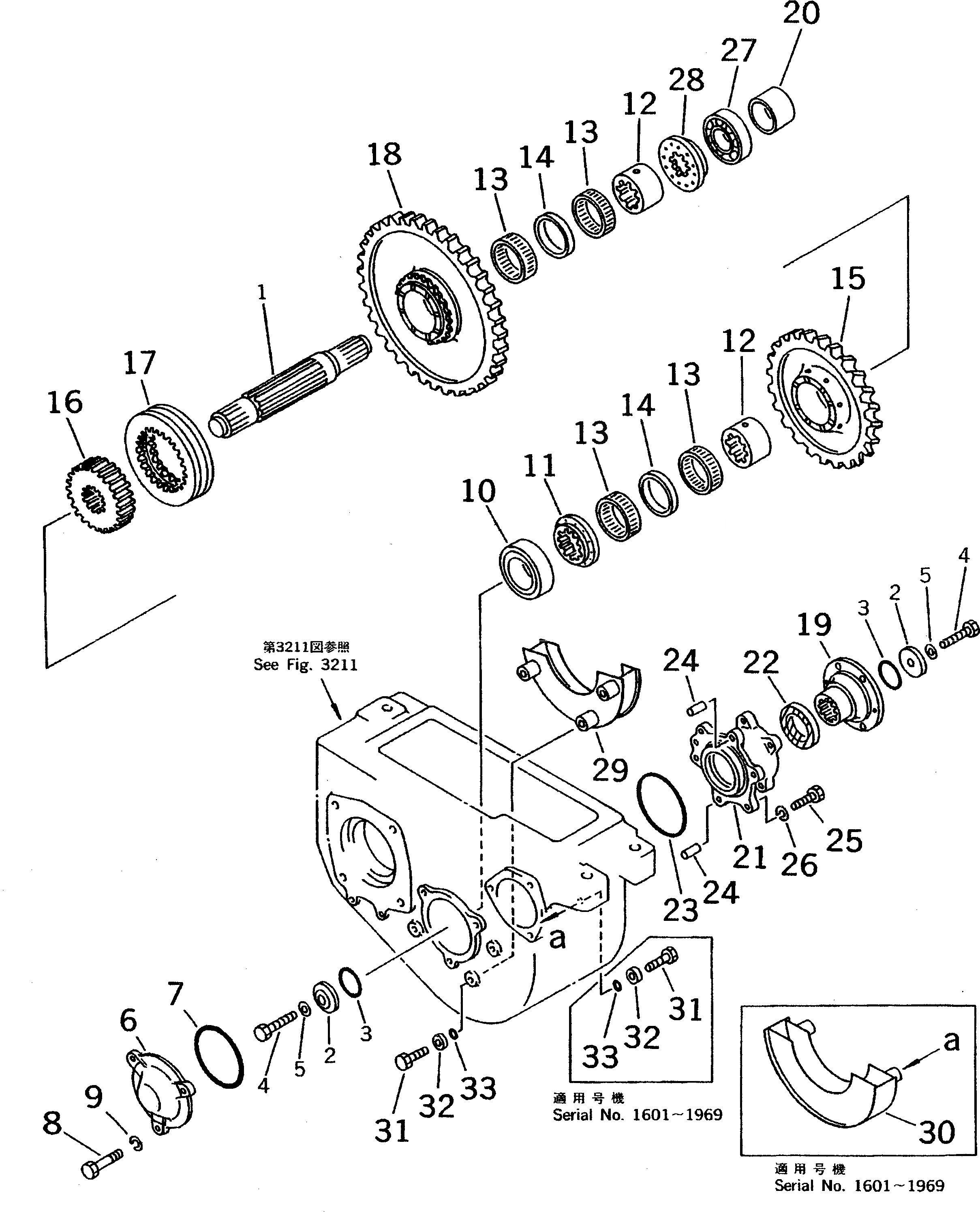

Запчасти Komatsu PW100NS-3 ТРАНСМИССИЯ (/) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|1

20D-14-00033

TRANSMISSION ASS'Y

|1

20D-14-00032

TRANSMISSION ASS'Y

|1

20D-14-00031

TRANSMISSION ASS'Y

|1

20D-14-00030

TRANSMISSION ASS'Y

1

20D-14-41450

SHAFT

2

362-15-13270

PLATE

3

20B-09-17110

O-RING

4

01050-51295

BOLT

5

01643-31232

WASHER

6

20D-14-41270

COVER

7

07000-02115

O-RING

8

01010-51030

BOLT

9

01602-21030

WASHER,SPRING

10

06044-00309

BEARING,ROLLER

11

20G-14-12490

SLIDER

12

20G-14-12230

COLLAR

13

20B-09-11120

BEARING

14

20G-14-12270

COLLAR

15

20D-14-41380

GEAR

|15

20D-14-41320

GEAR

16

20G-14-12480

GEAR

17

20G-14-12220

GEAR

18

20D-14-41340

GEAR

19

20D-14-41620

COUPLING

|19

20B-14-11450

COUPLING

20

20B-14-22310

COLLAR

21

20G-14-12280

CAGE

|21

20D-14-41230

CAGE

22

07012-10058

SEAL,OIL

23

07000-02110

O-RING

|23

07000-02115

O-RING

24

04020-01024

PIN,DOWEL

25

01010-51035

BOLT

26

01602-21030

WASHER,SPRING

27

06040-06211

BEARING,BALL

28

20G-14-12240

SLIDER

29

20D-14-41471

COVER

|29

20D-14-41470

COVER

30

20D-14-41480

COVER

31

01090-51035

BOLT

|31

01090-51035

BOLT

32

113-15-21260

WASHER

|32

113-15-21260

WASHER

33

07002-01023

O-RING

|33

07002-01023

O-RING
