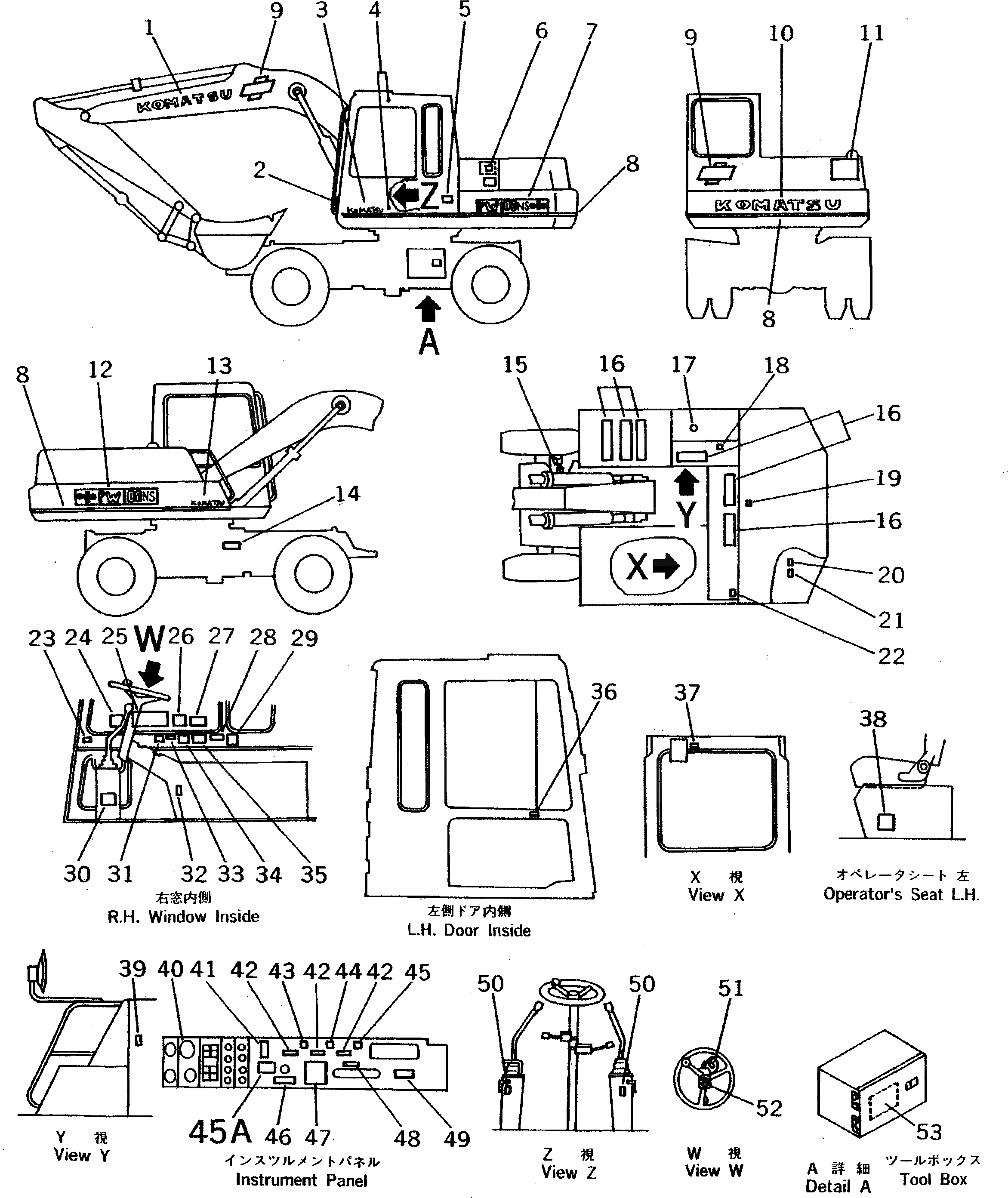

Запчасти Komatsu PW100NS-3 МАРКИРОВКА (ЯПОН.) (ШУМОПОДАВЛ. СПЕЦ-Я)(№-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-41250

PLATE¤ MARK,KOMATSU

2

205-54-76480

PLATE,FRONT CAB UNDER

3

09690-50500

PLATE¤ MARK,KOMATSU

4

205-00-63770

PLATE

5

09602-01643

PLATE¤ NAME

|5

205-00-71540

SCREW

6

09641-00161

PLATE¤ INSTRUCTION,AIR CLEANER

7

20D-00-41380

PLATE¤ MARK,PW100NS¤ L.H.

8

142-54-16170

STRIPE,STRIPE

9

203-00-42130

PLATE¤ MARK

10

203-00-41131

PLATE¤ MARK,KOMATSU

11

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

12

20D-00-41390

PLATE¤ MARK,PW100NS¤ R.H.

13

09690-50500

PLATE¤ MARK,KOMATSU

14

PLATE¤ NAME,SYMBOL

15

20B-54-22990

PLATE¤ SAFETY,STEERING HOSE CHANGE

16

154-54-23260

SEAT,NONSKID

17

09652-01121

PLATE¤ CAUTION,FUEL

18

09653-00110

PLATE¤ SAFETY,HYDRAULIC TANK CAP

19

09667-00100

PLATE¤ SAFETY,ENGINE COVER

20

09650-01104

PLATE¤ INSTRUCTION,RADIATOR

21

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

22

09152-00100

PLATE¤ SAFETY,AIR TANK

23

205-00-52192

PLATE¤ CAUTION

24

20E-47-13140

PLATE¤ OPERATING,OUTRIGGER

25

20D-00-41181

PLATE¤ OPERATING

|25

20D-00-41180

PLATE¤ OPERATING

26

20D-00-41162

PLATE¤ OPERATING

|26

20D-00-41161

PLATE¤ OPERATING

27

203-00-41520

PLATE¤ CAUTION

28

205-00-63540

PLATE¤ CAUTION

29

20G-00-11470

PLATE¤ CAUTION,BRAKE LOCK

30

203-00-31320

PLATE¤ CAUTION

31

205-00-63250

PLATE¤ CAUTION

32

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

33

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

34

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

35

20D-00-41150

PLATE¤ CAUTION

36

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

37

205-00-63230

PLATE¤ CAUTION,AUTO LOCK

38

20D-00-41231

PLATE¤ DATA

39

203-00-31120

PLATE¤ INSTRUCTION,LEVEL GAUGE HYDRAULIC TANK

40

20B-00-31150

PLATE,WORK RANGE¤ TACHOMETER

41

09683-01060

PLATE¤ OPERATING

42

09685-00002

PLATE¤ OPERATING,LOCK LEVER

43

20G-00-11850

PLATE¤ OPERATING,SUSPENSION LOCK

44

20G-00-11870

PLATE¤ OPERATING,BRAKE LOCK

45

20G-00-11860

PLATE¤ OPERATING,PARKING BRAKE

45A

20D-00-41810

PLATE¤ CAUTION,H-L LEVER

46

20G-00-11830

PLATE¤ OPERATING,H-L LEVER

47

20D-00-41171

PLATE¤ CAUTION

48

203-00-31330

PLATE¤ OPERATING

49

205-00-71470

PLATE¤ OPERATING,PARKING BRAKE SWITCH

50

09685-00001

PLATE¤ OPERATING,SAFETY LOCK LEVER

51

20G-06-12380

PLATE¤ OPERATING,F-R LEVER

52

20D-00-41190

PLATE¤ OPERATING,TURN SIGNAL

53

20D-00-41240

PLATE¤ CAUTION,TOOL BOX
