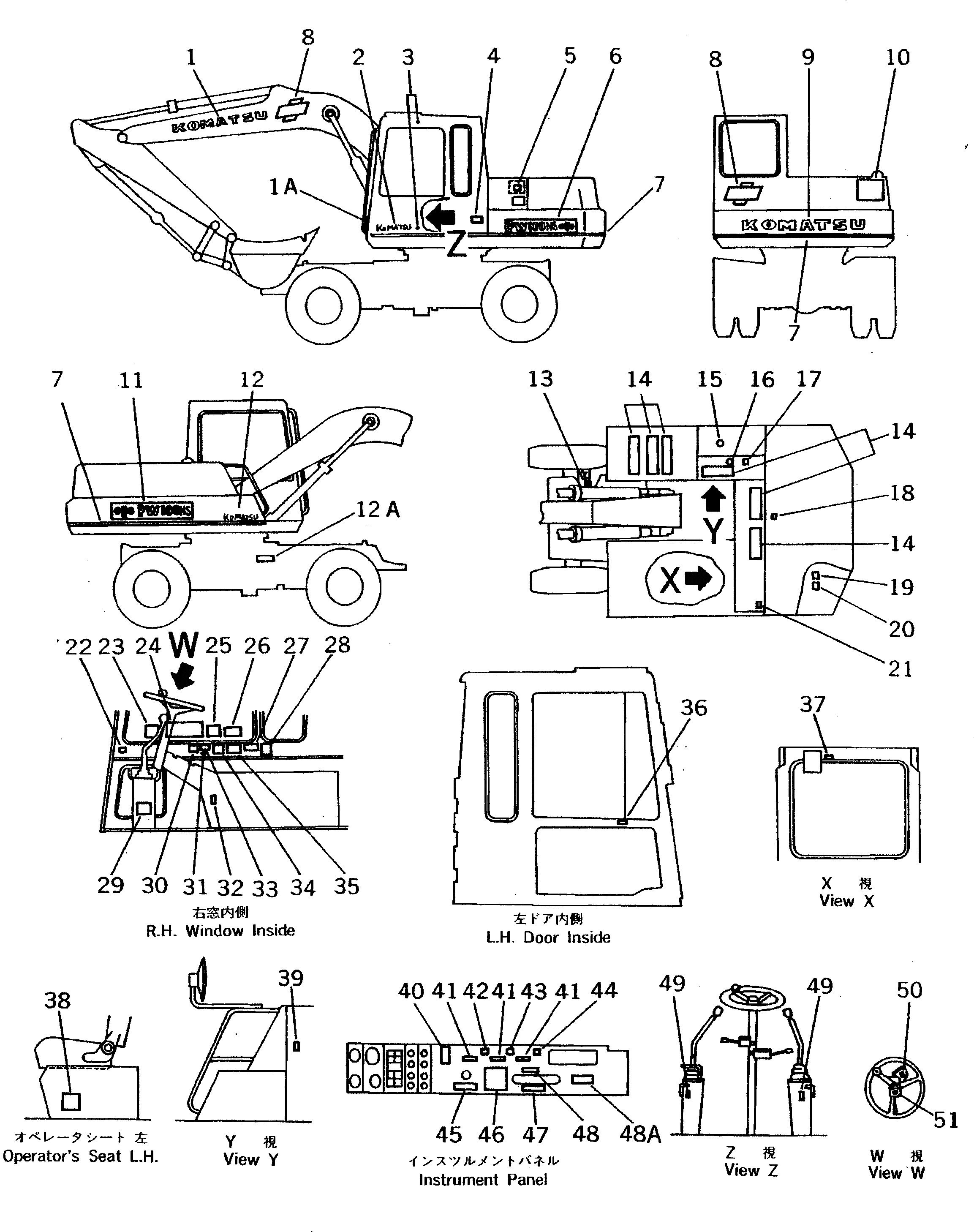

Запчасти Komatsu PW100NS-3 МАРКИРОВКА (ЯПОН.) (ШУМОПОДАВЛ. СПЕЦ-Я)(№-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-41250

PLATE¤ MARK,KOMATSU

1A

205-54-76480

PLATE,FRONT CAB UNDER

2

09690-50500

PLATE¤ MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-01643

PLATE¤ NAME

|4

205-00-71540

SCREW

|4

01220-60408

SCREW

|4

01601-20410

WASHER,SPRING

5

09641-00161

PLATE¤ INSTRUCTION,AIR CLEANER

6

20D-00-41380

PLATE¤ MARK,PW100NS¤ L.H.

7

142-54-16170

STRIPE,STRIPE

8

203-00-42130

PLATE¤ MARK

9

203-00-41131

PLATE¤ MARK,KOMATSU

10

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

11

20D-00-41390

PLATE¤ MARK,PW100NS¤ R.H.

12

09690-50500

PLATE¤ MARK,KOMATSU

12A

PLATE¤ NAME,SYMBOL

13

20B-54-22990

PLATE¤ SAFETY,STEERING HOSE CHANGE

14

154-54-23260

SEAT,NONSKID

15

09652-01121

PLATE¤ CAUTION,FUEL

|15

09669-00002

PLATE¤ CAUTION,FUEL

16

09669-00003

PLATE¤ CAUTION,HYDRAULIC OIL TANK

17

09653-00110

PLATE¤ SAFETY,HYDRAULIC TANK CAP

|17

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

18

09667-00100

PLATE¤ SAFETY,ENGINE COVER

19

09650-01104

PLATE¤ INSTRUCTION,RADIATOR

|19

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

20

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

21

09152-00100

PLATE¤ SAFETY,AIR TANK

22

205-00-52192

PLATE¤ CAUTION

23

20E-47-13140

PLATE¤ OPERATING,OUTRIGGER

24

20D-00-41180

PLATE¤ OPERATING

25

20D-00-41161

PLATE¤ OPERATING

26

203-00-41520

PLATE¤ CAUTION

27

205-00-63540

PLATE¤ CAUTION

28

20G-00-11470

PLATE¤ CAUTION,BRAKE LOCK

29

203-00-31320

PLATE¤ CAUTION

30

205-00-63250

PLATE¤ CAUTION

31

09131-00100

PLATE¤ SAFETY,SWING LOCK LEVER

32

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

33

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

34

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

35

20D-00-41150

PLATE¤ CAUTION

36

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

37

205-00-63230

PLATE¤ CAUTION,AUTO LOCK

38

20D-00-41230

PLATE¤ DATA

39

203-00-31120

PLATE¤ INSTRUCTION,LEVEL GAUGE HYDRAULIC TANK

40

09683-01060

PLATE¤ OPERATING

41

09685-00002

PLATE¤ OPERATING,LOCK LEVER

42

20G-00-11850

PLATE¤ OPERATING,SUSPENSION LOCK

43

20G-00-11870

PLATE¤ OPERATING,BRAKE LOCK

44

20G-00-11860

PLATE¤ OPERATING,PARKING BRAKE

45

20G-00-11830

PLATE¤ OPERATING,H-L LEVER

46

20D-00-41171

PLATE¤ CAUTION

47

362-54-17320

PLATE¤ OPERATING

48

203-00-31330

PLATE¤ OPERATING

48A

205-00-71470

PLATE¤ OPERATING,PARKING BRAKE SWITCH

49

09685-00001

PLATE¤ OPERATING,SAFETY LOCK LEVER

50

20G-06-12380

PLATE¤ OPERATING,F-R LEVER

51

20D-00-41190

PLATE¤ OPERATING,TURN SIGNAL
