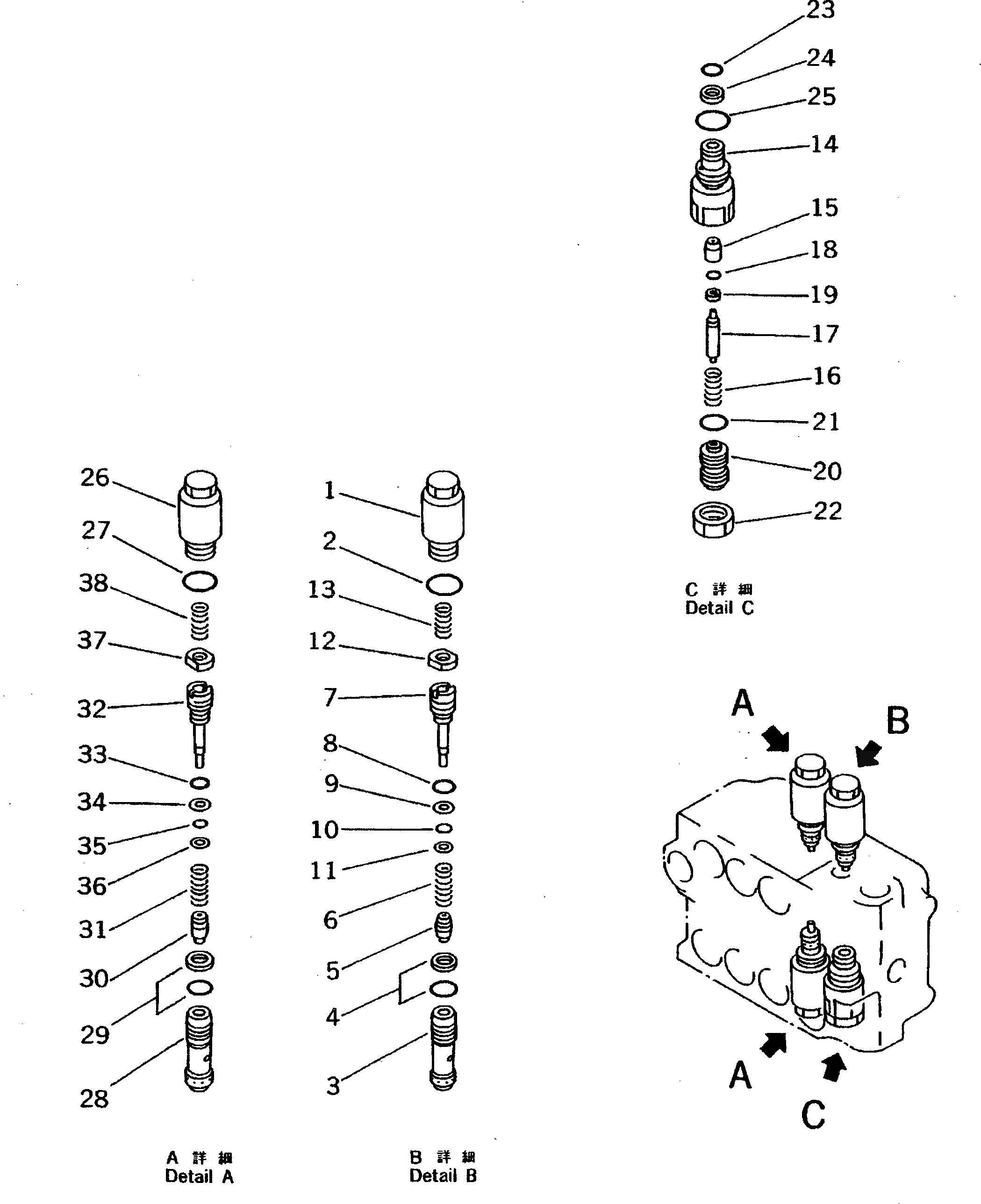

Запчасти Komatsu PW100NS-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/)(№9-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-84-21404

CONTROL VALVE ASS'Y,R.H.

|1

709-84-21402

CONTROL VALVE ASS'Y,R.H.

|1

700-81-61002

VALVE ASS'Y

1

700-80-62310

SLEEVE

2

07002-03034

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

RING,BACK-UP

10

O-RING

11

SEAL

12

NUT

13

700-80-62250

SPRING

|14

700-81-71001

SAFETY VALVE ASS'Y

14

SLEEVE

15

POPPET

16

SPRING

17

PISTON

18

O-RING

19

SEAL

20

SCREW

21

O-RING

22

NUT

23

700-22-11410

O-RING

24

700-80-64220

RING,BACK-UP

25

07002-03034

O-RING

|26

700-81-61002

VALVE ASS'Y

26

700-80-62310

SLEEVE

27

07002-03034

O-RING

28

VALVE

29

SEAL

30

POPPET

31

SPRING

32

PISTON

33

O-RING

34

RING,BACK-UP

35

O-RING

36

SEAL

37

NUT

38

700-80-62250

SPRING
