Запчасти Komatsu PW100NS-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

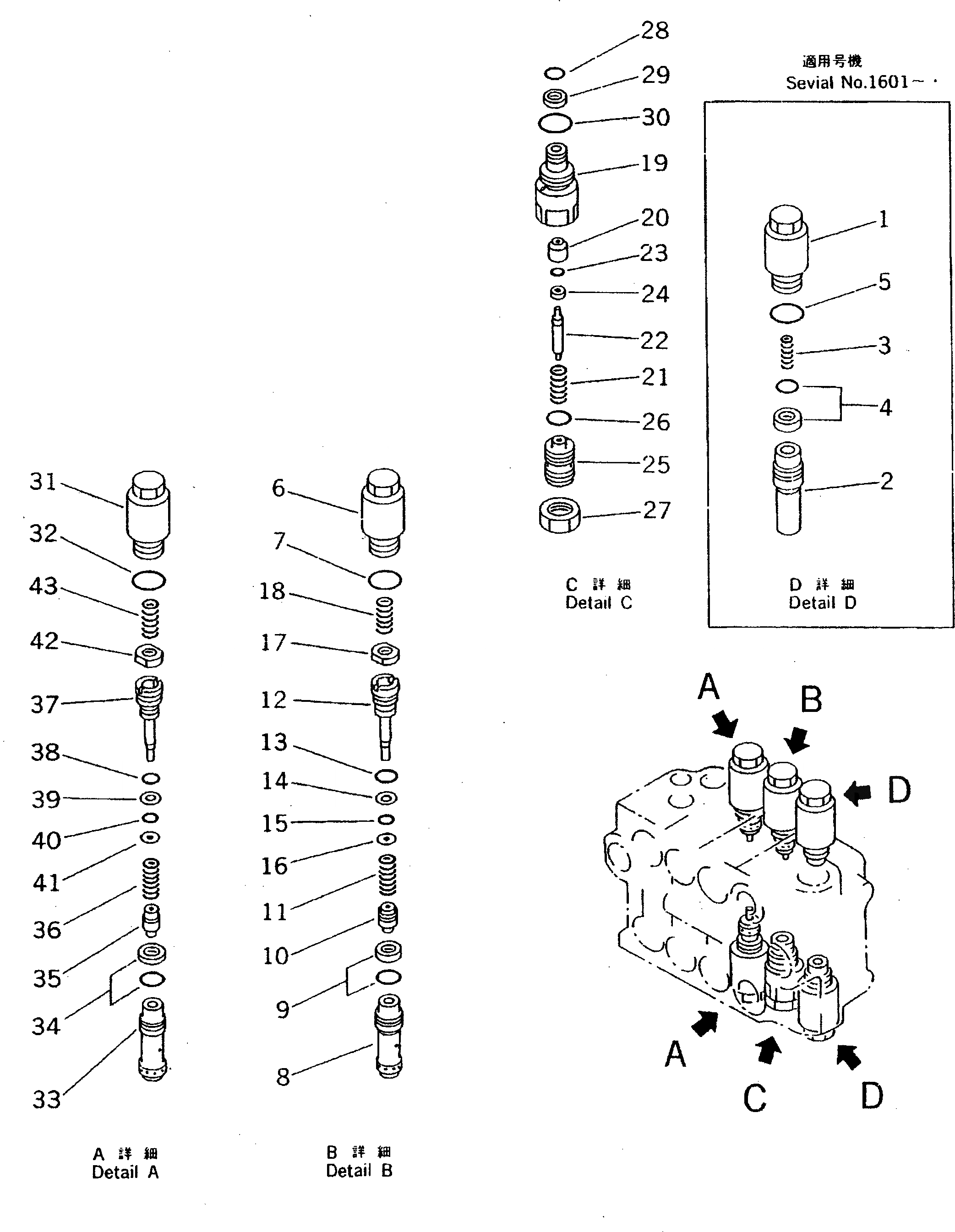

Схема запчастей Komatsu PW100NS-3 - УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

709-84-21403

CONTROL VALVE ASS'Y,R.H.

|1

709-84-21402

CONTROL VALVE ASS'Y,R.H.

|1

709-84-21400

CONTROL VALVE ASS'Y,R.H.

|1

700-81-81000

VALVE ASS'Y

1

700-80-62310

SLEEVE

2

VALVE

3

700-80-62250

SPRING

4

SEAL

5

07002-03034

O-RING

|6

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

|6

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

|6

700-81-63001

VALVE ASS'Y,SUCTION AND SAFETY

6

700-80-62310

SLEEVE

7

07002-03034

O-RING

8

VALVE

9

SEAL

10

POPPET

11

SPRING

|11

SPRING

12

PISTON

13

O-RING

14

RING,BACK-UP

15

O-RING

16

SEAL

17

NUT

|17

NUT

18

700-80-62250

SPRING

|19

700-81-71001

SAFETY VALVE ASS'Y

|19

700-81-74001

VALVE ASS'Y,SAFETY

19

SLEEVE

20

POPPET

21

SPRING

|21

SPRING

22

PISTON

23

O-RING

24

SEAL

25

SCREW

|25

SCREW

26

O-RING

27

NUT

28

700-22-11410

O-RING

29

700-80-64220

RING,BACK-UP

30

07002-03034

O-RING

|31

700-81-61002

VALVE ASS'Y,SAFETY

|31

700-81-61001

VALVE ASS'Y,SAFETY

31

700-80-62310

SLEEVE

32

07002-03034

O-RING

33

VALVE

34

SEAL

35

POPPET

36

SPRING

|36

SPRING

37

PISTON

38

O-RING

39

RING,BACK-UP

40

O-RING

41

SEAL

42

NUT

|42

NUT

43

700-80-62250

SPRING

Выбрано товаров: 60
