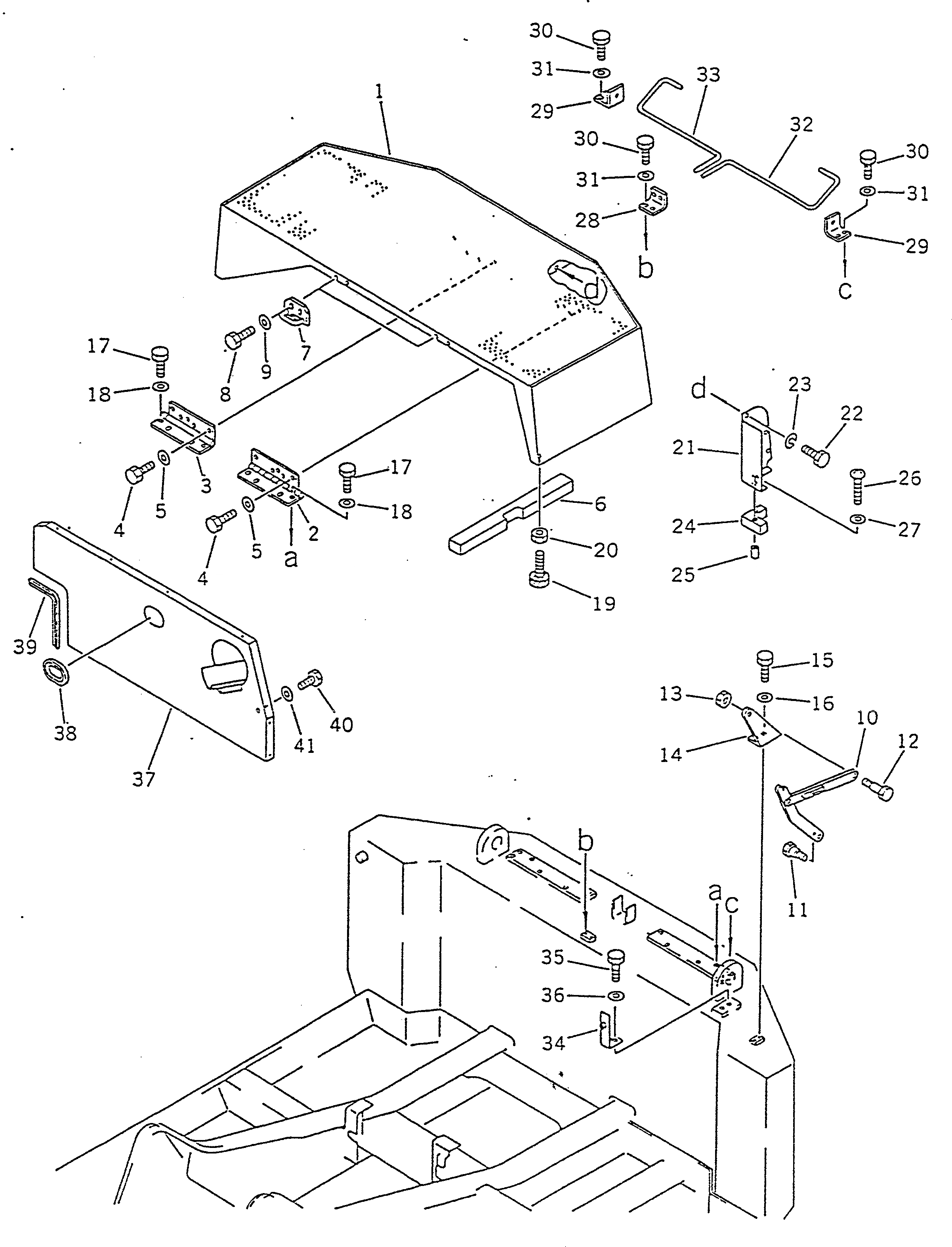

Запчасти Komatsu PW100NS-3 MACHINERY ОБСТАНОВКА (/)(№-8) ЧАСТИ КОРПУСА

|1

20D-54-00121

MACHINE CAB ASS'Y

|1

20D-54-00120

MACHINE CAB ASS'Y

1

20D-54-41311

HOOD

2

203-54-44950

HINGE,L.H.

3

203-54-44960

HINGE,R.H.

4

01010-51020

BOLT

5

01643-31032

WASHER

6

20D-54-41421

CUSHION

|6

20D-54-41420

CUSHION

7

21K-54-26320

BRACKET

8

01010-51025

BOLT

9

01643-31032

WASHER

10

20R-54-21430

STAY

11

20R-54-21450

BOLT

12

20R-54-21440

BOLT

13

01580-11008

NUT

14

203-54-42242

BRACKET

15

01010-51030

BOLT

16

01643-31032

WASHER

17

01010-51020

BOLT

18

144-854-1890

WASHER

19

201-54-21360

CUSHION

20

01580-10504

NUT

21

20D-54-41370

PLATE

22

01010-50825

BOLT

23

01602-20825

WASHER,SPRING

24

20D-54-41380

CUSHION

25

20D-54-41390

COLLAR

26

01370-00530

SCREW

27

01643-30623

WASHER

28

203-54-42280

PLATE

29

203-54-42270

PLATE

30

01010-51025

BOLT

31

01643-31032

WASHER

32

203-54-42570

BAR,L.H.

33

203-54-42580

BAR,R.H.

34

20D-54-41410

PLATE

35

01010-51016

BOLT

36

01643-31032

WASHER

37

20D-54-41350

COVER

38

20D-54-41470

TRIM

39

203-54-42840

TRIM

40

01010-51020

BOLT

41

01643-31032

WASHER
