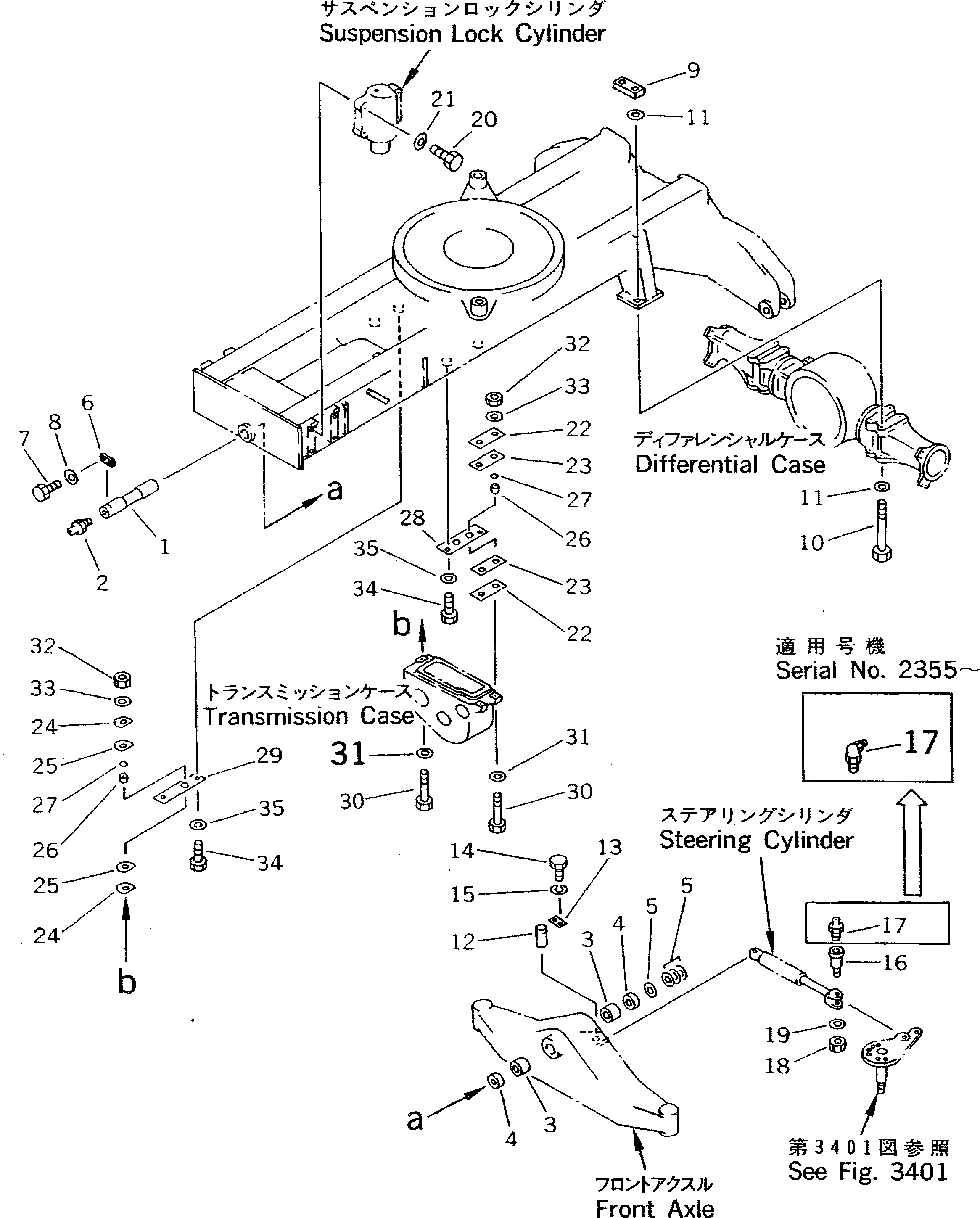

Запчасти Komatsu PW100N-3 ШАССИ (/)(№-9) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

1

20D-47-11210

PIN

2

07020-00000

FITTING,GREASE

3

20D-47-11220

BUSHING

4

07145-00065

SEAL,DUST

5

202-70-48150

SPACER¤ 0.5MM

|5

202-70-48140

SPACER¤ 1.0MM

6

04082-00312

LOCK

7

01010-51230

BOLT

8

01643-31232

WASHER

9

20G-47-11230

SEAT

10

20G-47-11210

BOLT

11

01643-32060

WASHER

12

20G-47-12140

PIN

13

04082-00212

LOCK

14

01010-51225

BOLT

15

01602-21236

WASHER,SPRING

16

20G-47-12151

PIN

17

07020-00900

FITTING,GREASE

|17

07020-00000

FITTING,GREASE

18

01598-02425

NUT

19

01643-32460

WASHER

20

01010-52490

BOLT

21

01643-32460

WASHER

22

20D-47-41330

PLATE

23

20D-47-41340

CUSHION

24

20D-47-41360

PLATE

25

20D-47-41370

CUSHION

26

20D-47-41350

COLLAR

27

07000-03032

O-RING

28

20D-47-41270

PLATE

29

20D-47-41320

PLATE

30

01011-52020

BOLT

31

01643-32060

WASHER

32

01580-12016

NUT

33

01640-22032

WASHER

34

01010-52050

BOLT

35

01643-32060

WASHER
