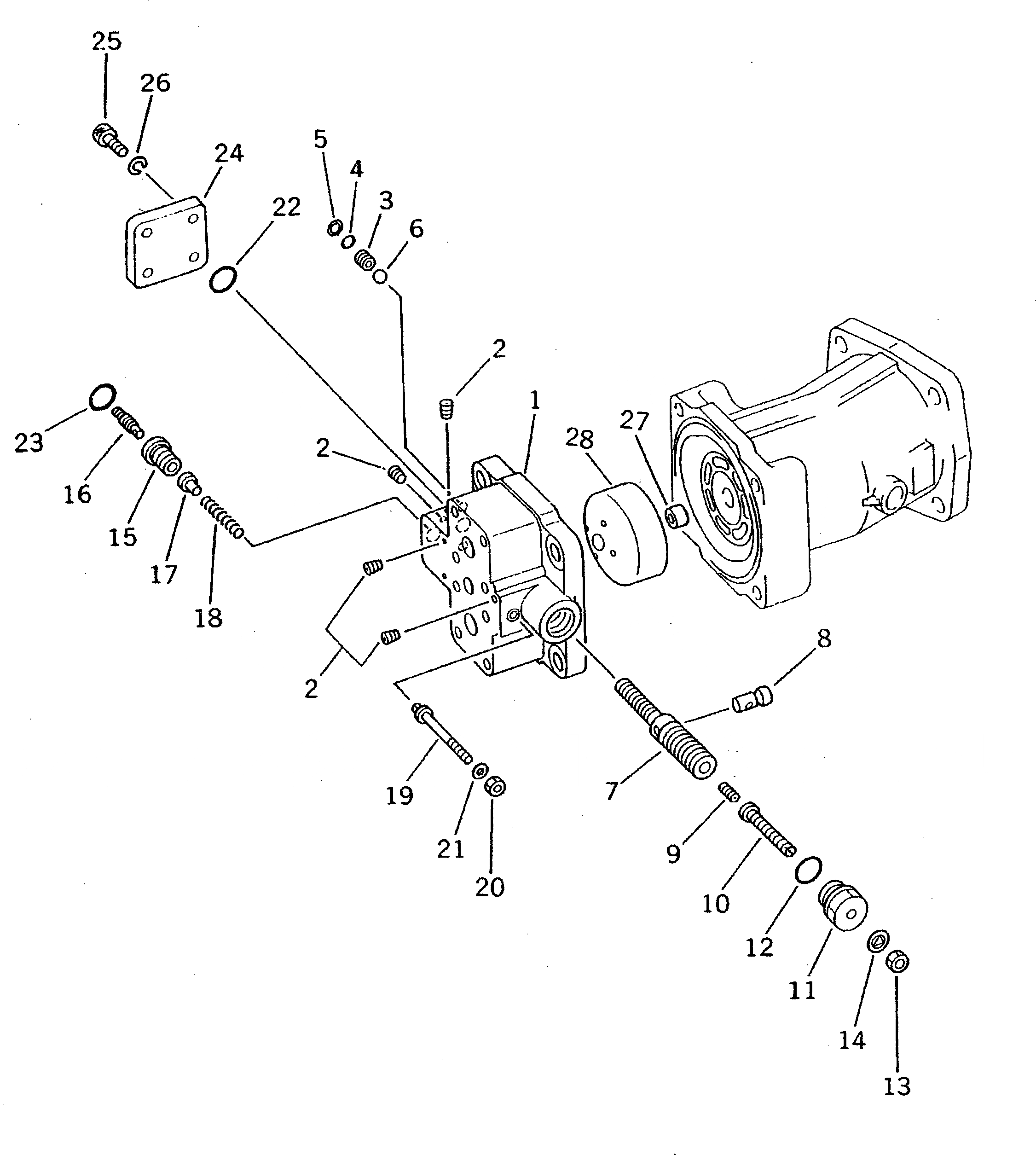

Запчасти Komatsu PW100N-3 МОТОР ХОДА (/) (МОТОР (/))(№-8) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-86-00302

TRAVEL MOTOR ASS'Y

|1

706-86-40202

MOTOR ASS'Y

|1

706-86-50102

REGULATOR ASS'Y

1

COVER,END

2

PLUG

3

706-86-51160

PLUG

4

07000-11008

O-RING

5

07001-01008

RING,BACK-UP

6

04260-00793

BALL

7

PISTON

8

PIN

9

SCREW

10

706-86-50220

SCREW

11

706-86-50080

PLUG

12

07002-13334

O-RING

13

01580-11210

NUT

14

706-86-50050

WASHER

15

SLEEVE

|15

SLEEVE

16

SPOOL

17

706-86-50121

SEAT,SPRING

|17

706-86-50120

SEAT,SPRING

18

706-86-50130

SPRING

19

706-86-50140

SCREW

20

01580-10605

NUT

21

706-86-50150

WASHER

22

07000-13025

O-RING

23

07000-13022

O-RING

24

706-86-50062

COVER

25

706-86-50210

BOLT

26

01602-21236

WASHER,SPRING

27

706-86-40071

BUSHING

28

706-86-40843

VALVE,PLATE
