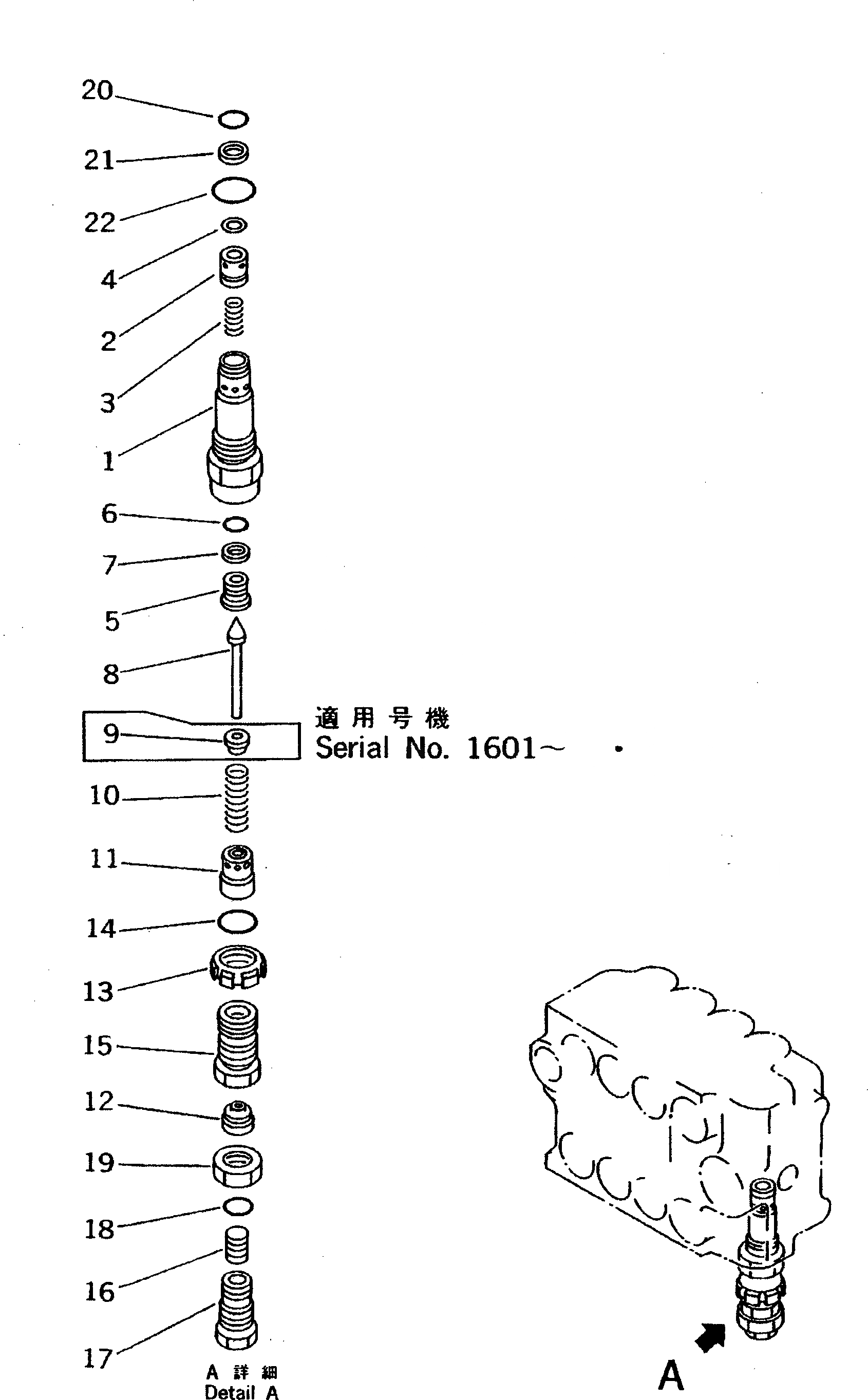

Запчасти Komatsu PW100N-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-84-21403

CONTROL VALVE ASS'Y,R.H.

|1

709-84-21402

CONTROL VALVE ASS'Y,R.H.

|1

709-84-21400

CONTROL VALVE ASS'Y,R.H.

|1

700-87-58000

VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-80-51390

SPRING

4

700-80-51350

RING,SNAP

5

SEAT

|5

SEAT

6

O-RING

7

RING,BACK-UP

8

700-80-61190

POPPET

|8

720-68-15540

POPPET

9

720-68-15550

RETAINER

10

709-20-51231

SPRING

|10

720-68-15560

SPRING

11

SLEEVE

12

700-80-51750

RETAINER

|12

700-80-51670

RETAINER

13

01530-03010

NUT

14

07002-03034

O-RING

15

700-80-51680

HOLDER

16

PISTON

17

PLUG

18

07000-02018

O-RING

19

07239-12410

NUT

20

700-13-31161

O-RING

21

700-80-51190

RING,BACK-UP

22

07002-03334

O-RING
