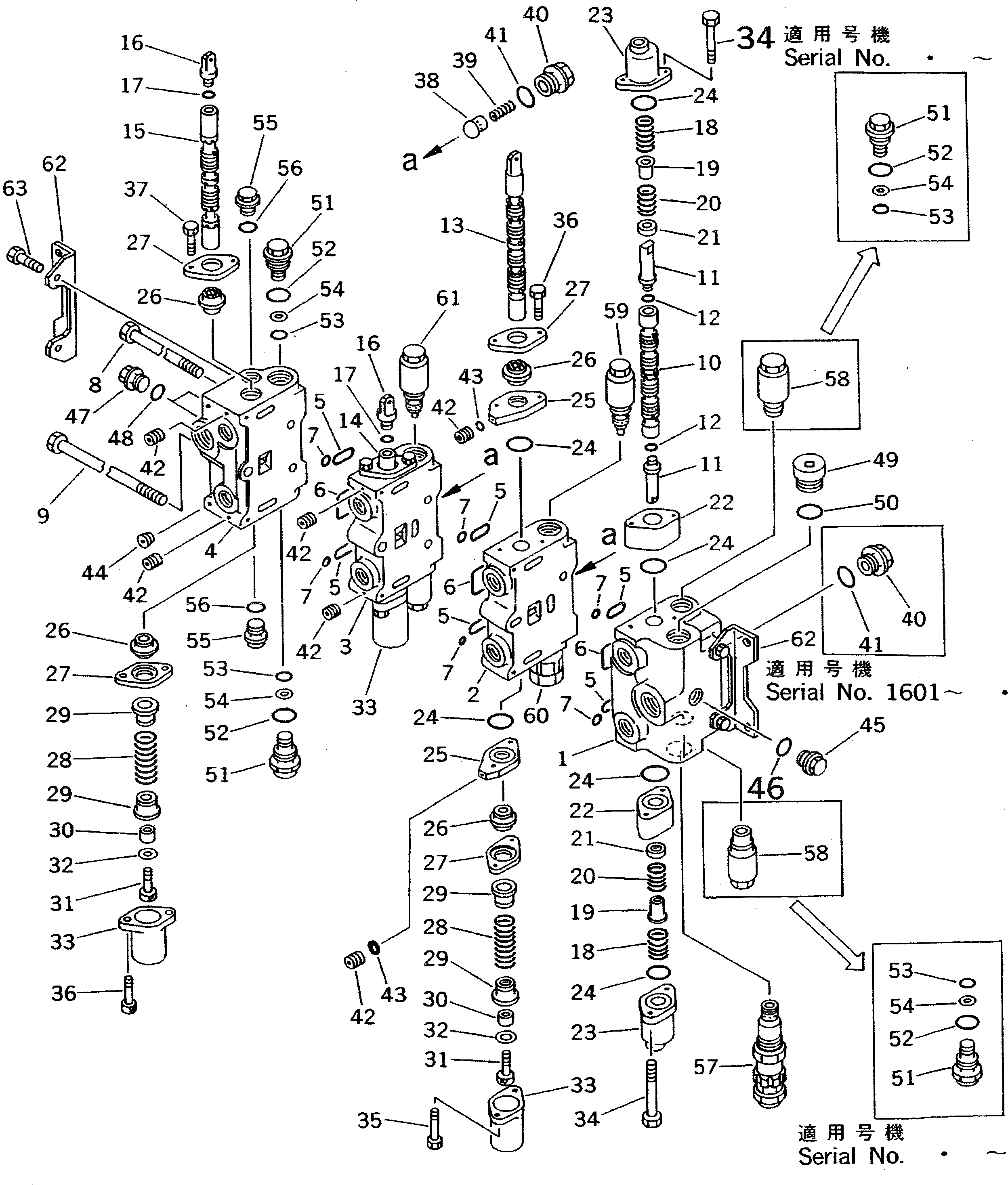

Запчасти Komatsu PW100N-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-84-21403
CONTROL VALVE ASS'Y,R.H.
|1
709-84-21402
CONTROL VALVE ASS'Y,R.H.
|1
709-84-21400
CONTROL VALVE ASS'Y,R.H.
1
BODY,VALVE
2
BLOCK,VALVE
3
BLOCK,VALVE
4
COVER,VALVE
5
07000-03030
O-RING
6
07000-13050
O-RING
7
07000-01007
O-RING
8
700-84-11172
BOLT
9
700-84-13240
BOLT
10
SPOOL,R.H. TRAVEL
|10
SPOOL,R.H. TRAVEL
11
700-84-14950
JOINT
12
07002-11223
O-RING
13
SPOOL,BUCKET
14
SPOOL,BOOM LOW
15
SPOOL,ARM HIGH
16
700-84-11870
JOINT
17
07002-11223
O-RING
18
700-84-14920
SPRING
19
700-84-14940
RETAINER
20
700-84-14910
SPRING
21
700-84-13781
RETAINER
22
700-84-14931
PLATE
|22
700-84-14930
PLATE
23
700-84-12510
CASE
24
700-84-11240
O-RING
25
700-84-13921
PLATE
26
700-84-13910
SEAL
27
700-84-13891
PLATE
28
700-84-11650
SPRING
29
700-84-13711
RETAINER
30
700-84-11641
COLLAR
31
01252-30830
BOLT
32
01643-30823
WASHER
33
700-84-11390
COVER
34
01252-30650
BOLT
35
01252-30630
BOLT
36
01252-30625
BOLT
37
01252-30612
BOLT
38
700-42-31460
VALVE
39
700-42-31470
SPRING
40
700-84-11320
PLUG
|40
700-84-11320
PLUG
41
07002-13034
O-RING
|41
07002-13034
O-RING
42
706-86-51170
PLUG
43
07000-01007
O-RING
44
07043-70108
PLUG
45
700-22-11370
PLUG
46
07002-12434
O-RING
47
709-30-62150
PLUG
48
07002-02034
O-RING
49
07040-13316
PLUG
50
07002-13334
O-RING
51
700-84-13960
PLUG
|51
700-84-13960
PLUG
52
07002-03034
O-RING
|52
07002-03034
O-RING
53
700-22-11410
O-RING
|53
700-22-11410
O-RING
54
700-80-64220
RING,BACK-UP
|54
700-80-64220
RING,BACK-UP
55
709-30-62150
PLUG
56
07002-02034
O-RING
57
700-87-58000
VALVE ASS'Y,RELIEF
58
700-81-81000
VALVE ASS'Y,SUCTION
59
700-81-61002
VALVE ASS'Y,SAFETY
|59
700-81-61001
VALVE ASS'Y,SAFETY
|59
700-81-63001
VALVE ASS'Y,SAFETY
60
700-81-71001
SAFETY VALVE ASS'Y
|60
700-81-74001
VALVE ASS'Y,SAFETY
61
700-81-61002
VALVE ASS'Y,SAFETY
|61
700-81-61001
VALVE ASS'Y,SAFETY
62
700-84-11330
BRACKET
63
01010-51020
BOLT
Выбрано товаров: 78
