Запчасти Komatsu PW100-3 ПЕРЕДН. КУЛАК И ПОПЕРЕЧНАЯ РУЛЕВ. ТЯГА(№-) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

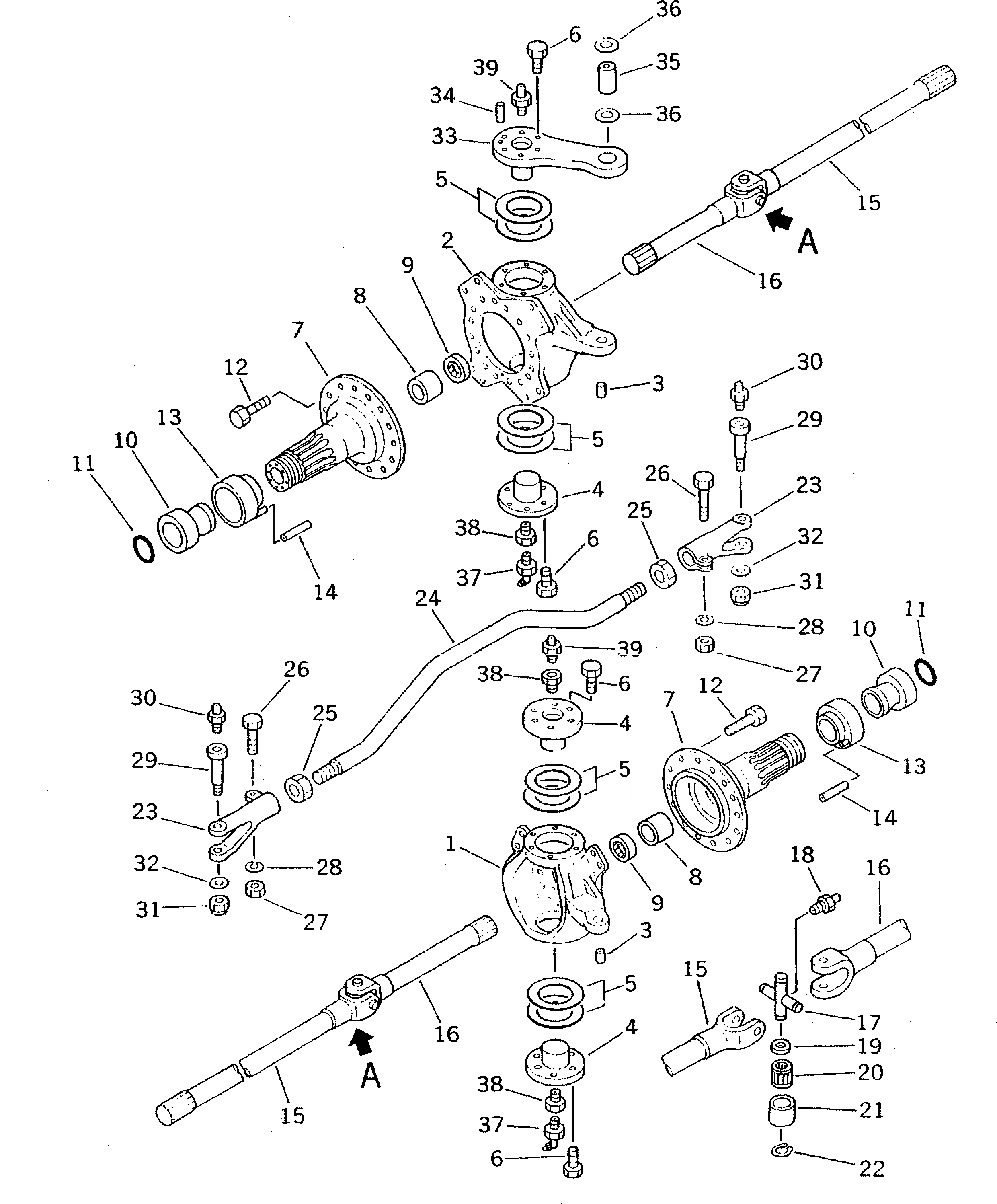

Схема запчастей Komatsu PW100-3 - ПЕРЕДН. КУЛАК И ПОПЕРЕЧНАЯ РУЛЕВ. ТЯГА(№-) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

Артикул

Название

Примечание

Количество

|1

20D-22-40000

FRONT AXLE ASS'Y

1

20G-22-23511

KNUCKLE,R.H.

2

20G-22-23520

KNUCKLE,L.H.

3

22X-22-13530

BUSHING

4

20G-22-23811

PIN,KING

5

20G-22-13850

SHIM¤ 0.10MM

|5

20G-22-13860

SHIM¤ 0.15MM

|5

20G-22-13870

SHIM¤ 0.20MM

|5

20G-22-13880

SHIM¤ 0.50MM

6

01010-62050

BOLT

7

20G-22-23550

SPINDLE

8

20G-22-12570

BUSHING

9

20G-22-12590

SEAL,OIL

10

20G-22-22730

RETAINER

11

07000-02100

O-RING

12

01010-61840

BOLT

13

20G-22-22780

SCAVENGER

14

07270-00505

TUBE

|15

20G-22-22511

JOINT ASS'Y,YOKE

|15

20G-22-22510

JOINT ASS'Y,YOKE

15

20G-22-12531

SHAFT,YOKE

|15

20G-22-12530

SHAFT,YOKE

16

20G-22-22521

SHAFT,YOKE

|16

20G-22-12520

SHAFT,YOKE

17

20G-22-22691

SPIDER ASS'Y

|17

20G-22-22690

SPIDER ASS'Y

|17

SPIDER

18

20G-22-22561

FITTING,GREASE

|18

20G-22-22560

FITTING,GREASE

|19

BEARING ASS'Y

19

GASKET

20

BEARING,NEEDLE

21

CASE

22

20G-22-12551

RING,SNAP

|22

20G-22-12550

RING,SNAP

23

22X-22-13320

CLEVIS

24

20G-22-13311

ROD,TIE

25

01583-03923

NUT

26

01010-31265

BOLT

27

01580-01210

NUT

28

01602-01236

WASHER,SPRING

29

22X-22-13330

PIN

30

07020-00000

FITTING,GREASE

31

01598-02021

NUT

32

01643-32060

WASHER

33

20G-22-23821

STEERING ARM ASS'Y

34

04022-25045

PIN,DOWEL

35

07143-10404

BUSHING

36

07145-00040

SEAL,DUST

37

07020-00675

FITTING,GREASE

38

22X-47-18220

NIPPLE

39

07020-00000

FITTING,GREASE

Выбрано товаров: 52
