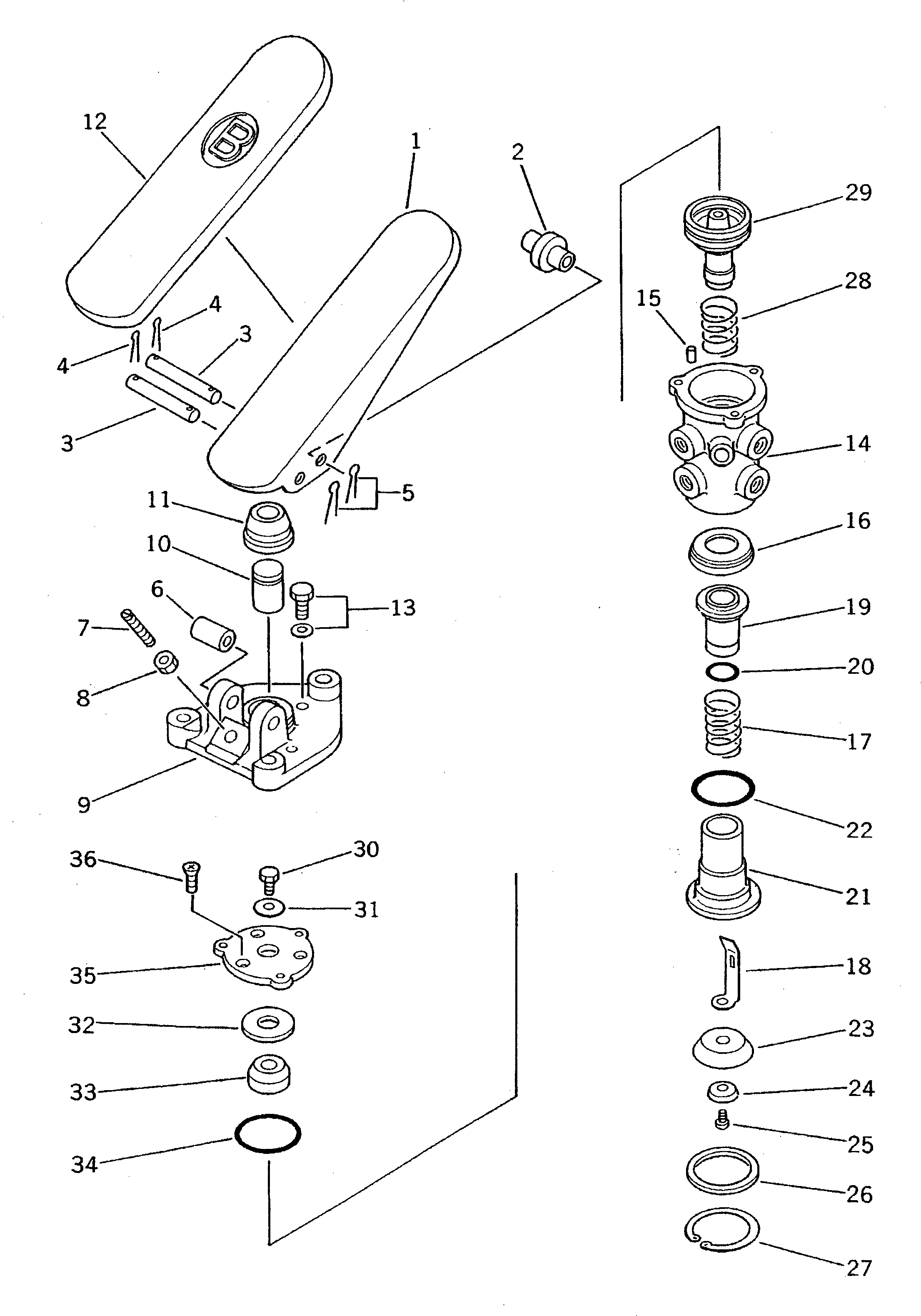

Запчасти Komatsu PW100-3 ТОРМОЗНОЙ КЛАПАН УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20G-68-11131

BRAKE VALVE ASS'Y

|1

20G-68-11130

BRAKE VALVE ASS'Y

|1

20G-68-18250

TREADLE ASS'Y

1

TREADLE

|1

20G-68-19160

TREADLE

2

20G-68-19210

ROLLER

3

20G-68-19181

PIN

|3

20G-68-19180

PIN

4

20G-68-19190

PIN,COTTER

5

PIN,COTTER

6

PIPE

7

SCREW,SET

8

NUT

9

20G-68-19130

PLATE

10

20G-68-19141

PLUNGER

|10

20G-68-19140

PLUNGER

11

BOOT,PLUNGER (K6)

12

20G-68-19170

COVER

13

BOLT AND WASHER

|14

20G-68-19100

BASIC ASS'Y

14

BODY

15

FILTER,VENT (K6)

|16

20G-68-18100

VALVE ASS'Y

16

RETAINER

17

SPRING,VALVE (K6)

18

20G-68-18120

SPRING

19

VALVE

20

O-RING (K6)

21

SEAT (K6)

22

O-RING (K6)

23

DIAPHRAGM (K6)

24

WASHER

25

20G-68-18170

SCREW AND WASHER

26

WASHER

27

20G-68-18180

RING,SNAP

28

SPRING (K6)

|29

20G-68-19120

PISTON ASS'Y

29

PISTON

30

20G-68-18210

SCREW

31

WASHER

32

SEAT,SPRING

33

RUBBER (K6)

34

O-RING (K6)

35

SPACER

36

SCREW
