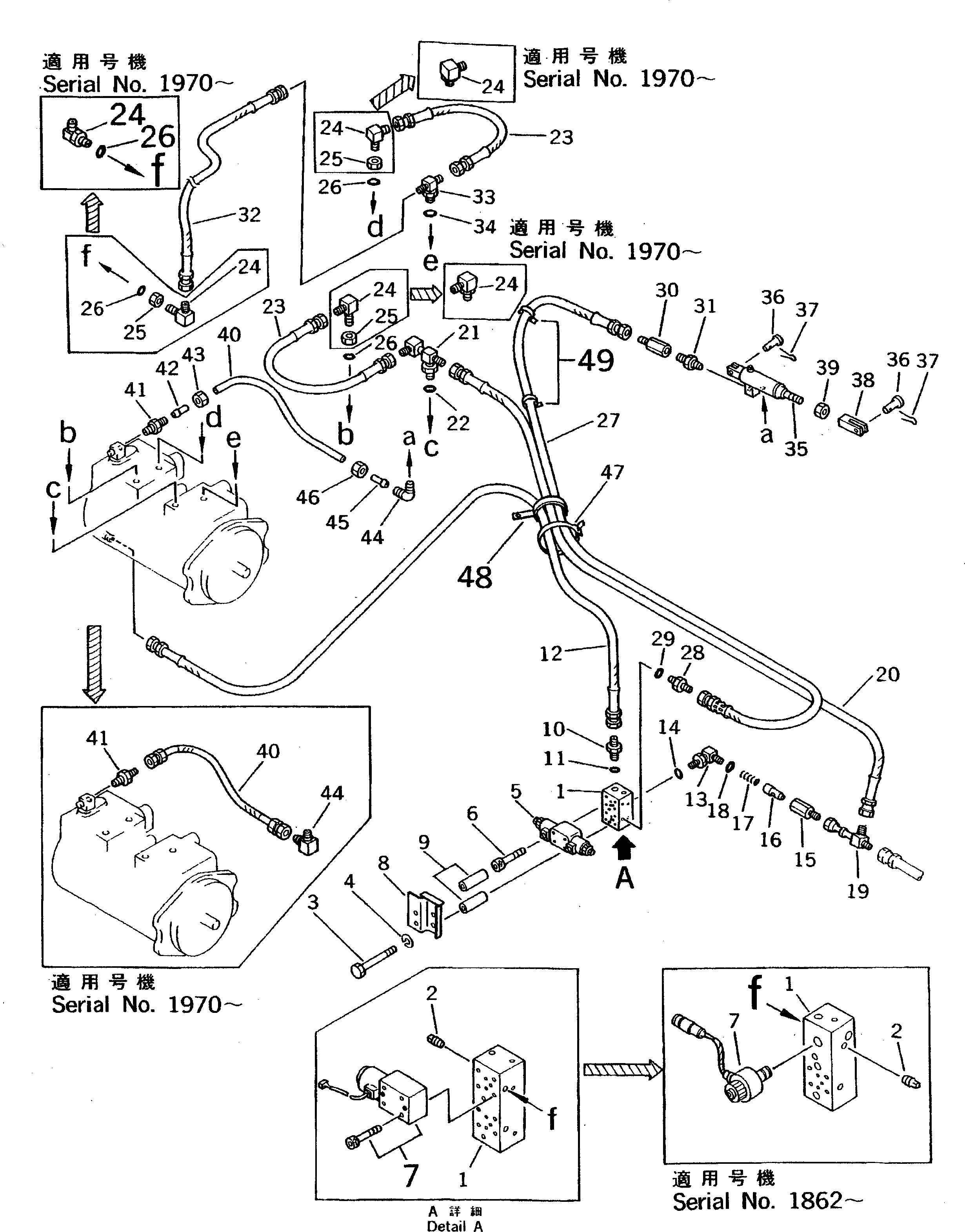

Запчасти Komatsu PW100-3 ГИДРОЛИНИЯ (ДЛЯ ХОДА) (КЛАПАН TO/FROM НАСОС) (С OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20D-62-42591

BLOCK

|1

20D-62-42590

BLOCK

2

07042-20108

PLUG

|2

07042-00108

PLUG

3

01011-51240

BOLT

4

01602-21236

WASHER,SPRING

5

203-60-41600

SOLENOID VALVE ASS'Y,AUTO DECELERATION

6

01252-40545

BOLT

7

203-60-42240

SOLENOID VALVE ASS'Y,MODE SELECT

|7

21K-60-12301

SOLENOID VALVE ASS'Y,MODE SELECT

8

20D-62-42421

COVER

9

203-62-44510

SPACER

10

205-62-55270

NIPPLE

11

07002-11423

O-RING

|11

07002-01423

O-RING

12

07102-20312

HOSE

13

20D-62-42440

ELBOW

14

07002-11423

O-RING

|14

07002-01423

O-RING

15

20D-62-42370

BODY

16

20D-62-42381

VALVE

17

144-40-21550

SPRING

18

07002-11423

O-RING

|18

07002-01423

O-RING

19

20D-62-42360

TUBE

20

07102-20210

HOSE

21

20D-62-42150

TEE

22

07002-11423

O-RING

|22

07002-01423

O-RING

23

07102-20203

HOSE

24

07235-10210

ELBOW

|24

07232-20210

ELBOW

25

07239-11408

NUT

26

07002-11423

O-RING

|26

07002-01423

O-RING

27

20G-62-15430

HOSE

28

07230-20210

UNION

|28

07230-10210

UNION

29

07002-11423

O-RING

30

20G-62-15760

NIPPLE

31

208-06-11220

NIPPLE

32

07102-20210

HOSE

|32

203-62-44610

HOSE

33

208-26-11611

TEE

34

07002-11423

O-RING

|34

07002-01423

O-RING

35

20D-62-42610

CYLINDER ASS'Y

36

04205-11028

PIN

37

04050-13020

PIN,COTTER

38

203-43-44270

YOKE

39

01583-11408

NUT

40

07102-20204

HOSE

|40

07822-00404

TUBE

41

208-06-11220

NIPPLE

|41

07836-00410

CONNECTOR

42

07831-00411

SLEEVE

43

07832-00410

NUT

44

203-62-42920

ELBOW

|44

07834-00410

ELBOW

45

07831-00411

SLEEVE

46

07832-00410

NUT

47

08034-00823

BAND

48

20D-03-11241

CLIP

49

08034-00519

BAND
