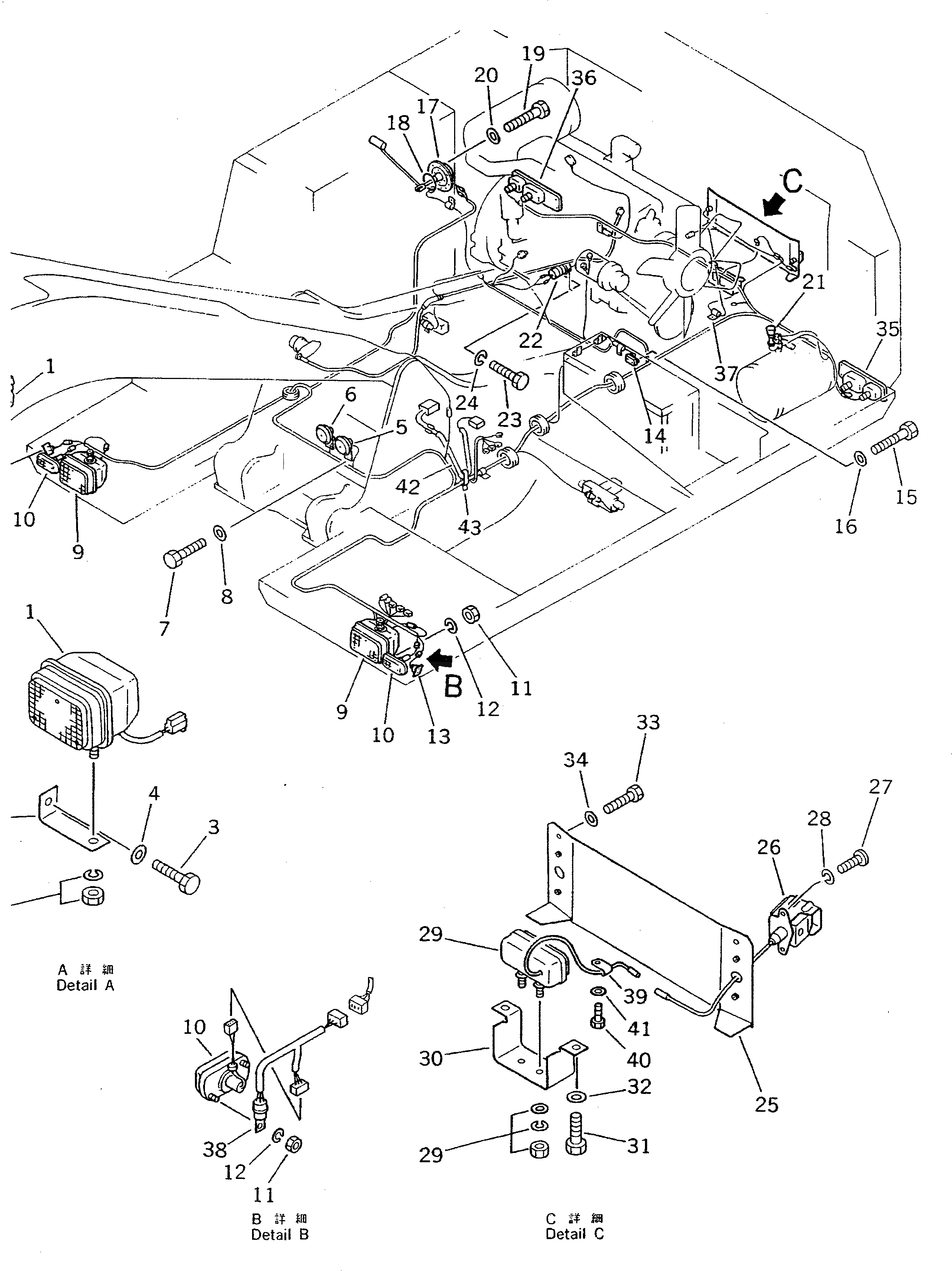

Запчасти Komatsu PW100-3 ЭЛЕКТРИКА (/)(№-8) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

22W-06-12381

LAMP ASS'Y,WORK

|1

22W-06-12170

BULB¤ 24V

2

203-06-41130

BRACKET

3

01010-51430

BOLT

4

01643-31445

WASHER

5

08160-52400

HORN

6

205-06-64430

HORN

7

01010-50810

BOLT

8

01641-20812

WASHER

9

20G-06-13350

LAMP,HEAD

|9

20G-06-13150

LAMP,HEAD

|9

20G-06-13360

BULB¤ 50/60W

|9

20S-06-13240

BULB

10

20G-06-13110

LAMP ASS'Y,COMBINATION

|10

08104-12420

BULB¤ 25/10W

|10

IC13E110-0010

LENS

11

01580-10504

NUT

12

01601-20513

WASHER,SPRING

13

20D-06-12430

LAMP ASS'Y,SIDE WINKER

|13

08102-02403

BULB¤ 3W

|13

IC15F080-1001

LENS

14

22W-06-15860

SWITCH,LIMIT

15

01010-51035

BOLT

16

01643-31032

WASHER

17

175-06-38181

SENSOR,FUEL

18

07000-02085

O-RING

19

01010-51025

BOLT

20

01643-31032

WASHER

21

22W-44-11661

SWITCH,AIR PRESSURE

22

08165-22400

BUZZER,BACK

23

01010-51016

BOLT

24

01602-21030

WASHER,SPRING

25

20D-06-41250

BRACKET

26

22W-06-12390

LAMP ASS'Y,LICENSE PLATE

|26

08110-12410

BULB¤ 12W

|26

IC161140-0011

LENS

27

01220-40512

SCREW

28

01601-20513

WASHER,SPRING

29

20B-06-11910

LAMP ASS'Y,BACK

|29

08110-02410

BULB¤ 10W

30

20D-06-41240

BRACKET

31

01010-51020

BOLT

32

01643-31032

WASHER

33

01010-51020

BOLT

34

01643-31032

WASHER

35

20G-06-13210

LAMP ASS'Y,COMBINATION¤ L.H.

|35

08105-12420

BULB¤ 25W

|35

08104-12420

BULB¤ 25/10W

|35

IC14G037-1001

LENS

36

20G-06-13220

LAMP ASS'Y,COMBINATION¤ R.H.

|36

08105-12420

BULB¤ 25W

|36

08104-12420

BULB¤ 25/10W

|36

IC14G036-1001

LENS

37

08036-10814

CLIP

38

20D-06-41370

WIRE ASS'Y

|38

22W-06-13450

RELAY ASS'Y

39

08036-10610

CLIP

40

01010-50816

BOLT

41

01643-30823

WASHER

42

20D-06-41350

WIRE,(FOR STEERING AUTO SELECTOR)

43

08034-00414

BAND,(FOR STEERING AUTO SELECTOR)
