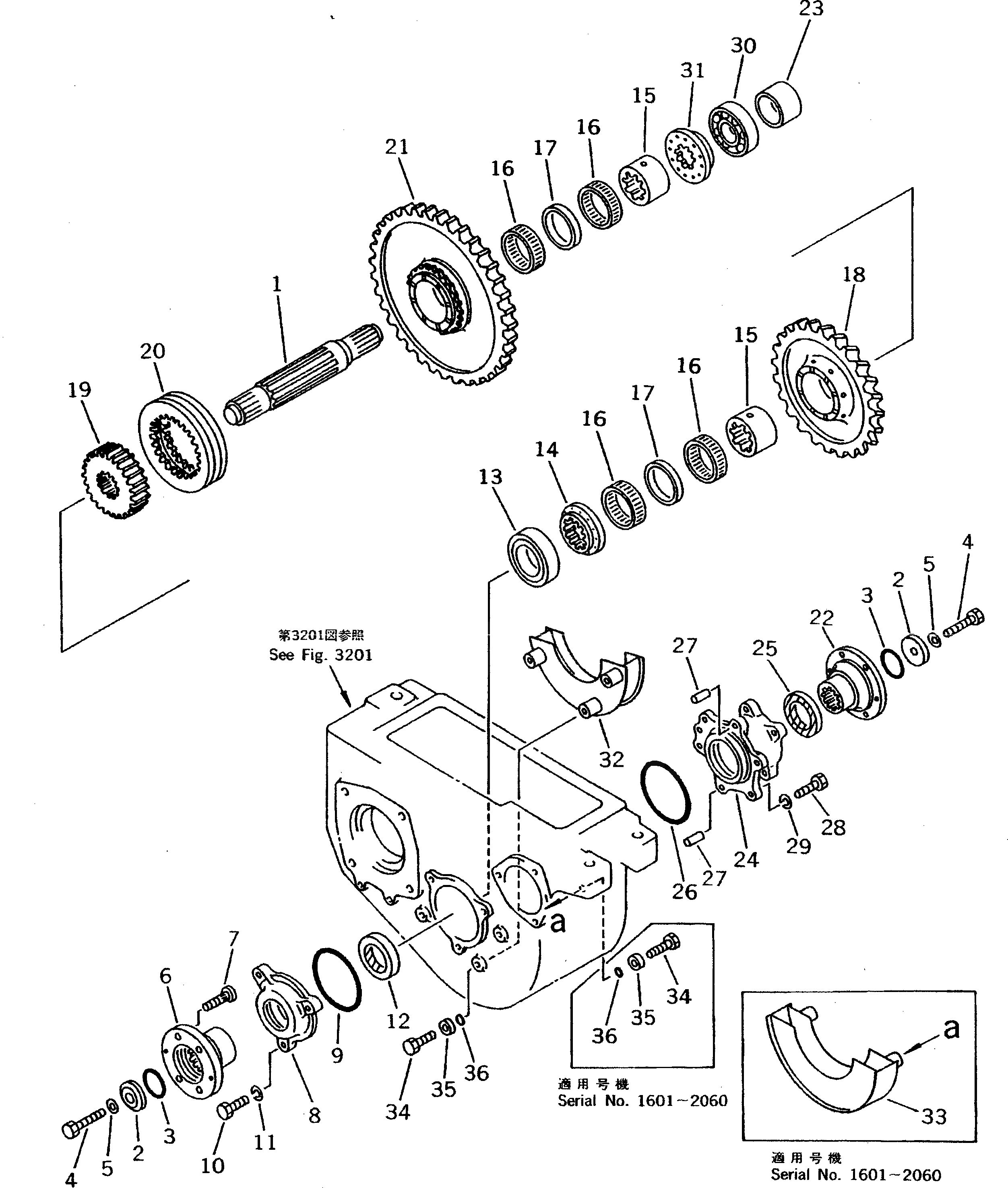

Запчасти Komatsu PW100-3 ТРАНСМИССИЯ (/) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА
№
Артикул
Название
Примечание
Количество
|$0
20D-14-00023
TRANSMISSION ASS'Y
|$1
20D-14-00022
TRANSMISSION ASS'Y
|$2
20D-14-00021
TRANSMISSION ASS'Y
|$3
20D-14-00020
TRANSMISSION ASS'Y
1
20D-14-41510
SHAFT
2
362-15-13270
PLATE
3
20B-09-17110
O-RING
4
01050-51295
BOLT
5
01643-31232
WASHER
6
20D-14-41610
COUPLING
6
20B-14-22340
COUPLING
7
20G-14-14110
BOLT
8
20G-14-12260
CAGE
8
20D-14-41250
CAGE
9
07000-02110
O-RING
9
07000-02115
O-RING
10
01010-51030
BOLT
11
01602-21030
WASHER,SPRING
12
07012-10058
SEAL,OIL
13
06044-00309
BEARING,ROLLER
14
20G-14-12490
SLIDER
15
20G-14-12230
COLLAR
16
20B-09-11120
BEARING
17
20G-14-12270
COLLAR
18
20D-14-41380
GEAR
18
20D-14-41320
GEAR
19
20G-14-12480
GEAR
20
20G-14-12220
GEAR
21
20D-14-41340
GEAR
22
20D-14-41620
COUPLING
22
20B-14-11450
COUPLING
23
20B-14-22310
COLLAR
24
20G-14-12280
CAGE
24
20D-14-41230
CAGE
25
07012-10058
SEAL,OIL
26
07000-02110
O-RING
26
07000-02115
O-RING
27
04020-01024
PIN,DOWEL
28
01010-51035
BOLT
29
01602-21030
WASHER,SPRING
30
06040-06211
BEARING,BALL
31
20G-14-12240
SLIDER
32
20D-14-41471
COVER
32
20D-14-41470
COVER
33
20D-14-41480
COVER
34
01090-51035
BOLT
34
01090-51035
BOLT
35
113-15-21260
WASHER
35
113-15-21260
WASHER
36
07002-01023
O-RING
36
07002-01023
O-RING
Выбрано товаров: 51
