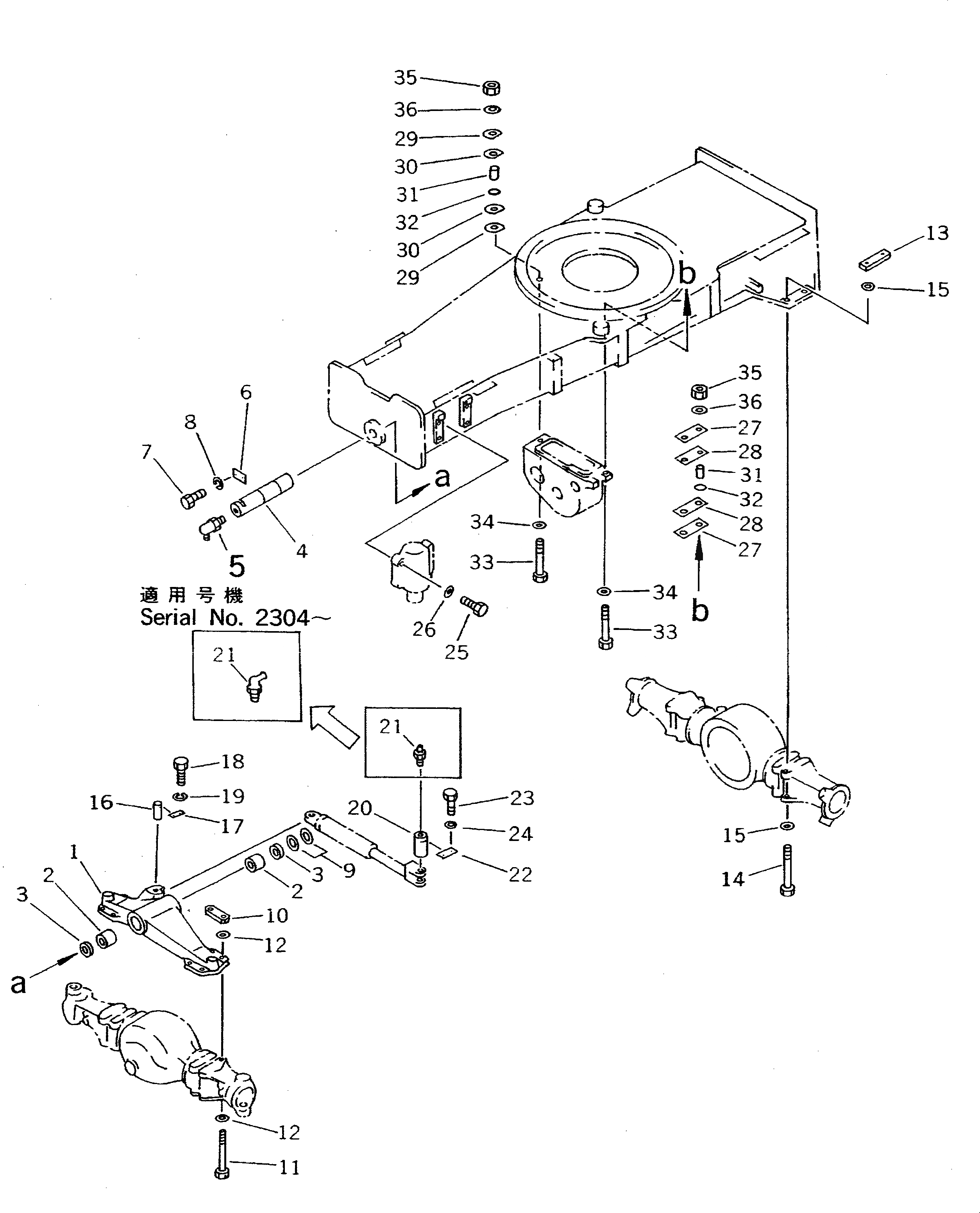

Запчасти Komatsu PW100-3 ШАССИ (/)(№-) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|$0

22C-47-00010

BRACKET ASS'Y

|$1

20D-47-00012

BRACKET ASS'Y

|$2

20D-47-00011

BRACKET ASS'Y

1

BRACKET

1

BRACKET

1

BRACKET

2

20G-47-12130

BUSHING

3

07145-00075

SEAL,DUST

4

20G-47-12120

PIN

5

07020-00900

FITTING,GREASE

6

04082-00514

LOCK

7

01010-51435

BOLT

8

01602-21442

WASHER,SPRING

9

202-70-48150

SPACER, 0.5MM

9

202-70-48140

SPACER, 1.0MM

10

20G-47-11220

SEAT

11

20G-47-11210

BOLT

12

01643-32060

WASHER

13

20D-47-41590

SEAT

14

20G-47-11210

BOLT

15

01643-32060

WASHER

16

20G-47-12140

PIN

17

04082-00212

LOCK

18

01010-51225

BOLT

19

01602-21236

WASHER,SPRING

20

20D-47-41681

PIN

21

07020-00900

FITTING,GREASE

21

07020-00000

FITTING,GREASE

22

20D-47-41691

PLATE

23

01010-51230

BOLT

24

01643-31232

WASHER

25

01010-52490

BOLT

26

01643-32460

WASHER

27

20D-47-41330

PLATE

28

20D-47-41340

CUSHION

29

20D-47-41360

PLATE

30

20D-47-41370

CUSHION

31

20D-47-41351

COLLAR

32

07000-03032

O-RING

33

01011-52065

BOLT

34

01643-32060

WASHER

35

01580-12016

NUT

36

01643-32060

WASHER
