Запчасти Komatsu PW100-3 МАРКИРОВКА (АНГЛ.)(№8-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

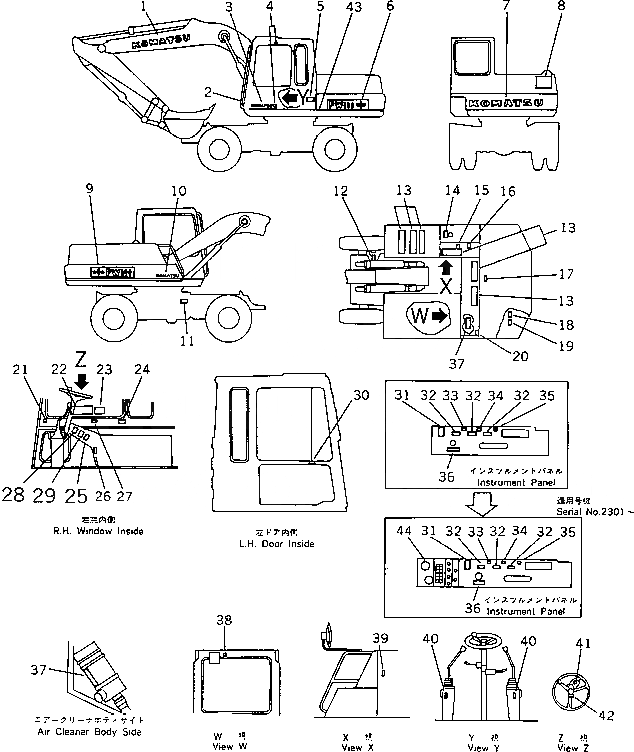

Схема запчастей Komatsu PW100-3 - МАРКИРОВКА (АНГЛ.)(№8-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

09690-41250

PLATE, MARK,KOMATSU

2

205-54-76480

PLATE,FRONT CAB UNDER

3

09690-50500

PLATE, MARK,KOMATSU

4

205-00-63770

PLATE

5

09602-01643

PLATE, NAME

5

205-00-71540

SCREW

5

01220-60408

SCREW

6

20D-00-41110

PLATE, MARK,PW100, L.H.

7

203-00-41131

PLATE, MARK,KOMATSU

8

09133-03000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

20D-00-41120

PLATE, MARK,PW100, R.H.

10

09690-50500

PLATE, MARK,KOMATSU

11

PLATE, NAME,SYMBOL

12

20B-98-29180

PLATE, SAFETY,STEERING HOSE CHANGE

13

154-54-23260

SEAT,NONSKID

14

09652-30121

PLATE, CAUTION,FUEL

14

09669-00002

PLATE, CAUTION,FUEL

15

09669-00003

PLATE, CAUTION,GAUGE, HYDRAULIC TANK

16

09653-03010

PLATE, SAFETY,HYDRAULIC TANK CAP

16

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

17

09667-03000

PLATE, SAFETY,ENGINE COVER

18

09650-30104

PLATE, INSTRUCTION,RADIATOR

18

09650-30103

PLATE, INSTRUCTION,RADIATOR

19

09668-03000

PLATE, SAFETY,RADIATOR CAP

20

09152-03000

PLATE, SAFETY,AIR TANK

21

205-00-63360

PLATE, CAUTION

22

20G-00-11720

PLATE, OPERATING

23

20D-00-41340

PLATE, OPERATING

24

205-00-63550

PLATE, CAUTION

25

205-00-63390

PLATE, CAUTION

26

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

27

09651-03000

PLATE, SAFETY,BEFORE OPERATING

28

09173-03000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

29

20G-00-11450

PLATE, CAUTION

30

205-00-71340

PLATE, OPERATING,DOOR LOCK

31

09683-30060

PLATE, OPERATING

32

09685-00002

PLATE, OPERATING,LOCK LEVER

33

20G-00-11850

PLATE, OPERATING,SUSPENSION LOCK

34

20G-00-11870

PLATE, OPERATING,BRAKE LOCK

35

20G-00-11860

PLATE, OPERATING,PARKING BRAKE

36

20G-00-11830

PLATE, OPERATING,H-L LEVER

37

09641-30161

PLATE, INSTRUCTION,AIR CLEANER

38

205-00-63350

PLATE, CAUTION,AUTO LOCK

39

203-00-31120

PLATE, INSTRUCTION,LEVEL GAUGE HYDRAULIC TANK

40

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

41

20G-06-12380

PLATE, OPERATING,F-R LEVER

42

20D-00-41190

PLATE, OPERATING

43

142-54-16170

STRIPE

44

20B-00-31160

PLATE,WORKING RANGE

Выбрано товаров: 49
