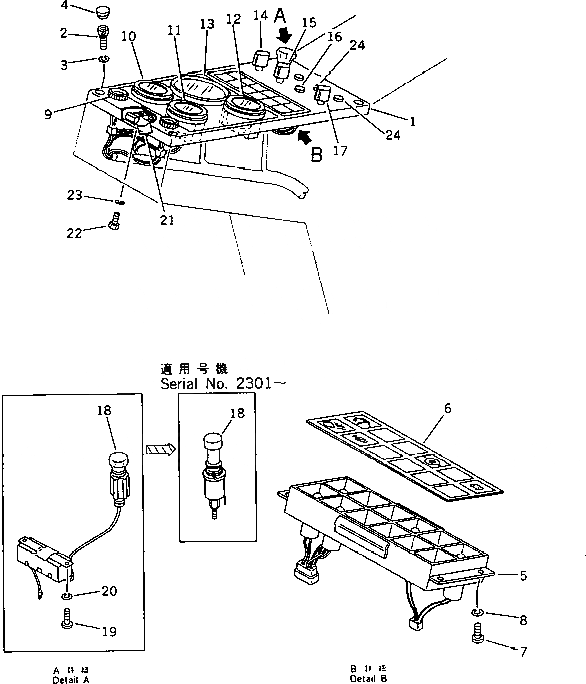

Запчасти Komatsu PW100-3 ПАНЕЛЬ МОНИТОРА И КОМПОНЕНТЫ (БЕЗ OLSS)(№89-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20G-06-12112

PANEL

2

01252-40612

BOLT

3

01602-20619

WASHER,SPRING

4

7861-21-1190

CAP

5

20D-06-41121

LAMP ASS'Y

5

20G-06-12161

BRACKET

5

21T-06-16620

LAMP ASS'Y

5

08111-02430

BULB, 3W

6

20D-06-41131

PLATE

7

01220-40410

SCREW

8

01601-20410

WASHER,SPRING

9

22W-06-13270

LAMP,INDICATOR

10

208-06-11280

GAUGE,WATER TEMPERATURE

11

20D-68-12630

GAUGE,AIR PRESSURE

12

195-06-23170

GAUGE,FUEL

13

20B-06-21210

TACHOMETER

13

20D-06-41140

TACHOMETER

14

205-06-71341

SWITCH,WIPER

14

205-06-71660

KNOB

14

205-06-71390

SWITCH

15

205-06-71331

SWITCH,LAMP

15

205-06-71650

KNOB

15

205-06-71380

SWITCH

16

09415-00706

CAP

17

20G-06-12330

SWITCH,WORK LAMP

17

20G-06-12340

KNOB

17

20G-06-12321

SWITCH

18

203-06-51120

LIGHTER,CIGARETTES

18

195-822-6151

LIGHTER,CIGARETTES

19

01220-40408

SCREW

20

01601-20410

WASHER,SPRING

21

205-06-51290

CONDENSER

22

01010-50816

BOLT

23

01602-20825

WASHER,SPRING

24

09415-00706

CAP
