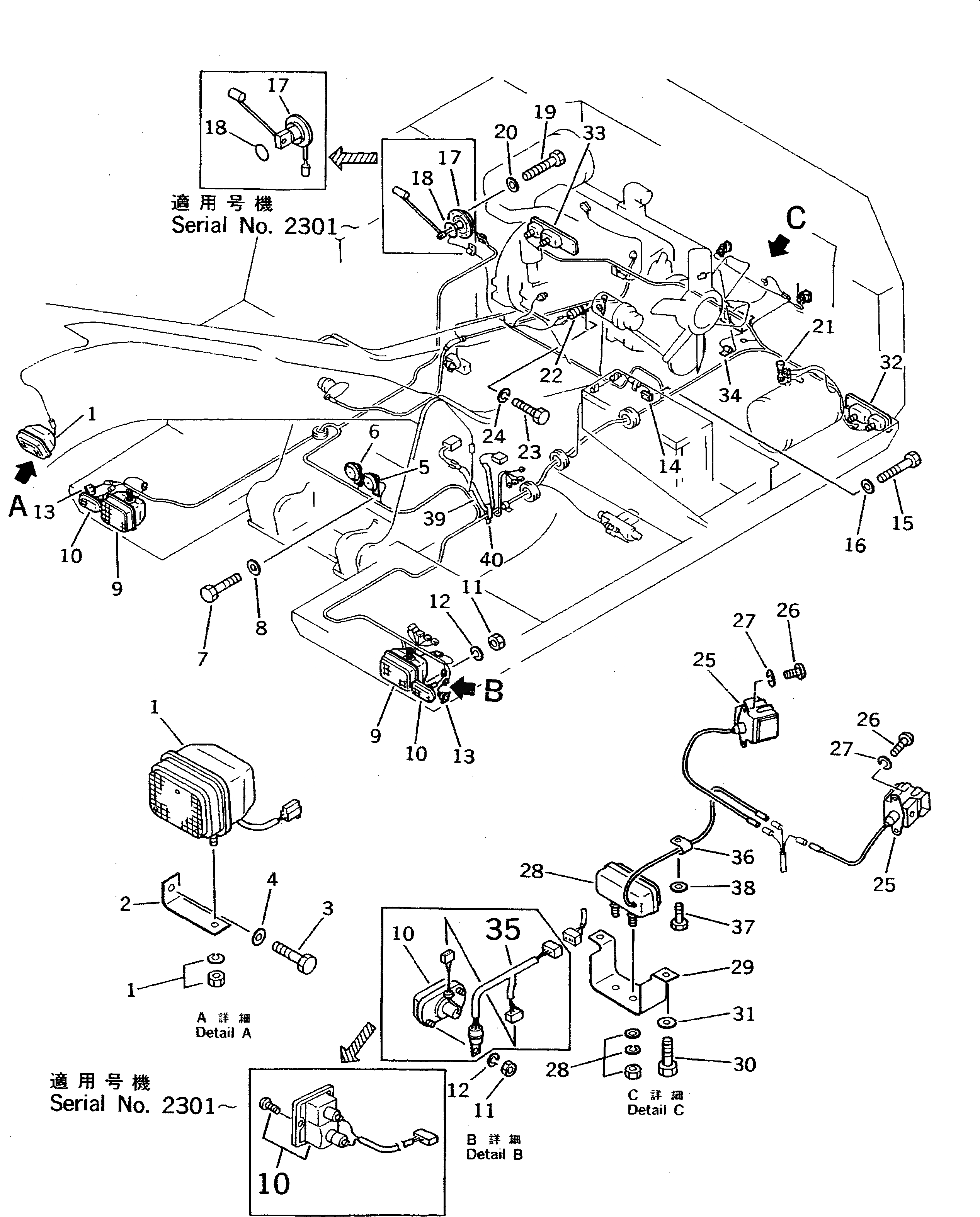

Запчасти Komatsu PW100-3 ЭЛЕКТРИКА (/)(№8-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

17A-06-17940

LAMP ASS'Y

1

17A-06-17970

BULB, 70W

1

22W-06-12381

LAMP ASS'Y,WORK

1

22W-06-12170

BULB

2

203-06-41130

BRACKET

3

01010-51430

BOLT

4

01643-31445

WASHER

5

08160-52400

HORN

6

08160-52410

HORN

6

205-06-64430

HORN

7

01010-50810

BOLT

8

01641-20812

WASHER

9

14S-06-11650

WORK LAMP ASS'Y

9

424-06-23230

BULB, 75/70W

9

20G-06-13351

LAMP, INDICATOR

9

23S-06-13241

BULB, 50/65W

9

20G-06-13350

LAMP,HEAD

9

20G-06-13360

BULB, 50/60W

10

20B-06-31110

LAMP ASS'Y,COMBINATION

10

20G-06-13110

LAMP ASS'Y,COMBINATION

10

IC961-4050

BULB, 25W,TURN SIGNAL

10

IC961-3210

BULB, 6W,PARKING

10

08104-12420

BULB, 25/10W,TURN SIGNAL

10

IC13G370-0011

LENS

10

IC13E110-0010

LENS

11

01580-10504

NUT

12

01601-20513

WASHER,SPRING

13

20D-06-12430

LAMP ASS'Y,SIDE WINKER

13

08102-02403

BULB, 3W

13

IC15F080-1001

LENS

14

22W-06-15861

SWITCH,LIMIT

14

22W-06-15860

SWITCH,LIMIT

15

01010-51035

BOLT

16

01643-31032

WASHER

17

7861-91-4800

SENSOR,FUEL

17

175-06-38181

SENSOR,FUEL

18

07000-02085

O-RING

19

01010-51016

BOLT

19

01010-51025

BOLT

20

01643-31032

WASHER

21

22W-44-11661

SWITCH,AIR PRESSURE

22

08165-31000

BUZZER,BACK

22

08165-22400

BUZZER,BACK

23

01010-51016

BOLT

24

01602-21030

WASHER,SPRING

25

22W-06-12390

LAMP ASS'Y,LICENSE PLATE

25

08110-12410

BULB, 12W

25

IC161140-0011

LENS

26

01220-40508

SCREW

26

01220-40512

SCREW

27

01601-20513

WASHER,SPRING

28

20B-06-11910

LAMP ASS'Y,BACK

28

08110-02410

BULB, 10W

29

20D-06-41240

BRACKET

30

01010-51020

BOLT

31

01643-31032

WASHER

32

20G-06-13210

LAMP ASS'Y,COMBINATION, L.H.

32

08105-12420

BULB, 25W,TURN SIGNAL

32

08104-12420

BULB, 25/10W,PARKING

32

IC14G037-1001

LENS

33

20G-06-13220

LAMP ASS'Y,COMBINATION, R.H.

33

08105-12420

BULB, 25W,TURN SIGNAL

33

08104-12420

BULB, 25/10W,PARKING

33

IC14G036-1001

LENS

34

08036-10814

CLIP

35

20D-06-41370

WIRE ASS'Y

35

22W-06-13450

RELAY ASS'Y

36

08036-10610

CLIP

37

01010-50816

BOLT

38

01643-30823

WASHER

39

20D-06-41350

WIRE,(FOR STEERING AUTO SELECTOR)

40

08034-00414

BAND,(FOR STEERING AUTO SELECTOR)

40

08034-00414

BAND,(FOR STEERING AUTO SELECTOR)
