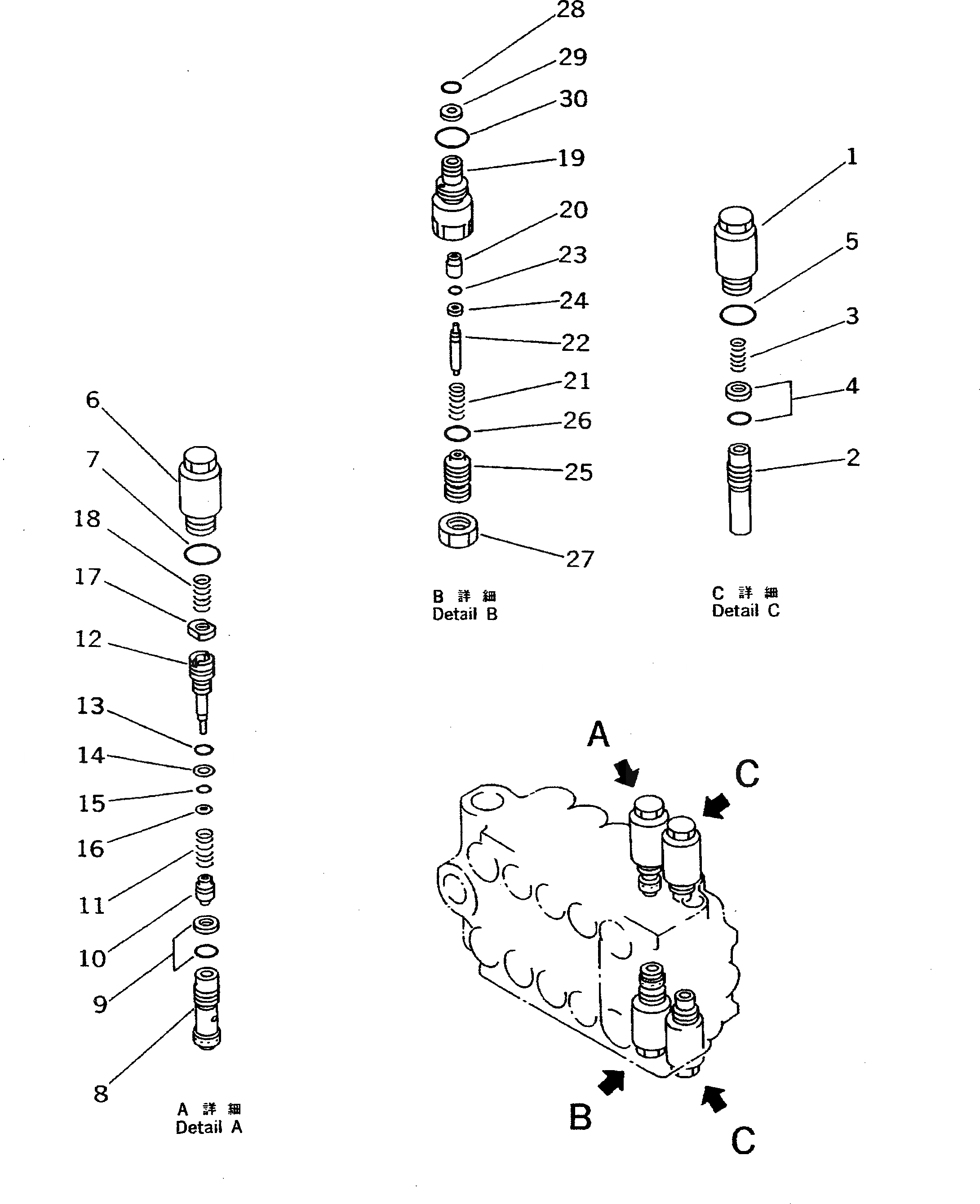

Запчасти Komatsu PW100-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-85-31002

CONTROL VALVE ASS'Y,L.H.

|$1

700-85-31001

CONTROL VALVE ASS'Y,L.H.

|$2

700-85-31000

CONTROL VALVE ASS'Y,L.H.

|$4

700-81-81000

VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-80-62250

SPRING

4

SEAL

5

07002-03034

O-RING

|$10

700-81-61002

VALVE ASS'Y,SAFETY

|$11

700-81-61001

VALVE ASS'Y,SAFETY

6

700-80-62310

SLEEVE

7

07002-03034

O-RING

8

VALVE

9

SEAL

10

POPPET

11

SPRING

11

SPRING

12

PISTON

13

O-RING

14

RING,BACK-UP

15

O-RING

16

SEAL

17

NUT

17

NUT

18

700-80-62250

SPRING

|$27

700-81-71001

SAFETY VALVE ASS'Y

19

SLEEVE

20

POPPET

21

SPRING

22

PISTON

23

O-RING

24

SEAL

25

SCREW

26

O-RING

27

NUT

28

700-22-11410

O-RING

29

700-80-64220

RING,BACK-UP

30

07002-03034

O-RING
