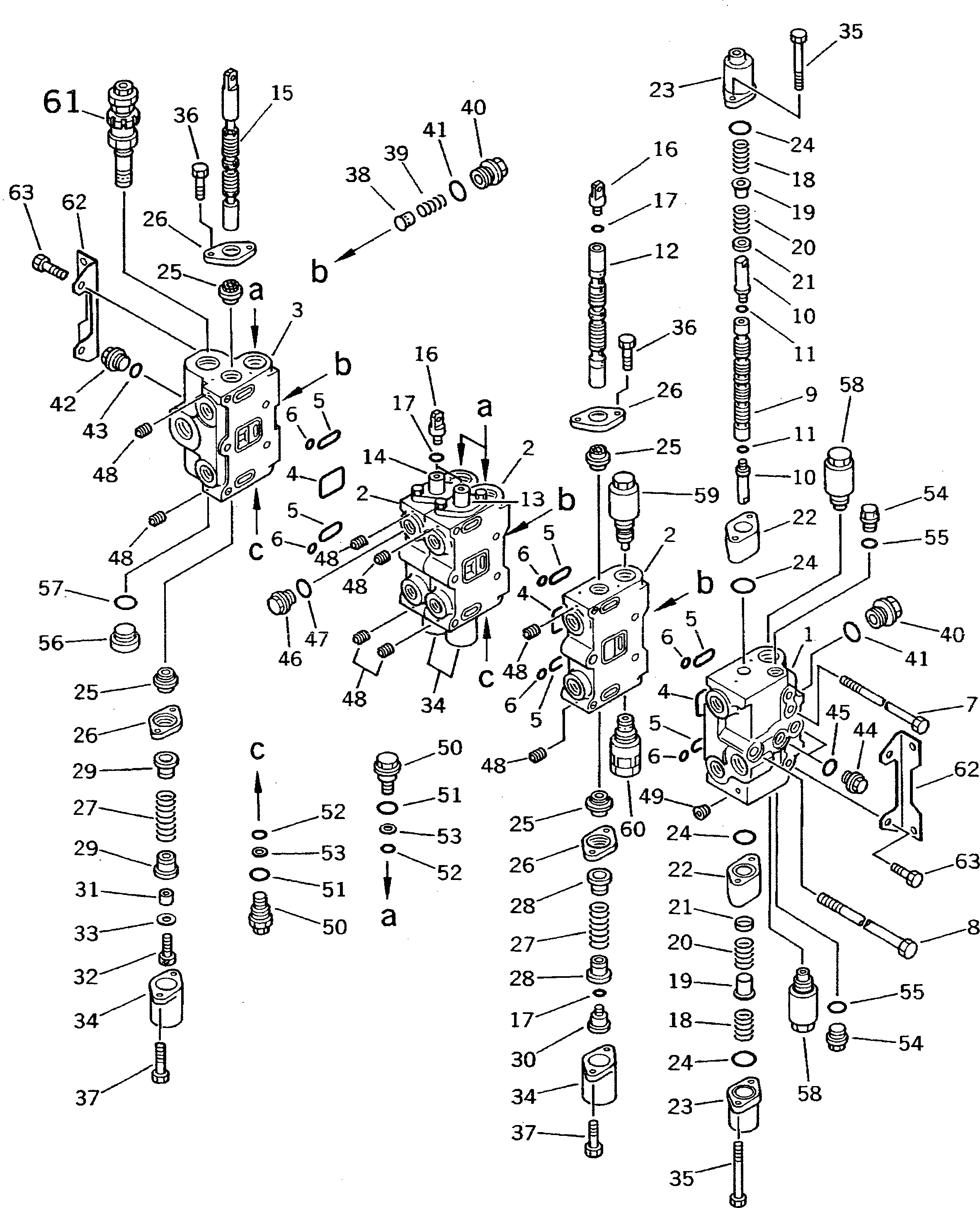

Запчасти Komatsu PW100-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
700-85-31002
CONTROL VALVE ASS'Y,L.H.
|$1
700-85-31001
CONTROL VALVE ASS'Y,L.H.
|$2
700-85-31000
CONTROL VALVE ASS'Y,L.H.
1
COVER,VALVE
1
COVER,VALVE
2
BLOCK,VALVE
2
BLOCK,VALVE
3
BODY,VALVE
3
BODY,VALVE
4
07000-13050
O-RING
5
07000-03038
O-RING
5
07000-03030
O-RING
6
07000-01007
O-RING
7
700-85-11111
BOLT
8
700-84-13210
BOLT
9
SPOOL
9
SPOOL
10
700-84-14950
JOINT
11
07002-11223
O-RING
12
SPOOL
13
SPOOL
13
SPOOL
14
SPOOL
15
SPOOL
15
SPOOL
16
700-84-11870
JOINT
17
07002-11223
O-RING
18
700-84-14920
SPRING
19
700-84-14940
RETAINER
20
700-84-14910
SPRING
21
700-84-13781
RETAINER
22
700-84-14931
PLATE
23
700-84-12510
CASE
24
700-84-11240
O-RING
25
700-84-13910
SEAL
26
700-84-13891
PLATE
27
700-84-11650
SPRING
28
700-84-13721
RETAINER
29
700-84-13711
RETAINER
30
700-84-11881
PLUG
31
700-84-11641
COLLAR
32
01252-30830
BOLT
33
01643-30823
WASHER
34
700-84-11390
COVER
35
01252-30650
BOLT
36
01252-30612
BOLT
37
01252-30625
BOLT
38
700-42-31460
VALVE
39
700-42-31470
SPRING
40
700-84-11320
PLUG
41
07002-13034
O-RING
42
700-22-11370
PLUG
43
07002-12434
O-RING
44
709-30-62150
PLUG
45
07002-02034
O-RING
46
700-22-11370
PLUG
47
07002-12434
O-RING
48
706-86-51170
PLUG
49
07043-70108
PLUG
50
700-84-13960
PLUG
51
07002-03034
O-RING
52
700-22-11410
O-RING
53
700-80-64220
RING,BACK-UP
54
709-30-62150
PLUG
55
07002-02034
O-RING
56
07040-13316
PLUG
57
07002-13334
O-RING
58
700-81-81000
VALVE ASS'Y,SUCTION
59
700-81-61002
VALVE ASS'Y,SUCTION AND SAFETY
59
700-81-61001
VALVE ASS'Y,SUCTION AND SAFETY
60
700-81-71001
SAFETY VALVE ASS'Y
61
700-87-58000
VALVE ASS'Y
62
700-84-11330
BRACKET
63
01010-51020
BOLT
Выбрано товаров: 74
