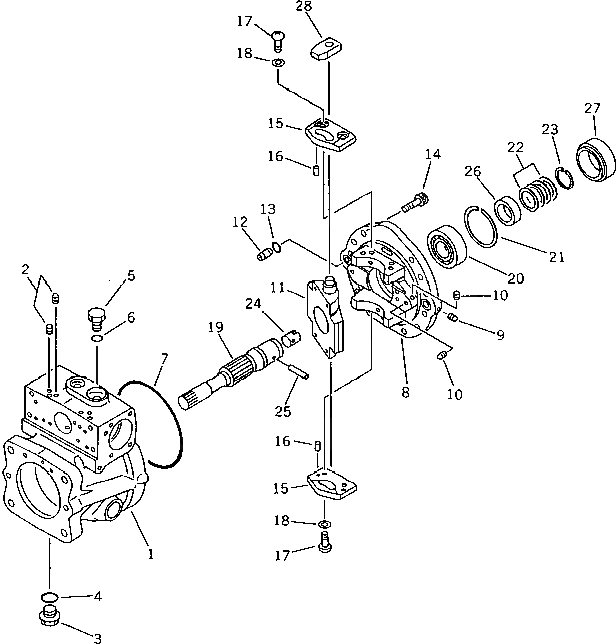

Запчасти Komatsu PW100-3 ГИДР. НАСОС.¤ ЗАДН. (/) (БЕЗ OLSS) (МОРОЗОУСТОЙЧИВ. СПЕЦИФИКАЦИЯ.)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-23-01080

PUMP ASS'Y

|$2

708-23-11101

PUMP SUB ASS'Y

|$4

708-23-00350

CASE ASS'Y,REAR

1

CASE,REAR

2

PLUG

3

07044-12412

PLUG

4

07002-02434

O-RING

5

720-68-19870

PLUG

6

07002-01223

O-RING

7

706-73-42370

O-RING

|$12

708-23-00370

CRADLE ASS'Y,REAR

|$13

708-23-00640

CRADLE SUB ASS'Y,REAR

8

CRADLE,REAR

9

PLUG

10

PLUG

11

708-23-13410

CAM,CAM

12

708-23-12330

JOINT

13

07000-12015

O-RING

14

708-25-12350

BOLT

15

708-23-12340

PLATE

16

708-23-12370

PIN

17

708-23-12350

SCREW

18

01643-30823

WASHER

19

708-23-12720

SHAFT

20

708-23-12751

BEARING

21

708-23-12660

RING

22

708-23-05011

WASHER KIT

22

WASHER, 2.50MM

22

WASHER, 2.60MM

22

WASHER, 2.70MM

22

WASHER, 2.80MM

23

708-23-12840

RING,SNAP

24

708-23-12930

COUPLING

25

708-23-12940

PIN

26

708-23-12670

COLLAR

27

708-23-12650

RETAINER

28

708-23-14120

SLIDER
