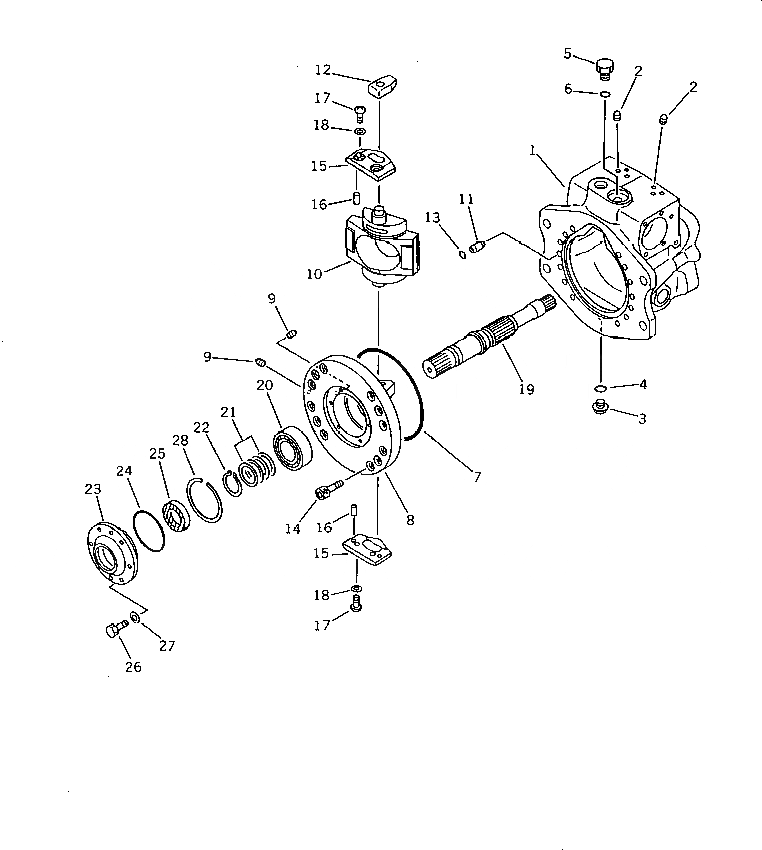

Запчасти Komatsu PW100-3 ГИДР. НАСОС.¤ ПЕРЕДН. (/) (БЕЗ OLSS) (МОРОЗОУСТОЙЧИВ. СПЕЦИФИКАЦИЯ.)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-23-01080

PUMP ASS'Y

|$2

708-23-11101

PUMP SUB ASS'Y

|$4

708-23-00340

CASE ASS'Y,FRONT

1

CASE,FRONT

2

PLUG

3

07044-12412

PLUG

4

07002-02434

O-RING

5

720-68-19870

PLUG

6

07002-01223

O-RING

7

706-73-42370

O-RING

|$12

708-23-00360

CRADLE ASS'Y,FRONT

|$13

708-23-00630

CRADLE SUB ASS'Y,FRONT

8

CRADLE,FRONT

9

PLUG

10

708-23-13410

CAM,CAM

11

708-23-12330

JOINT

12

708-23-14120

SLIDER

13

07000-12015

O-RING

14

708-25-12350

BOLT

15

708-23-12340

PLATE

16

708-23-12370

PIN

17

708-23-12350

SCREW

18

01643-30823

WASHER

19

708-23-12711

SHAFT

20

708-23-12751

BEARING

21

708-23-05011

WASHER KIT

21

WASHER, 2.50MM

21

WASHER, 2.60MM

21

WASHER, 2.70MM

21

WASHER, 2.80MM

22

708-23-12840

RING,SNAP

23

708-23-12851

HOUSING

24

07000-02065

O-RING

25

708-23-12860

SEAL,OIL

26

01010-30616

BOLT

27

01643-30623

WASHER

28

708-23-12660

RING
