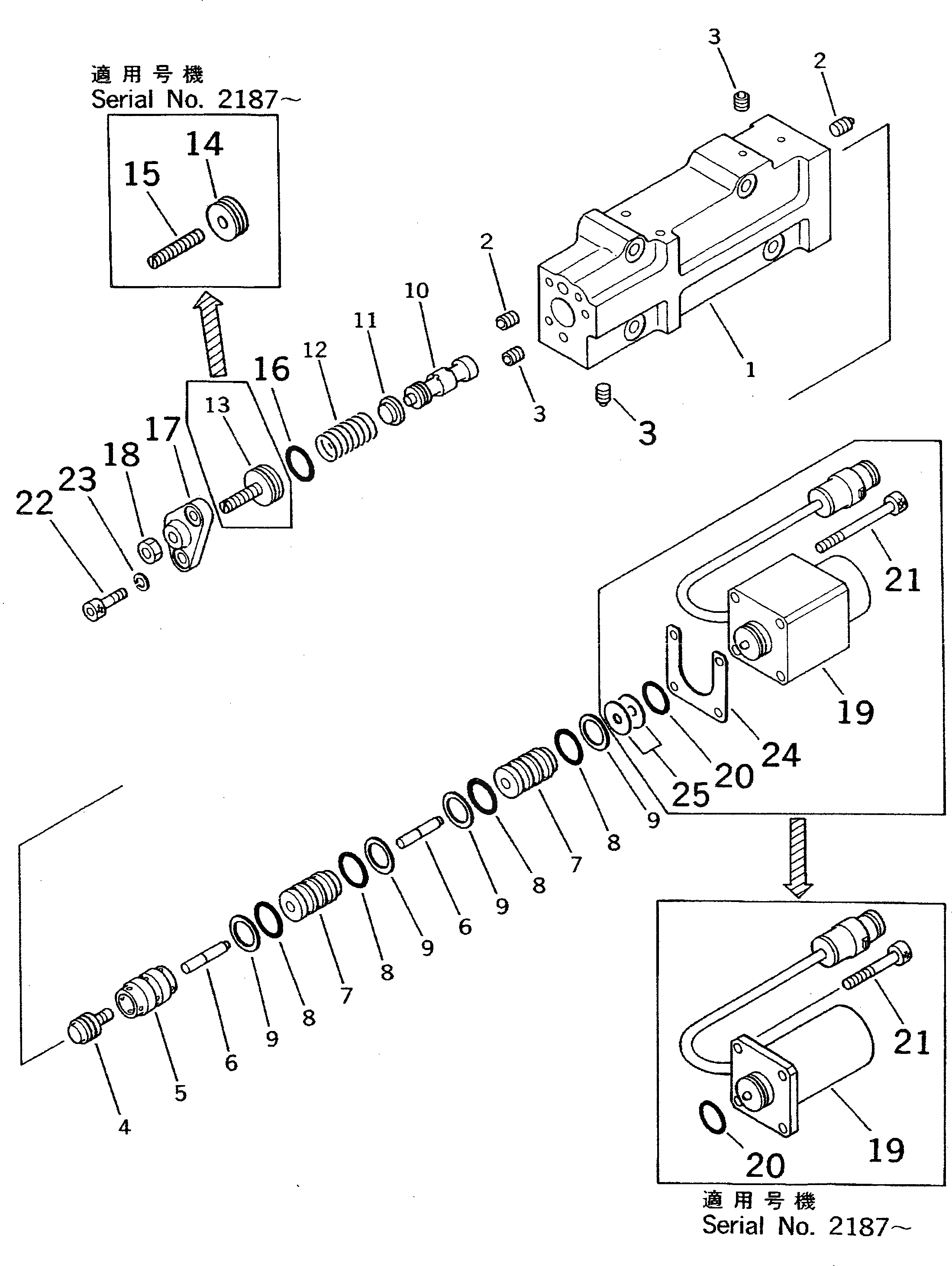

Запчасти Komatsu PW100-3 ГТР РЕГУЛИР. УПРАВЛЯЮЩ. КЛАПАН (С OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-23-01070

PUMP ASS'Y (HPV55+55)

|$1

708-23-01032

PUMP ASS'Y (HPV55+55)

|$2

708-23-01030

PUMP ASS'Y (HPV55+55)

|$3

708-23-10300

PUMP ASS'Y (HPV55+55)

|$5

708-23-07121

SERVO VALVE ASS'Y,FRONT

|$6

708-23-07120

SERVO VALVE ASS'Y,FRONT

|$7

708-23-15300

SERVO VALVE ASS'Y,FRONT

|$9

708-23-07720

VALVE ASS'Y,T.V.C

|$10

708-23-18300

VALVE ASS'Y,T.V.C

|$11

708-23-07051

BODY ASS'Y

|$12

708-23-07050

BODY ASS'Y

1

BODY

1

BODY

2

PLUG

3

HOLDER

3

PLUG

4

708-23-18120

PISTON

5

708-23-18130

SLEEVE

6

708-25-18120

PISTON

6

708-23-18140

PISTON

7

708-23-18150

SLEEVE

8

07000-12016

O-RING

9

07001-02016

RING,BACK-UP

10

708-23-18161

SPOOL

11

708-23-18170

SEAT

12

708-23-18181

SPRING

13

708-23-15140

PLUG

14

708-23-15160

PLUG

15

708-25-15340

SCREW

16

07000-02018

O-RING

17

708-23-18210

COVER

18

01580-10806

NUT

19

708-23-18221

SOLENOID ASS'Y

19

708-23-18220

SOLENOID ASS'Y

20

07000-02016

O-RING

21

708-23-18250

BOLT

21

720-68-19750

BOLT

22

708-25-15320

BOLT

22

01252-30616

BOLT

23

01602-20619

WASHER,SPRING

24

708-25-18570

SHIM, 0.50MM

25

708-25-18580

SHIM, 0.50MM
