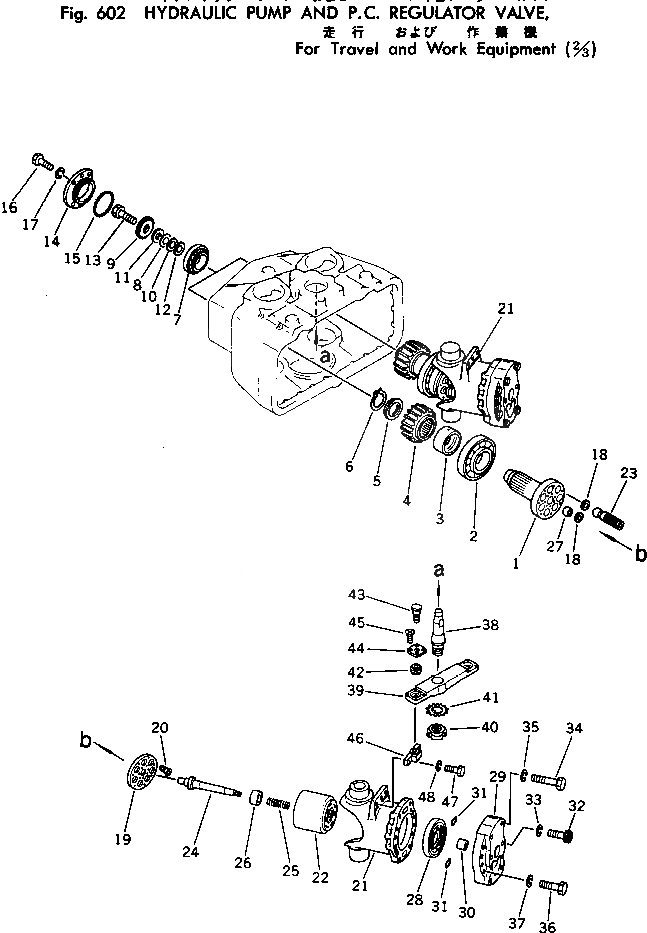

Запчасти Komatsu PW100-1 ГИДР. НАСОС. И P.C. РЕГУЛИР. КЛАПАН¤ ДЛЯ ХОД И РАБОЧ. ОБОРУД-Е (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-66-14201

PUMP ASS'Y

|$1

706-66-14200

PUMP ASS'Y

|$2

706-66-42001

PUMP SUB ASS'Y

|$3

706-66-42000

PUMP SUB ASS'Y

1

SHAFT,DRIVE

2

BEARING

3

RING

4

GEAR

5

SPACER

6

RING

7

BEARING

8

SHIM

9

PLATE

10

SHIM

11

SPACER

12

SHIM

13

BOLT

14

706-66-40420

COVER

15

706-66-40430

O-RING

16

01010-30825

BOLT

17

01602-00825

WASHER,SPRING

18

HOLDER

19

RETAINER

20

SCREW

21

CASING,CYLINDER

22

BLOCK,CYLINDER

23

PISTON SUB ASS'Y

24

SHAFT,CENTER

25

SPRING

26

RING,CENTER

27

BALL,CENTER

28

PLATE,VALVE

|$32

COVER ASS'Y

29

COVER,END

30

BUSHING

30

BEARING

31

O-RING

32

BOLT

33

WASHER,SPRING

34

BOLT

35

WASHER,SPRING

36

BOLT

37

WASHER,SPRING

38

ROD

39

LINK

40

NUT,LOCK

41

WASHER

42

BEARING

43

PIN

44

HOLDER,BEARING

45

SCREW

46

BRACKET

47

BOLT

48

WASHER,SPRING
